Chapter 8 Remote Control

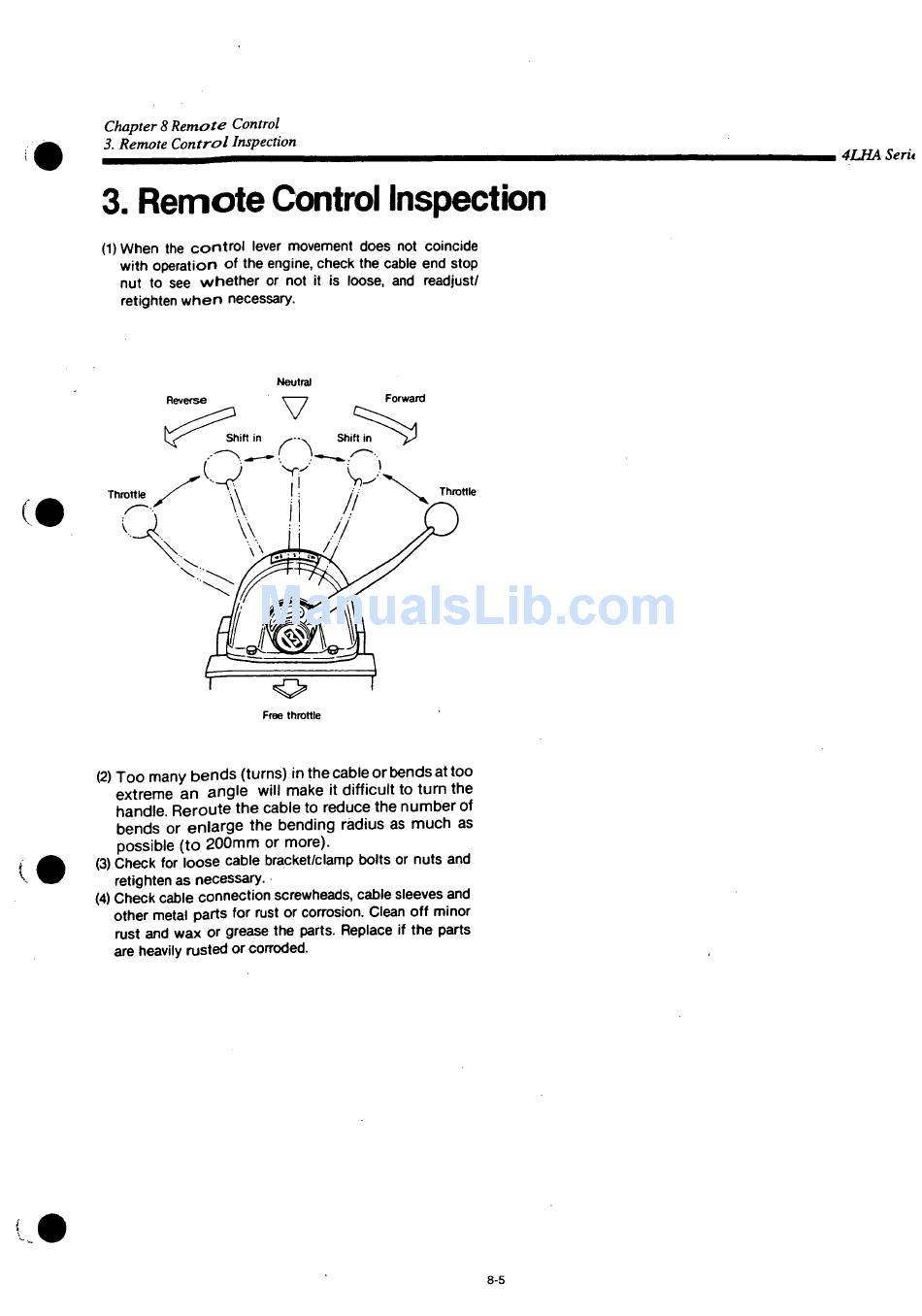

3. Remote Control Inspection

3. Remote Control Inspection
(1) When the control lever movement does not coincide
with operation of the engine, check the cable end stop
nut to see whether or not it is loose, and readjust/
retighten when necessary.
Reverse
Shitt in
Free throttle
(2) Too many bends (turns) in the cable or bends at too
extreme an angle will make it difficult to turn the
handle. Reroute the cable to reduce the number of
bends or enlarge the bending radius as much as
possible (to 200mm or more).
(3) Check for loose cable bracket/clamp bolts or nuts and
retighten as necessary.
(4) Check cable connection screwheads, cable sleeves and
other metal parts for rust or corrosion. Clean off minor
rust and wax or grease the parts. Replace if the parts
are heavily rusted or corroded.
Neutral
V
Forward
f " ^
S h i , , i n
Throttle
8-5
4LHA Seri,
