Chapter 7 Reduction and Reversing Gear

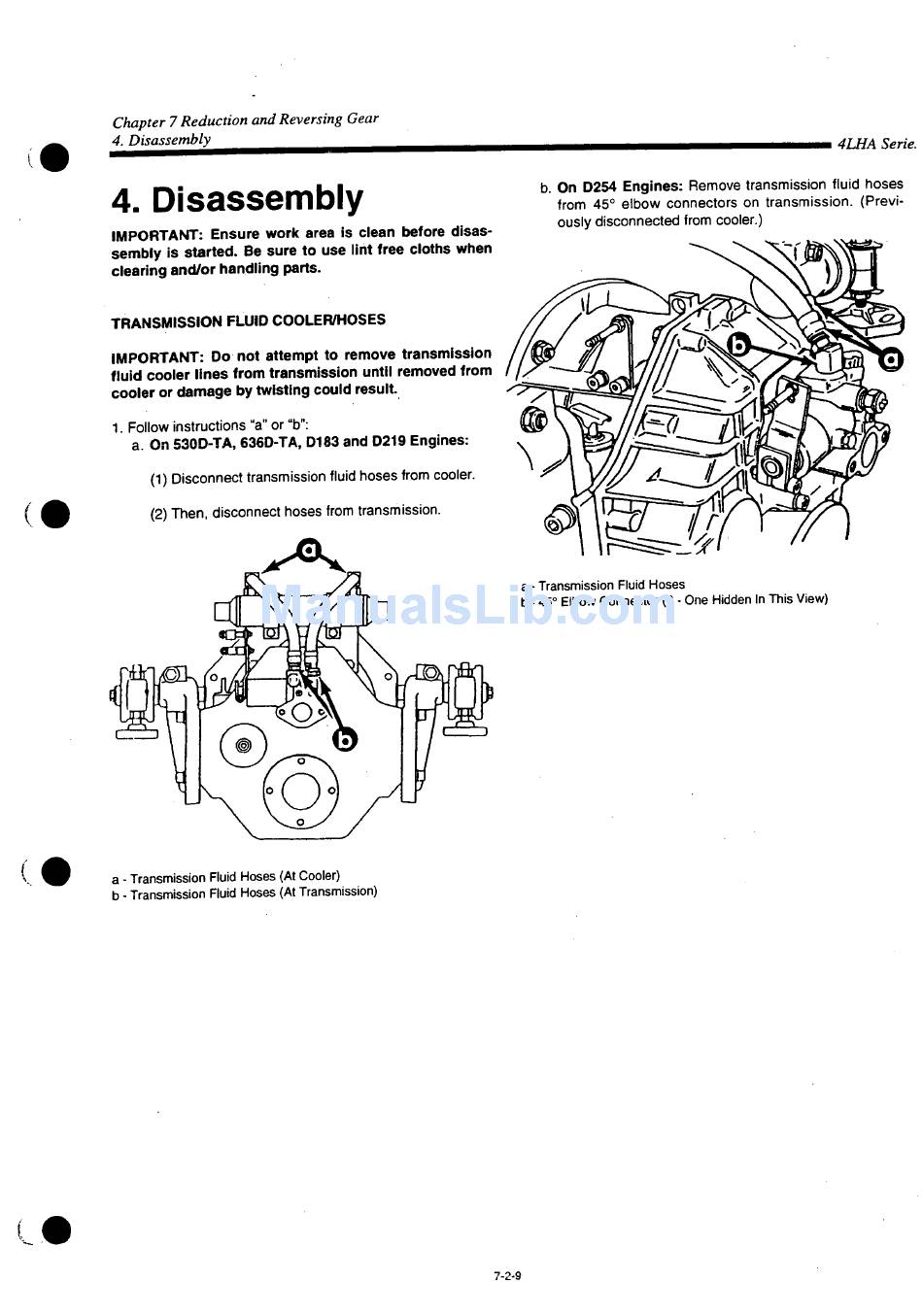

4. Disassembly
4. Disassembly
IMPORTANT: Ensure work area is clean before disas-
sembly is started. Be sure to use lint free cloths when
clearing and/or handling parts.
TRANSMISSION FLUID COOLER/HOSES
IMPORTANT: Do not attempt to remove transmission
fluid cooler lines from transmission until removed from
cooler or damage by twisting could result.
1. Follow instructions "a" or "b":
a. On 530D-TA, 636D-TA, D183 and D219 Engines:
(1) Disconnect transmission fluid hoses from cooler.
(2) Then, disconnect hoses from transmission.
a - Transmission Fluid Hoses (At Cooler)
b - Transmission Fluid Hoses (At Transmission)
b. On D254 Engines: Remove transmission fluid hoses
from 45° elbow connectors on transmission. (Previ-
ously disconnected from cooler.)
a - Transmission Fluid Hoses
b - 45° Elbow Connector (2 - One Hidden In This View)
