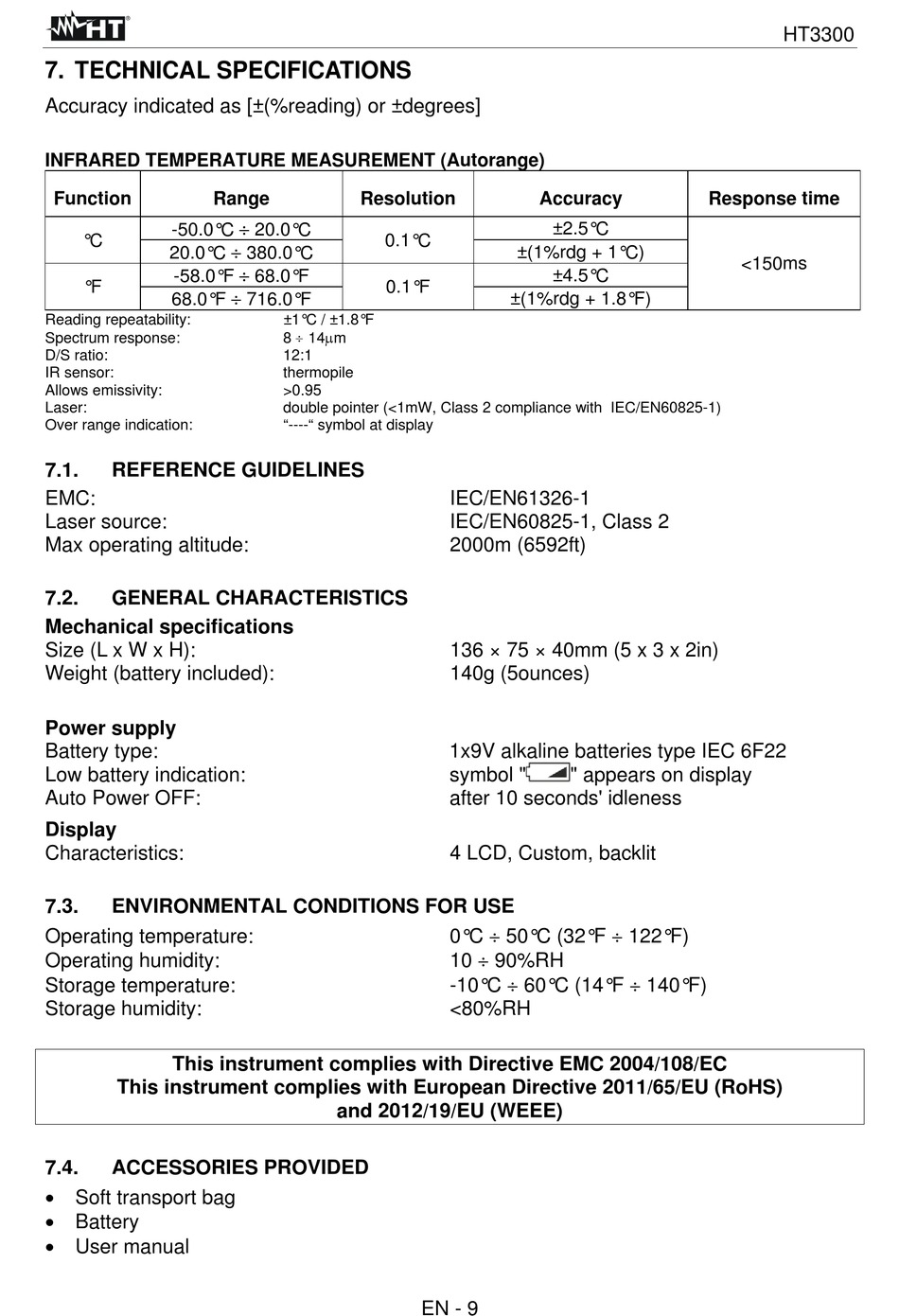

7. TECHNICAL SPECIFICATIONS

Accuracy indicated as [±(%reading) or ±degrees]
INFRARED TEMPERATURE MEASUREMENT (Autorange)
Function
Range
-50.0°C  20.0°C
°C
20.0°C  380.0°C
-58.0°F  68.0°F
°F
68.0°F  716.0°F
Reading repeatability:
Spectrum response:
D/S ratio:
IR sensor:
Allows emissivity:
Laser:
Over range indication:
7.1.

REFERENCE GUIDELINES

EMC:
Laser source:
Max operating altitude:
7.2.

GENERAL CHARACTERISTICS

Mechanical specifications
Size (L x W x H):
Weight (battery included):
Power supply
Battery type:
Low battery indication:
Auto Power OFF:
Display
Characteristics:
7.3.

ENVIRONMENTAL CONDITIONS FOR USE

Operating temperature:
Operating humidity:
Storage temperature:
Storage humidity:
This instrument complies with Directive EMC 2004/108/EC
This instrument complies with European Directive 2011/65/EU (RoHS)
7.4.

ACCESSORIES PROVIDED

 Soft transport bag
 Battery
 User manual
Resolution
0.1°C
0.1°F
±1°C / ±1.8°F
8  14m
12:1
thermopile
>0.95
double pointer (<1mW, Class 2 compliance with IEC/EN60825-1)
"----" symbol at display
IEC/EN61326-1
IEC/EN60825-1, Class 2
2000m (6592ft)
136 × 75 × 40mm (5 x 3 x 2in)
140g (5ounces)
1x9V alkaline batteries type IEC 6F22
symbol "
after 10 seconds' idleness
4 LCD, Custom, backlit
0°C  50°C (32°F  122°F)
10  90%RH
-10°C  60°C (14°F  140°F)
<80%RH
and 2012/19/EU (WEEE)
EN - 9
Accuracy
±2.5°C
±(1%rdg + 1°C)
±4.5°C
±(1%rdg + 1.8°F)
" appears on display
HT3300
Response time
<150ms
