2. Installation

2
I nstallation
The chapter is about the installation of the device and connecting to other
appliances, presenting also the mounting options and further assembly steps:

Mounting Options

Î
Connecting Steps
Î
UMX-HDMI-140 – User's Manual

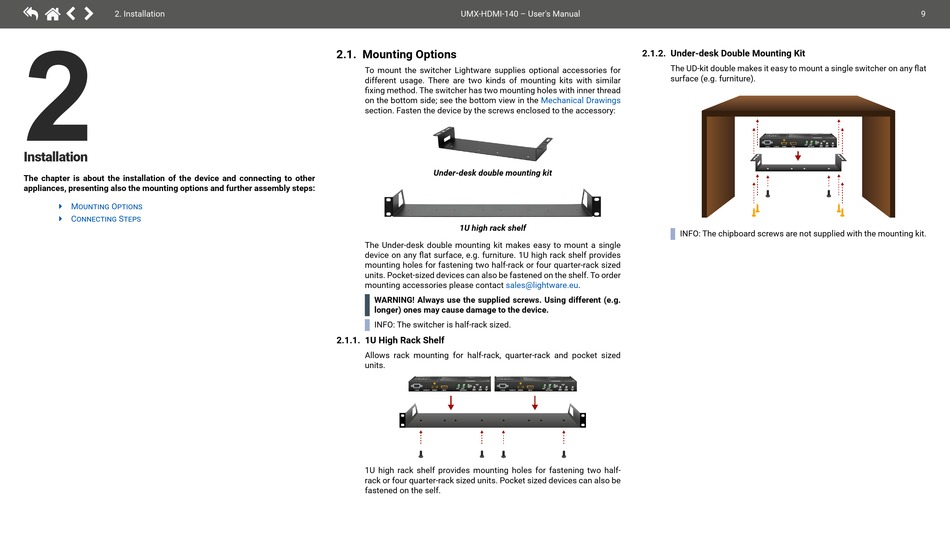

2.1. Mounting Options
To mount the switcher Lightware supplies optional accessories for
different usage. There are two kinds of mounting kits with similar
fixing method. The switcher has two mounting holes with inner thread
on the bottom side; see the bottom view in the
section. Fasten the device by the screws enclosed to the accessory:

Under-desk double mounting kit

1U high rack shelf
The Under-desk double mounting kit makes easy to mount a single
device on any flat surface, e.g. furniture. 1U high rack shelf provides
mounting holes for fastening two half-rack or four quarter-rack sized
units. Pocket-sized devices can also be fastened on the shelf. To order
mounting accessories please contact sales@lightware.eu.
WARNING! Always use the supplied screws. Using different (e.g.
longer) ones may cause damage to the device.
INFO: The switcher is half-rack sized.
2.1.1. 1U High Rack Shelf
Allows rack mounting for half-rack, quarter-rack and pocket sized
units.
VGA Audio1 Autoselect LIVE RESET
HDMI DP DP HDMI DVI-A Video
DVI-D DVI-D Audio2
VIDEO AUDIO VIDEO AUDIO SHOW
VGA IN AUDIO1 IN HDMI IN DP IN INPUT STATUS SELECT SELECT ME VGA IN AUDIO1 IN
1U high rack shelf provides mounting holes for fastening two half-
rack or four quarter-rack sized units. Pocket sized devices can also be
fastened on the self.
2.1.2. Under-desk Double Mounting Kit
The UD-kit double makes it easy to mount a single switcher on any flat
surface (e.g. furniture).
Mechanical Drawings
INFO: The chipboard screws are not supplied with the mounting kit.
VGA Audio1 Autoselect LIVE RESET
HDMI DP HDMI DP DVI-A Video
DVI-D DVI-D Audio2
VIDEO AUDIO VIDEO AUDIO SHOW
HDMI IN DP IN INPUT STATUS SELECT SELECT ME
9
VGA Audio1 LIVE RESET
HDMI HDMI Autoselect
DP DP DVI-A Video
DVI-D DVI-D Audio2
VIDEO AUDIO VIDEO AUDIO SHOW
VGA IN AUDIO1 IN HDMI IN DP IN INPUT STATUS SELECT SELECT ME
