3. Product Overview

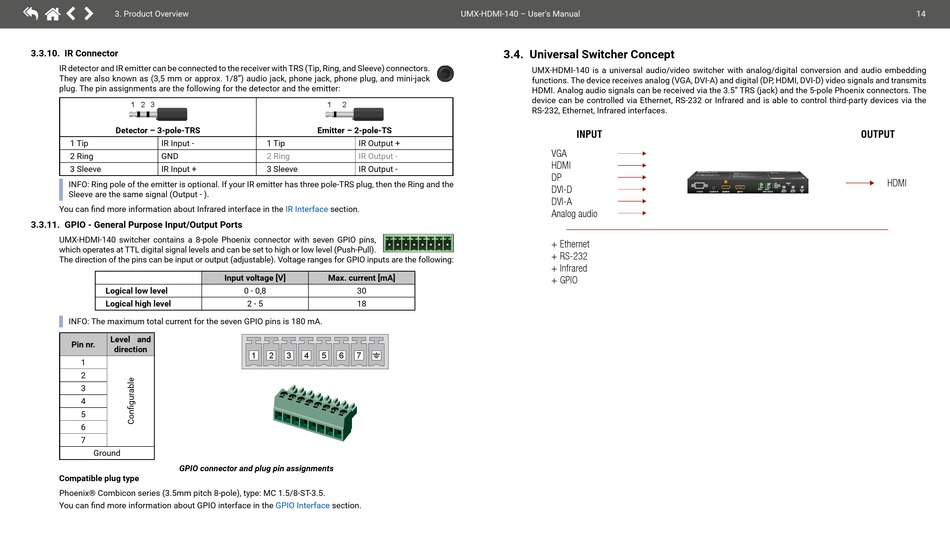

3.3.10. IR Connector
IR detector and IR emitter can be connected to the receiver with TRS (Tip, Ring, and Sleeve) connectors.
They are also known as (3,5 mm or approx. 1/8") audio jack, phone jack, phone plug, and mini-jack
plug. The pin assignments are the following for the detector and the emitter:
1 2 3
Detector – 3-pole-TRS
1 Tip IR Input -
2 Ring GND
3 Sleeve IR Input +
INFO: Ring pole of the emitter is optional. If your IR emitter has three pole-TRS plug, then the Ring and the
Sleeve are the same signal (Output - ).
You can find more information about Infrared interface in the
3.3.11. GPIO - General Purpose Input/Output Ports
UMX-HDMI-140 switcher contains a 8-pole Phoenix connector with seven GPIO pins,
which operates at TTL digital signal levels and can be set to high or low level (Push-Pull).
The direction of the pins can be input or output (adjustable). Voltage ranges for GPIO inputs are the following:
Logical low level
Logical high level
INFO: The maximum total current for the seven GPIO pins is 180 mA.
Level and
Pin nr.
direction
1
2
3
4
5
6
7
Ground
GPIO connector and plug pin assignments
Compatible plug type
Phoenix® Combicon series (3.5mm pitch 8-pole), type: MC 1.5/8-ST-3.5.
You can find more information about GPIO interface in the
1 2
Emitter – 2-pole-TS
1 Tip IR Output +
2 Ring IR Output -
3 Sleeve IR Output -
IR Interface section.
Input voltage [V] Max. current [mA]
0 - 0,8 30
2 - 5 18
1 2 3 4 5 6 7
GPIO Interface section.
UMX-HDMI-140 – User's Manual
3.4. Universal Switcher Concept
UMX-HDMI-140 is a universal audio/video switcher with analog/digital conversion and audio embedding
functions. The device receives analog (VGA, DVI-A) and digital (DP, HDMI, DVI-D) video signals and transmits
HDMI. Analog audio signals can be received via the 3.5" TRS (jack) and the 5-pole Phoenix connectors. The
device can be controlled via Ethernet, RS-232 or Infrared and is able to control third-party devices via the
RS-232, Ethernet, Infrared interfaces.
INPUT
VGA
HDMI
DP
DVI-D
DVI-A
Analog audio
+ Ethernet
+ RS-232
+ Infrared
+ GPIO
OUTPUT
VGA Audio1 LIVE RESET
HDMI HDMI Autoselect
DP DP DVI-A Video
DVI-D DVI-D Audio2
VIDEO AUDIO
VIDEO AUDIO SHOW
VGA IN AUDIO1 IN HDMI IN DP IN INPUT STATUS SELECT SELECT ME
14
HDMI
