3. Product Overview

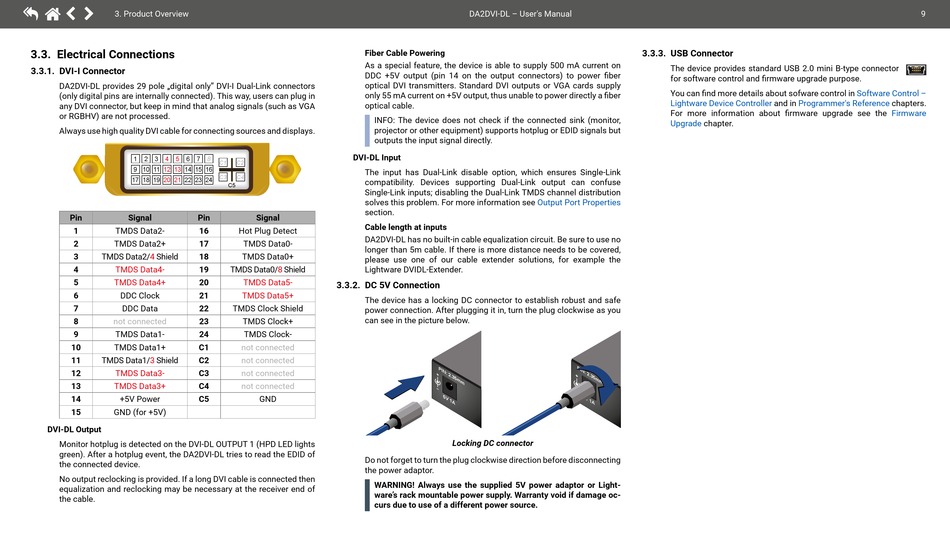

3.3. Electrical Connections
3.3.1. DVI-I Connector
DA2DVI-DL provides 29 pole „digital only" DVI-I Dual-Link connectors
(only digital pins are internally connected). This way, users can plug in
any DVI connector, but keep in mind that analog signals (such as VGA
or RGBHV) are not processed.
Always use high quality DVI cable for connecting sources and displays.
1
2
3
4
5
6
7
9 10 11
12 13
14 15 16
17 18 19
20 21
22 23 24
Pin
Signal
Pin
1
TMDS Data2-
16
2
TMDS Data2+
17
3
TMDS
Data2/4
Shield
18
4
TMDS Data4-
19
5
TMDS Data4+
20
6
DDC Clock
21
7
DDC Data
22
8
not connected
23
9
TMDS Data1-
24
10
TMDS Data1+
C1
11
TMDS
Data1/3
Shield
C2
12
TMDS Data3-
C3
13
TMDS Data3+
C4
14
+5V Power
C5
15
GND (for +5V)
DVI-DL Output
Monitor hotplug is detected on the DVI-DL OUTPUT 1 (HPD LED lights
green). After a hotplug event, the DA2DVI-DL tries to read the EDID of
the connected device.
No output reclocking is provided. If a long DVI cable is connected then
equalization and reclocking may be necessary at the receiver end of
the cable.
Fiber Cable Powering
As a special feature, the device is able to supply 500 mA current on
DDC +5V output (pin 14 on the output connectors) to power fiber
optical DVI transmitters. Standard DVI outputs or VGA cards supply
only 55 mA current on +5V output, thus unable to power directly a fiber
optical cable.
INFO: The device does not check if the connected sink (monitor,
projector or other equipment) supports hotplug or EDID signals but
outputs the input signal directly.
DVI-DL Input
8
C1
C2
The input has Dual-Link disable option, which ensures Single-Link
C3
C4
compatibility. Devices supporting Dual-Link output can confuse
C5
Single-Link inputs; disabling the Dual-Link TMDS channel distribution
solves this problem. For more information see
section.
Signal
Cable length at inputs
Hot Plug Detect
DA2DVI-DL has no built-in cable equalization circuit. Be sure to use no
TMDS Data0-
longer than 5m cable. If there is more distance needs to be covered,
TMDS Data0+
please use one of our cable extender solutions, for example the
TMDS
Data0/8
Shield
Lightware DVIDL-Extender.
TMDS Data5-
3.3.2. DC 5V Connection
TMDS Data5+
The device has a locking DC connector to establish robust and safe
TMDS Clock Shield
power connection. After plugging it in, turn the plug clockwise as you
can see in the picture below.
TMDS Clock+
TMDS Clock-
not connected
not connected
not connected
not connected
GND
Do not forget to turn the plug clockwise direction before disconnecting
the power adaptor.
WARNING! Always use the supplied 5V power adaptor or Light-
ware's rack mountable power supply. Warranty void if damage oc-
curs due to use of a different power source.
DA2DVI-DL – User's Manual
Output Port Properties
P I
P I
N :
N :
2 . 3
2 . 3
5 m
5 m
m
m
1 2
5 V
V
1 A
1 A
Locking DC connector
3.3.3. USB Connector
The device provides standard USB 2.0 mini B-type connector
for software control and firmware upgrade purpose.
You can find more details about sofware control in
Lightware Device Controller
and in
Programmer's Reference
For more information about firmware upgrade see the
Upgrade
chapter.
9
Software Control –
chapters.
Firmware
