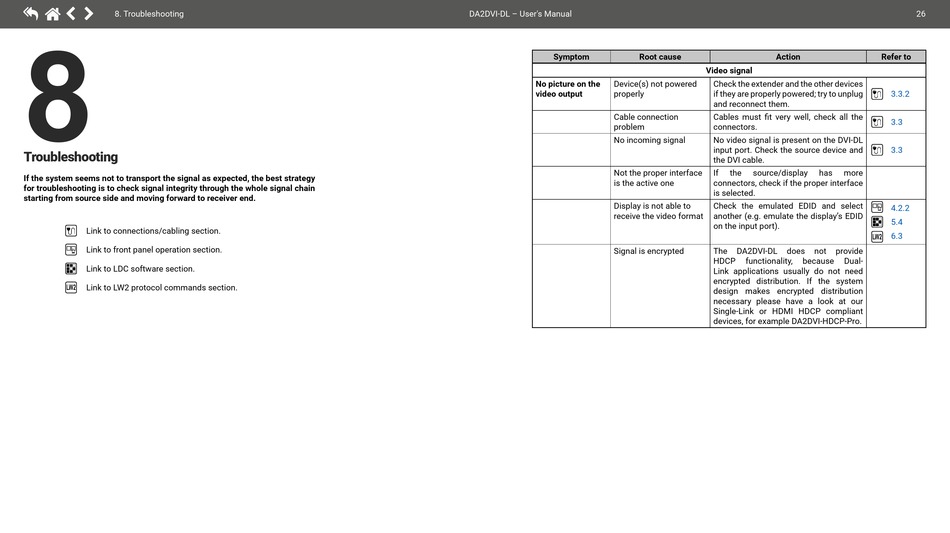

8. Troubleshooting

8
T roubleshooting
If the system seems not to transport the signal as expected, the best strategy
for troubleshooting is to check signal integrity through the whole signal chain
starting from source side and moving forward to receiver end.
Link to connections/cabling section.
Link to front panel operation section.
Link to LDC software section.
LW2 Link to LW2 protocol commands section.
DA2DVI-DL – User's Manual
Symptom Root cause
No picture on the Device(s) not powered
video output properly
Cable connection
problem
No incoming signal
Not the proper interface
is the active one
Display is not able to
receive the video format
Signal is encrypted
Action Refer to
Video signal
Check the extender and the other devices
if they are properly powered; try to unplug
and reconnect them.
Cables must fit very well, check all the
connectors.
No video signal is present on the DVI-DL
input port. Check the source device and
the DVI cable.
If the source/display has more
connectors, check if the proper interface
is selected.
Check the emulated EDID and select
another (e.g. emulate the display's EDID
on the input port).
LW2
The DA2DVI-DL does not provide
HDCP functionality, because Dual-
Link applications usually do not need
encrypted distribution. If the system
design makes encrypted distribution
necessary please have a look at our
Single-Link or HDMI HDCP compliant
devices, for example DA2DVI-HDCP-Pro.
26
3.3.2
3.3
3.3
4.2.2
5.4
6.3
