5. Software Control – Lightware Device Controller

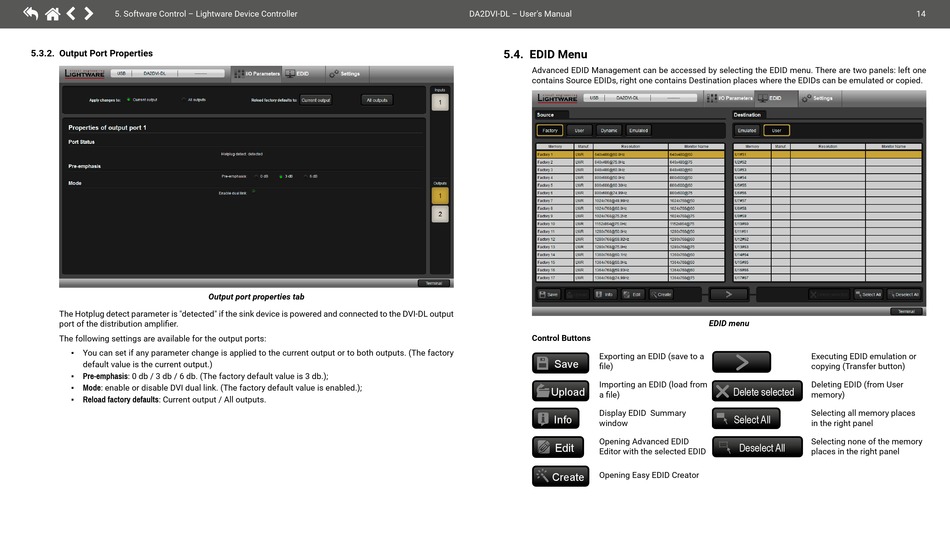

5.3.2. Output Port Properties
The Hotplug detect parameter is "detected" if the sink device is powered and connected to the DVI-DL output
port of the distribution amplifier.
The following settings are available for the output ports:
You can set if any parameter change is applied to the current output or to both outputs. (The factory
▪
default value is the current output.)
▪ Pre-emphasis: 0 db / 3 db / 6 db. (The factory default value is 3 db.);
Mode: enable or disable DVI dual link. (The factory default value is enabled.);
▪
Reload factory defaults: Current output / All outputs.
▪
Output port properties tab
DA2DVI-DL – User's Manual
5.4. EDID Menu
Advanced EDID Management can be accessed by selecting the EDID menu. There are two panels: left one
contains Source EDIDs, right one contains Destination places where the EDIDs can be emulated or copied.
A
Control Buttons
A
Exporting an EDID (save to a
Save
file)
A
Importing an EDID (load from
Upload
a file)
A
Display EDID Summary
Info
window
A
Opening Advanced EDID
Edit
Editor with the selected EDID
Opening Easy EDID Creator
Create
A

EDID menu

A
Executing EDID emulation or
copying (Transfer button)
A
Deleting EDID (from User
Delete selected
memory)
A
Selecting all memory places
Select All
in the right panel
Selecting none of the memory
Deselect All
places in the right panel
