10. Appendix

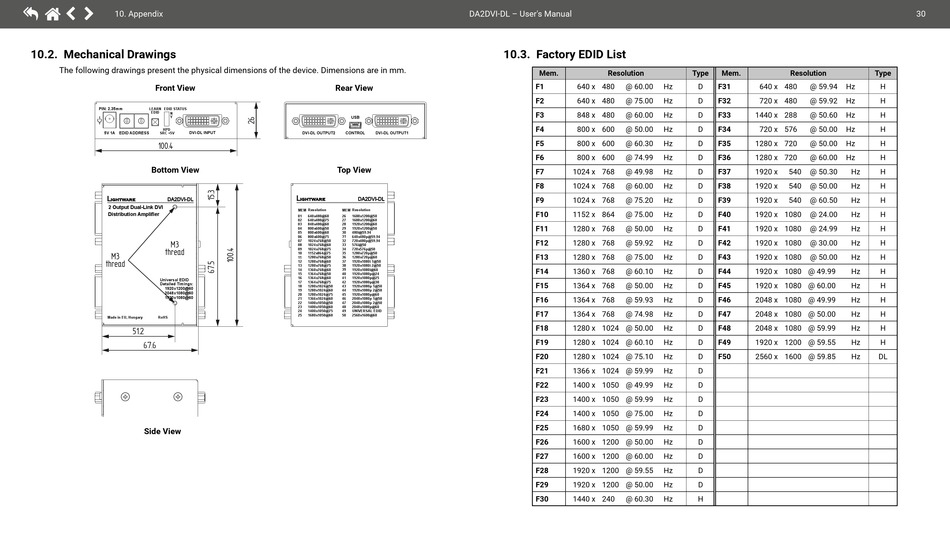

10.2. Mechanical Drawings
The following drawings present the physical dimensions of the device. Dimensions are in mm.
Front View
PIN: 2.35mm LEARN EDID STATUS
EDID
N
Y
HPD
5V 1A EDID ADDRESS SRC +5V DVI-DL INPUT
100.4
Bottom View
DA2DVI-DL
2 Output Dual-Link DVI
Distribution Amplifier
M3
thread
M3
thread
Universal EDID
Detailed Timings:
1920x1200@60
2048x1080@60
1920x1080@60
Made in EU, Hungary RoHS
51.2
67.6
Side View
DA2DVI-DL – User's Manual
Rear View
USB
DVI-DL OUTPUT2 CONTROL DVI-DL OUTPUT1
Top View
DA2DVI-DL
MEM Resolution MEM Resolution
01 640x480@60 26 1600x1200@50
02 640x480@75 27 1600x1200@60
03 848x480@60 28 1920x1200@60
04 800x600@50 29 1920x1200@50
05 800x600@60 30 480i@59.94
06 800x600@75 31 640x480p@59.94
07 1024x768@50 32 720x480p@59.94
08 1024x768@60 33 576i@50
09 1024x768@75 34 720x576p@50
10 1152x864@75 35 1280x720p@50
11 1280x768@50 36 1280x720p@60
12 1280x768@60 37 1920x1080i 1@50
13 1280x768@75 38 1920x1080i 2@50
14 1360x768@60 39 1920x1080i@60
15 1364x768@50 40 1920x1080p@24
16 1364x768@60 41 1920x1080p@25
17 1364x768@75 42 1920x1080p@30
18 43
1280x1024@50 1920x1080p 1@50
19 1280x1024@60 44 1920x1080p 2@50
20 1280x1024@75 45 1920x1080p@60
21 1366x1024@60 46 2048x1080p 1@50
22 1400x1050@50 47 2048x1080p 2@50
23 1400x1050@60 48 2048x1080p@60
24 1400x1050@75 49 UNIVERSAL EDID
25 1680x1050@60 50 2560x1600@60
10.3. Factory EDID List
Mem. Resolution
F1 640 x 480 @ 60.00 Hz
F2 640 x 480 @ 75.00 Hz
F3 848 x 480 @ 60.00 Hz
F4 800 x 600 @ 50.00 Hz
F5 800 x 600 @ 60.30 Hz
F6 800 x 600 @ 74.99 Hz
F7 1024 x 768 @ 49.98 Hz
F8 1024 x 768 @ 60.00 Hz
F9 1024 x 768 @ 75.20 Hz
F10 1152 x 864 @ 75.00 Hz
F11 1280 x 768 @ 50.00 Hz
F12 1280 x 768 @ 59.92 Hz
F13 1280 x 768 @ 75.00 Hz
F14 1360 x 768 @ 60.10 Hz
F15 1364 x 768 @ 50.00 Hz
F16 1364 x 768 @ 59.93 Hz
F17 1364 x 768 @ 74.98 Hz
F18 1280 x 1024 @ 50.00 Hz
F19 1280 x 1024 @ 60.10 Hz
F20 1280 x 1024 @ 75.10 Hz
F21 1366 x 1024 @ 59.99 Hz
F22 1400 x 1050 @ 49.99 Hz
F23 1400 x 1050 @ 59.99 Hz
F24 1400 x 1050 @ 75.00 Hz
F25 1680 x 1050 @ 59.99 Hz
F26 1600 x 1200 @ 50.00 Hz
F27 1600 x 1200 @ 60.00 Hz
F28 1920 x 1200 @ 59.55 Hz
F29 1920 x 1200 @ 50.00 Hz
F30 1440 x 240 @ 60.30 Hz
Type Mem. Resolution
D F31 640 x 480 @ 59.94 Hz
D F32 720 x 480 @ 59.92 Hz
D F33 1440 x 288 @ 50.60 Hz
D F34 720 x 576 @ 50.00 Hz
D F35 1280 x 720 @ 50.00 Hz
D F36 1280 x 720 @ 60.00 Hz
D F37 1920 x 540 @ 50.30 Hz
D F38 1920 x 540 @ 50.00 Hz
D F39 1920 x 540 @ 60.50 Hz
D F40 1920 x 1080 @ 24.00 Hz
D F41 1920 x 1080 @ 24.99 Hz
D F42 1920 x 1080 @ 30.00 Hz
D F43 1920 x 1080 @ 50.00 Hz
D F44 1920 x 1080 @ 49.99 Hz
D F45 1920 x 1080 @ 60.00 Hz
D F46 2048 x 1080 @ 49.99 Hz
D F47 2048 x 1080 @ 50.00 Hz
D F48 2048 x 1080 @ 59.99 Hz
D F49 1920 x 1200 @ 59.55 Hz
D F50 2560 x 1600 @ 59.85 Hz
D
D
D
D
D
D
D
D
D
H
30
Type
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
DL
