2. Installation
2.2. Connecting Steps

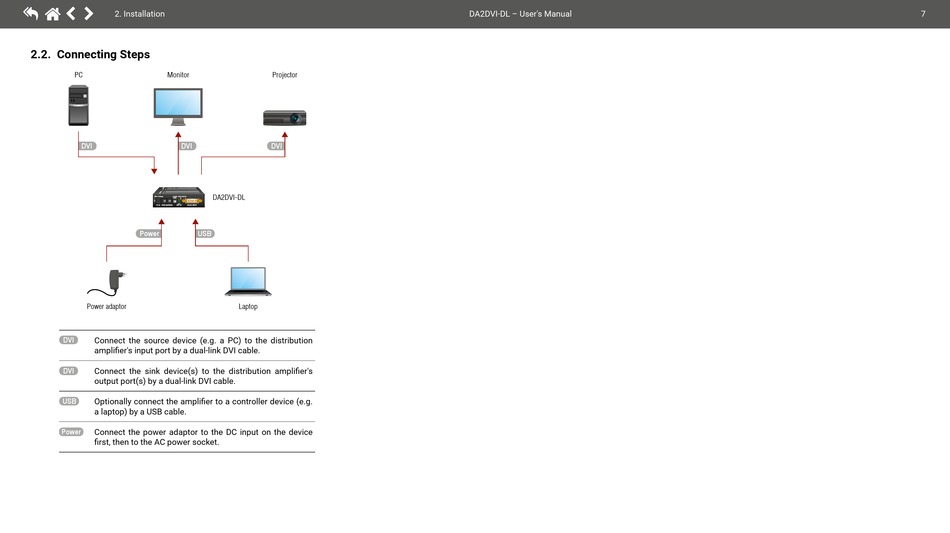

PC Monitor
DVI DVI
PIN: 2.35mm LEARN EDID STATUS
EDID N
Y
HPD
5V 1A EDID ADDRESS SRC +5V DVI-DL INPUT
Power USB
Power adaptor
DVI Connect the source device (e.g. a PC) to the distribution
amplifier's input port by a dual-link DVI cable.
DVI Connect the sink device(s) to the distribution amplifier's
output port(s) by a dual-link DVI cable.
USB Optionally connect the amplifier to a controller device (e.g.
a laptop) by a USB cable.
Power Connect the power adaptor to the DC input on the device
first, then to the AC power socket.
Projector
DVI
DA2DVI-DL
Laptop
DA2DVI-DL – User's Manual 7
