4. Operation

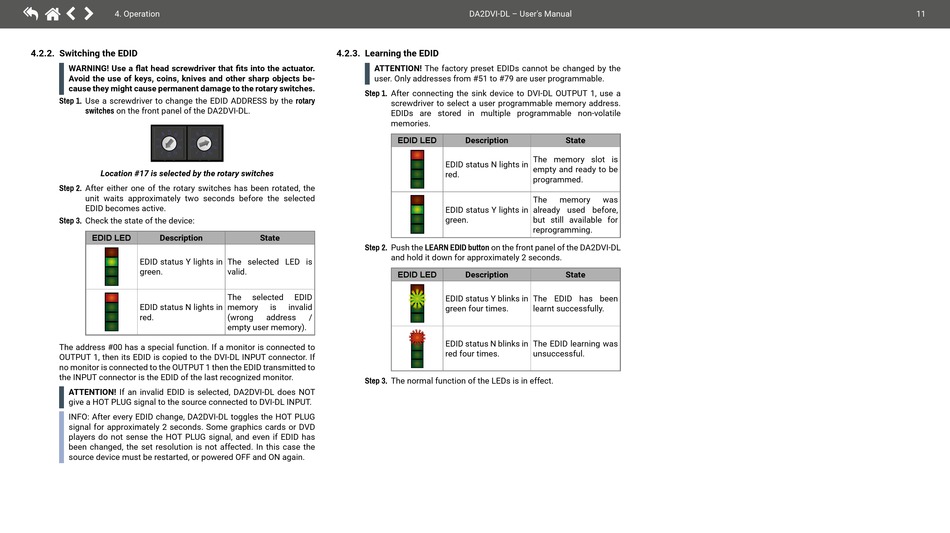

4.2.2. Switching the EDID
WARNING! Use a flat head screwdriver that fits into the actuator.
Avoid the use of keys, coins, knives and other sharp objects be-
cause they might cause permanent damage to the rotary switches.
Step 1. Use a screwdriver to change the EDID ADDRESS by the rotary
switches on the front panel of the DA2DVI-DL.
Location #17 is selected by the rotary switches
Step 2. After either one of the rotary switches has been rotated, the
unit waits approximately two seconds before the selected
EDID becomes active.
Step 3. Check the state of the device:
Description
EDID LED
EDID status Y lights in
green.
EDID status N lights in
red.
The address #00 has a special function. If a monitor is connected to
OUTPUT 1, then its EDID is copied to the DVI-DL INPUT connector. If
no monitor is connected to the OUTPUT 1 then the EDID transmitted to
the INPUT connector is the EDID of the last recognized monitor.
ATTENTION! If an invalid EDID is selected, DA2DVI-DL does NOT
give a HOT PLUG signal to the source connected to DVI-DL INPUT.
INFO: After every EDID change, DA2DVI-DL toggles the HOT PLUG
signal for approximately 2 seconds. Some graphics cards or DVD
players do not sense the HOT PLUG signal, and even if EDID has
been changed, the set resolution is not affected. In this case the
source device must be restarted, or powered OFF and ON again.
4.2.3. Learning the EDID
ATTENTION! The factory preset EDIDs cannot be changed by the
user. Only addresses from #51 to #79 are user programmable.
Step 1. After connecting the sink device to DVI-DL OUTPUT 1, use a
screwdriver to select a user programmable memory address.
EDIDs are stored in multiple programmable non-volatile
memories.
EDID LED
State
Step 2. Push the LEARN EDID button on the front panel of the DA2DVI-DL
and hold it down for approximately 2 seconds.
The selected LED is
valid.
EDID LED
The selected EDID
memory is invalid
(wrong address /
empty user memory).
Step 3. The normal function of the LEDs is in effect.
DA2DVI-DL – User's Manual
Description State
The memory slot is
EDID status N lights in
empty and ready to be
red.
programmed.
The memory was
EDID status Y lights in already used before,
green. but still available for
reprogramming.
Description State
EDID status Y blinks in The EDID has been
green four times. learnt successfully.
EDID status N blinks in The EDID learning was
red four times. unsuccessful.
