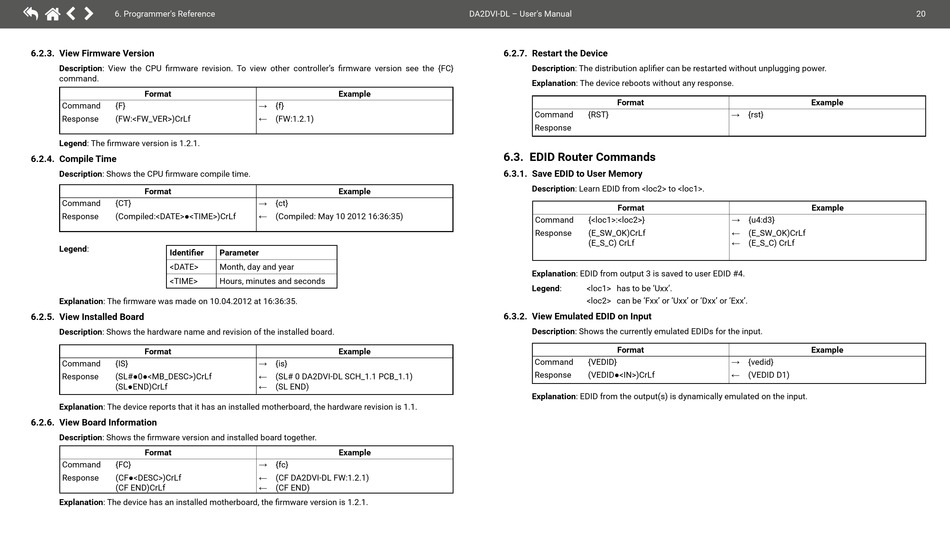

6. Programmer's Reference
6.2.3. View Firmware Version
Description: View the CPU firmware revision. To view other controller's firmware version see the {FC}
command.
Format
Command {F}
Response (FW:<FW_VER>)CrLf
Legend: The firmware version is 1.2.1.
6.2.4. Compile Time
Description: Shows the CPU firmware compile time.
Format
Command {CT}
Response (Compiled:<DATE>●<TIME>)CrLf
Legend:
Identifier
<DATE>
<TIME>
Explanation: The firmware was made on 10.04.2012 at 16:36:35.
6.2.5. View Installed Board
Description: Shows the hardware name and revision of the installed board.
Format
Command {IS}
Response (SL#●0●<MB_DESC>)CrLf
(SL●END)CrLf
Explanation: The device reports that it has an installed motherboard, the hardware revision is 1.1.
6.2.6. View Board Information
Description: Shows the firmware version and installed board together.
Format
Command {FC}
Response (CF●<DESC>)CrLf
(CF END)CrLf
Explanation: The device has an installed motherboard, the firmware version is 1.2.1.
Example
→ {f}
← (FW:1.2.1)
Example
→ {ct}
← (Compiled: May 10 2012 16:36:35)
Parameter
Month, day and year
Hours, minutes and seconds
Example
→ {is}
(SL# 0 DA2DVI-DL SCH_1.1 PCB_1.1)
←
(SL END)
←
Example
→ {fc}
(CF DA2DVI-DL FW:1.2.1)
←
(CF END)
←
DA2DVI-DL – User's Manual
6.2.7. Restart the Device
Description: The distribution aplifier can be restarted without unplugging power.
Explanation: The device reboots without any response.
Format
Command {RST}
Response
6.3. EDID Router Commands
6.3.1. Save EDID to User Memory
Description: Learn EDID from <loc2> to <loc1>.
Format
Command {<loc1>:<loc2>}
Response (E_SW_OK)CrLf
(E_S_C) CrLf
Explanation: EDID from output 3 is saved to user EDID #4.
Legend: <loc1> has to be 'Uxx'.
<loc2> can be 'Fxx' or 'Uxx' or 'Dxx' or 'Exx'.
6.3.2. View Emulated EDID on Input
Description: Shows the currently emulated EDIDs for the input.
Format
Command {VEDID}
Response (VEDID●<IN>)CrLf
Explanation: EDID from the output(s) is dynamically emulated on the input.
Example
→ {rst}
Example
→ {u4:d3}
← (E_SW_OK)CrLf
← (E_S_C) CrLf
Example
→ {vedid}
← (VEDID D1)
20
