5. Software Control – Lightware Device Controller

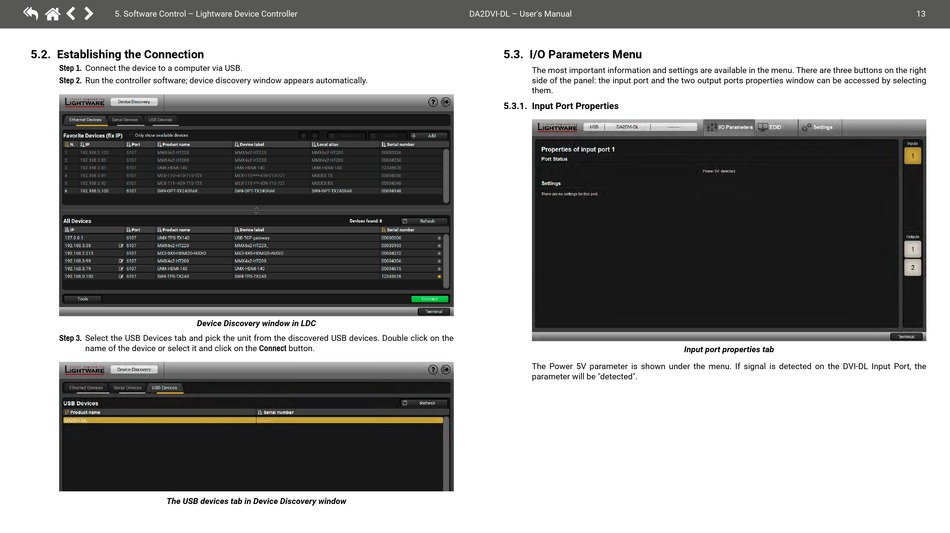

5.2. Establishing the Connection
Step 1. Connect the device to a computer via USB.
Step 2. Run the controller software; device discovery window appears automatically.
Device Discovery window in LDC
Step 3. Select the USB Devices tab and pick the unit from the discovered USB devices. Double click on the
name of the device or select it and click on the Connect button.
The USB devices tab in Device Discovery window
DA2DVI-DL – User's Manual
5.3. I/O Parameters Menu
The most important information and settings are available in the menu. There are three buttons on the right
side of the panel: the input port and the two output ports properties window can be accessed by selecting
them.
5.3.1. Input Port Properties
The Power 5V parameter is shown under the menu. If signal is detected on the DVI-DL Input Port, the
parameter will be "detected".
Input port properties tab
13
