2. Installation

2
I nstallation
The chapter is about the installation of the device and connecting to other
appliances, presenting also the mounting options and further assembly steps:

Mounting Options

Î
Connecting Steps
Î
DA2DVI-DL – User's Manual

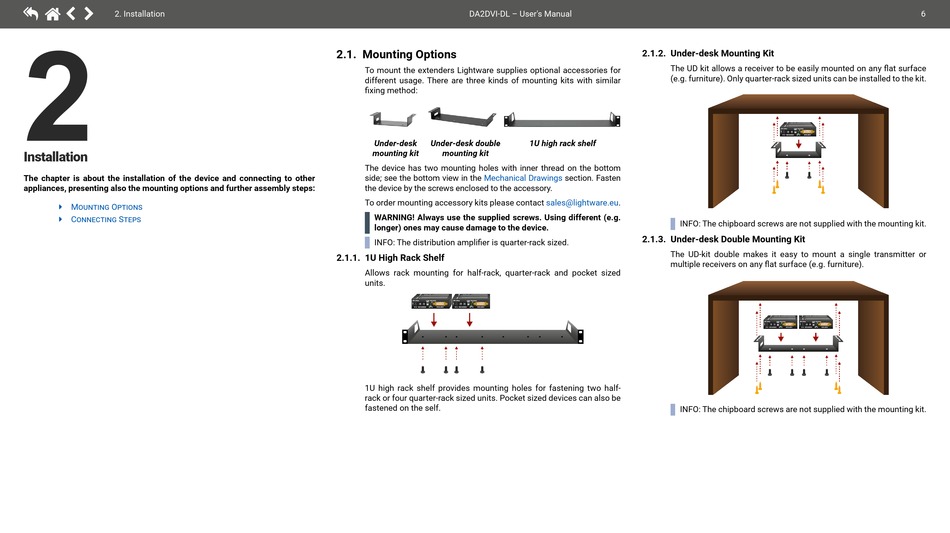

2.1. Mounting Options
To mount the extenders Lightware supplies optional accessories for
different usage. There are three kinds of mounting kits with similar
fixing method:
Under-desk Under-desk double
mounting kit mounting kit
The device has two mounting holes with inner thread on the bottom
side; see the bottom view in the Mechanical Drawings
the device by the screws enclosed to the accessory.
To order mounting accessory kits please contact sales@lightware.eu.
WARNING! Always use the supplied screws. Using different (e.g.
longer) ones may cause damage to the device.
INFO: The distribution amplifier is quarter-rack sized.
2.1.1. 1U High Rack Shelf
Allows rack mounting for half-rack, quarter-rack and pocket sized
units.
PIN: 2.35mm LEARN EDID STATUS PIN: 2.35mm LEARN EDID STATUS
EDID N EDID N
Y Y
HPD HPD
5V 1A EDID ADDRESS SRC +5V DVI-DL INPUT 5V 1A EDID ADDRESS SRC +5V DVI-DL INPUT
1U high rack shelf provides mounting holes for fastening two half-
rack or four quarter-rack sized units. Pocket sized devices can also be
fastened on the self.
2.1.2. Under-desk Mounting Kit
The UD kit allows a receiver to be easily mounted on any flat surface
(e.g. furniture). Only quarter-rack sized units can be installed to the kit.
1U high rack shelf
section. Fasten
INFO: The chipboard screws are not supplied with the mounting kit.
2.1.3. Under-desk Double Mounting Kit
The UD-kit double makes it easy to mount a single transmitter or
multiple receivers on any flat surface (e.g. furniture).
INFO: The chipboard screws are not supplied with the mounting kit.
6
PIN: 2.35mm LEARN EDID STATUS
EDID N
Y
HPD
5V 1A EDID ADDRESS SRC +5V DVI-DL INPUT
PIN: 2.35mm PIN: 2.35mm
EDID LEARN EDID STATUS LEARN EDID EDID STATUS
N Y N Y
HPD HPD
5V 1A EDID ADDRESS SRC +5V DVI-DL INPUT 5V 1A EDID ADDRESS SRC +5V DVI-DL INPUT
