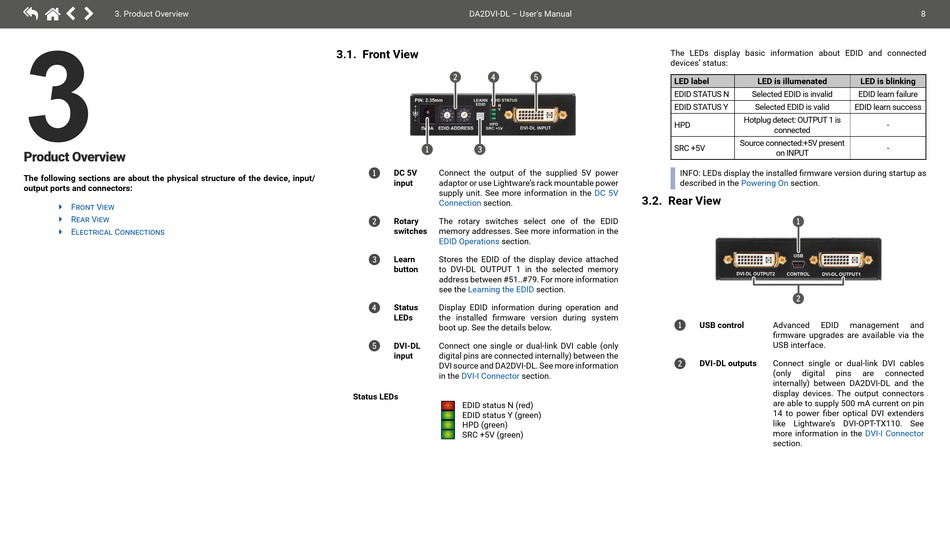

3. Product Overview

3
P roduct Overview
The following sections are about the physical structure of the device, input/
output ports and connectors:

Front View

Î

Rear View

Î
Electrical Connections
Î
DA2DVI-DL – User's Manual
3.1. Front View
2 4
1 3
1 DC 5V Connect the output of the supplied 5V power
input adaptor or use Lightware's rack mountable power
supply unit. See more information in the
Connection section.
2 Rotary The rotary switches select one of the EDID
switches memory addresses. See more information in the
EDID Operations section.
3 Learn Stores the EDID of the display device attached
button to DVI-DL OUTPUT 1 in the selected memory
address between #51..#79. For more information
see the Learning the EDID
Status Display EDID information during operation and
4
LEDs the installed firmware version during system
boot up. See the details below.
DVI-DL Connect one single or dual-link DVI cable (only
5
input digital pins are connected internally) between the
DVI source and DA2DVI-DL. See more information
in the DVI-I Connector
Status LEDs
EDID status N (red)
EDID status Y (green)
HPD (green)
SRC +5V (green)
The LEDs display basic information about EDID and connected
devices' status:
5
LED label
EDID STATUS N
EDID STATUS Y
HPD
SRC +5V
INFO: LEDs display the installed firmware version during startup as
described in the
DC 5V
3.2. Rear View
section.
1 USB control
2 DVI-DL outputs
section.
LED is illumenated LED is blinking
Selected EDID is invalid EDID learn failure
Selected EDID is valid EDID learn success
Hotplug detect: OUTPUT 1 is
-
connected
Source connected:+5V present
-
on INPUT
Powering On section.
1
2
Advanced EDID management and
firmware upgrades are available via the
USB interface.
Connect single or dual-link DVI cables
(only digital pins are connected
internally) between DA2DVI-DL and the
display devices. The output connectors
are able to supply 500 mA current on pin
14 to power fiber optical DVI extenders
like Lightware's DVI-OPT-TX110. See
more information in the DVI-I Connector
section.
