Lightware DA4-HDMI20-C Quick Start Manual

Quick Start Guide
DA4-HDMI20-C
DA8-HDMI20-C
Important Safety Instructions
Please read and keep the information in the attached safety instructions supplied with the
product before starting to use the device.
Introduction
Thank you for choosing Lightware's DA-HDMI20-C series distribution amplifier.
DA4-HDMI20-C 1x4 distribution amplifier distributes and amplifies one HDMI input signal
to four HDMI outputs. This device supports HDMI video resolution up to 4K@60Hz 4:4:4,
including multichannel audio formats. Besides passing EDID information from the display,
there are multiple built-in EDID settings that can be selected with the 4-pin DIP switch on the
front panel. The device also supports firmware update through a micro-USB port.
DA8-HDMI20-C is a compact distribution amplifier with built-in EDID Management and Pixel
Accurate Reclocking, supporting DVI, HDMI 1.4, and HDMI 2.0 signals with or without HDCP
encryption. The output signal is reclocked and stabilized to remove jitter caused by long
cables or poor quality sources. Moreover, to ensure compatibility, the 4K signal on the output
is automatically down-converted to HD when HD displays are connected.
DA8-HDMI20-C features EDID Management and can emulate EDID to the video source even
if no active HDMI display is attached to the outputs. HDCP enable/disable function turns off
the HDCP capability on the input, which helps integrate certain laptops into a non-HDCP AV
environment. There are 5 factory EDID presets and one programmable memory for storing a
user EDID. This latter one can be uploaded through the USB connector. Moreover, the device
can use any EDID read from the HDMI display device connected to its video output ports.
Box Contents
Distributor Amplifier 5V DC Power Adaptor, Mounting Ear Pack
Interchageable Plugs
Safety and Warranty Info,
Quick Start Guide

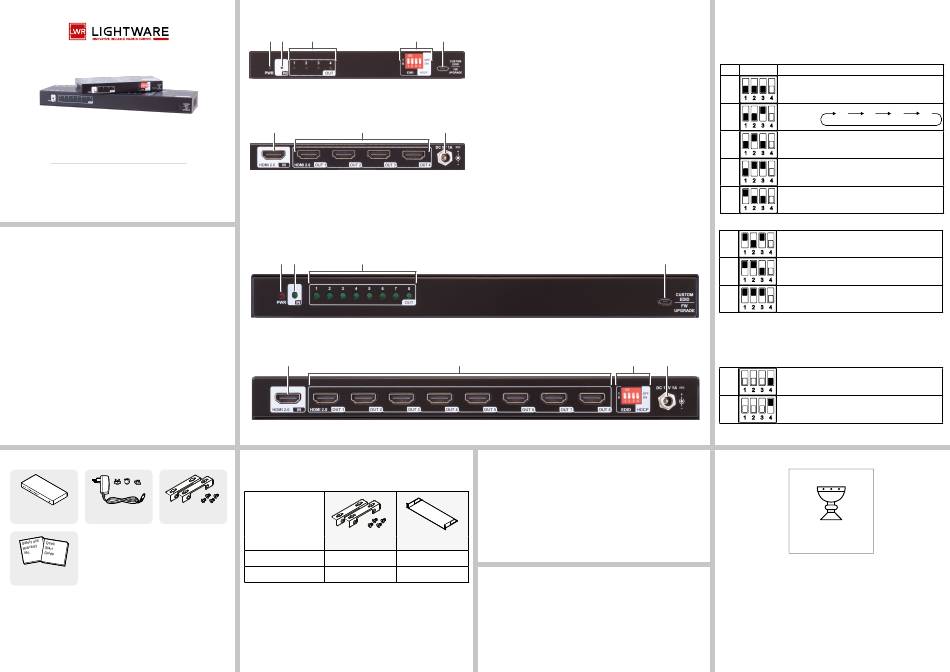

DA4-HDMI20-C
Front View
12 3 4
Rear view
6 7
DA8-HDMI20-C
Front View
12 3
Rear view
6
Mounting Options
For the mounting of the devices Lightware supplies optional accessories for different usages.
The device has two mounting holes with inner thread on the bottom side. Fasten the device by
the screws enclosed to the accessory.
Mounting ear pack 1U high rack shelf
DA4-HDMI20-C

DA8-HDMI20-C

1U high rack shelf provides mounting holes for fastening one half rack sized unit and
can be placed to a rack frame. The rack shelf can be ordered separately, please contact
sales@lightware.com.
¢ Using different (e.g. longer) screws may cause damage to the device.
5
1 Power LED The LED lights in red when power is applied.
2
Input LED The LED lights in green when HDMI signal is present on the
input.
The LED flashes when there is no HDCP encryption on the
signal.
3
Output LEDs The LEDs lights in green when HDMI signal is present on the
respective output.
4 DIP switch 4-pin DIP switch for EDID setting and HDCP mode selection.
8
5
Micro-USB port Firmware update can be performed through this port.
6 HDMI Input Type-A female HDMI input port to connect an HDMI source.
port
7
HDMI Output Type-A female HDMI output ports to connect HDMI displays.
ports
8
DC 5V barrel DC barrel connector to connect an AC power adapter.
port
7
Features
ƒ Resolutions of up to 4K@60Hz with 4:4:4 colorspace
ƒ HDMI 2.0 and 1.x compliant
ƒ HDCP 2.3 support
ƒ Supports video resolution downscaling (e.g. 4K to 1080p) based on EDID
ƒ 18 Gbps bandwidth
ƒ Advanced EDID management: multiple built-in EDIDs can be selected
ƒ Built-in equalizer for signal enhancement to avoid signal attenuation in transmission
ƒ No signal latency, zero frame delay
ƒ Supports CEC passthrough - only for DA4 variant
ƒ LEDs indicate current operating status
ƒ Firmware update via Micro-USB port
-
Firmware Update

Please follow the steps below to update the firmware of the device via the Micro-USB port:
1. Connect the device to the PC with a USB cable.
2. Power on the device. The PC will automatically detect a U-disk called "BOOTDISK".
3. Double-click on the U-disk to open it, and take note of a file named "READY.txt".
4. Copy the latest update file (.bin) directly to the "BOOTDISK" U-disk.
5. The "READY.txt" shall turn into "SUCCESS.txt" upon successful firmware update. If the
update failed, please check the (.bin) file and then try the process described above again.
6. Remove the USB cable after the firmware update is complete.
DIP Switch Operation
EDID Management
The DIP switch represents "1" when in the upper position, and "0" when in the lower position.
Switch 1-3 are used for setting the EDID. The DIP switch statuses and their corresponding
settings are shown on the top of the product.
ID DIP SET Emulated EDID
000- Copy from Output
1 2 3 4
001- Priority select
1 2 3 4
010- Custom EDID
1 2 3 4
1920x1080p60
011-
2ch PCM
1 2 3 4
3840x2160p30
100-
2ch PCM
1 2 3 4
3840x2160p60
101-
2ch PCM
1 2 3 4
5
4096x2160p60
110-
2ch PCM
1 2 3 4
3840x2160p60, HDR, 4:2:0
111-
2ch PCM
1 2 3 4
 If the DIP switch is set to 010- (Custom EDID), but there is no custom EDID present in the
device, the EDID of the 101- position will be emulated automatically.
HDCP Management
When the fourth switch is in the upper position, HDCP capability on the input is disabled. When
it is in the lower position, HDCP capability is enabled.
4 8
ON HDCP capability is enabled.
1 2 3 4
OFF HDCP capability is disabled.
1 2 3 4
TAKE CARE OF ME
I AM THE ONE AND ONLY
USER DOCUMENT FOR
Lightware Visual Engineering PLC.
Budapest, Hungary
 sales@lightware.com
 support@lightware.com
©2024 Lightware Visual Engineering. All rights reserved. All trademarks mentioned are the
property of their respective owners. Specifications are subject to change without notice.
Further information on the device is available at www.lightware.com.
1
1 2 3 4
THIS PRODUCT
 +36 1 255 3800
 +36 1 255 3810
Doc. ver.: 1.3
19210132
