10. Appendix

10
Appendix
Tables, drawings, and technical details as follows:

Specification

Î
Mechanical Drawings
Î
Factory EDID List
Î
Further Information
Î
DA2DVI-DL – User's Manual

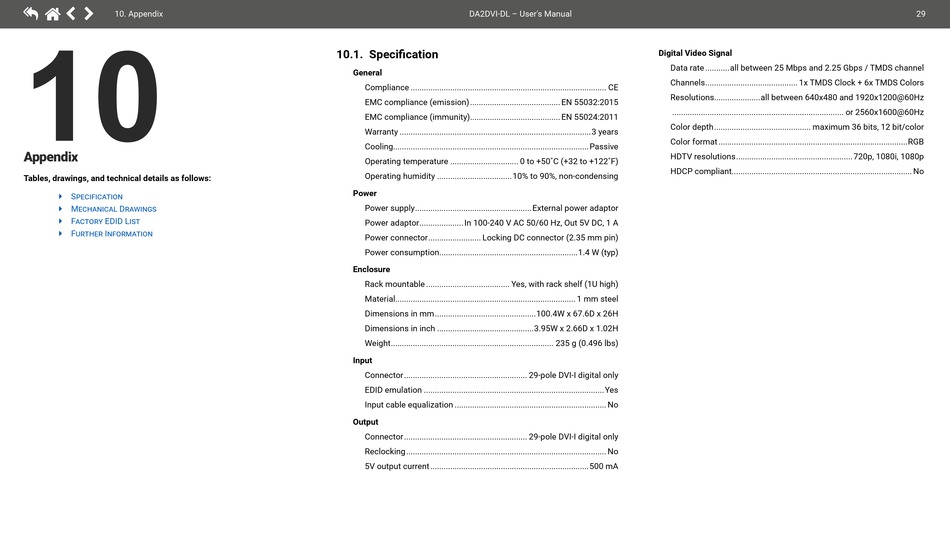

10.1. Specification
General
Compliance ......................................................................................... CE
EMC compliance (emission) ......................................... EN 55032:2015
EMC compliance (immunity) ......................................... EN 55024:2011
Warranty .......................................................................................3 years
Cooling.........................................................................................Passive
Operating temperature ............................... 0 to +50˚C (+32 to +122˚F)
Operating humidity ..................................10% to 90%, non-condensing
Power
Power supply .....................................................External power adaptor
Power adaptor .................... In 100-240 V AC 50/60 Hz, Out 5V DC, 1 A
Power connector ........................ Locking DC connector (2.35 mm pin)
Power consumption ...............................................................1.4 W (typ)
Enclosure
Rack mountable ...................................... Yes, with rack shelf (1U high)
Material .................................................................................. 1 mm steel
Dimensions in mm ..............................................100.4W x 67.6D x 26H
Dimensions in inch ............................................3.95W x 2.66D x 1.02H
Weight .......................................................................... 235 g (0.496 lbs)
Input
Connector ........................................................ 29-pole DVI-I digital only
EDID emulation ..................................................................................Yes
Input cable equalization ..................................................................... No
Output
Connector ........................................................ 29-pole DVI-I digital only
Reclocking ........................................................................................... No
5V output current ........................................................................500 mA
Digital Video Signal
Data rate ...........all between 25 Mbps and 2.25 Gbps / TMDS channel
Channels .......................................... 1x TMDS Clock + 6x TMDS Colors
Resolutions.....................all between 640x480 and 1920x1200@60Hz
.............................................................................. or 2560x1600@60Hz
Color depth ............................................ maximum 36 bits, 12 bit/color
Color format ......................................................................................RGB
HDTV resolutions ..................................................... 720p, 1080i, 1080p
HDCP compliant.................................................................................. No
