10. Appendix

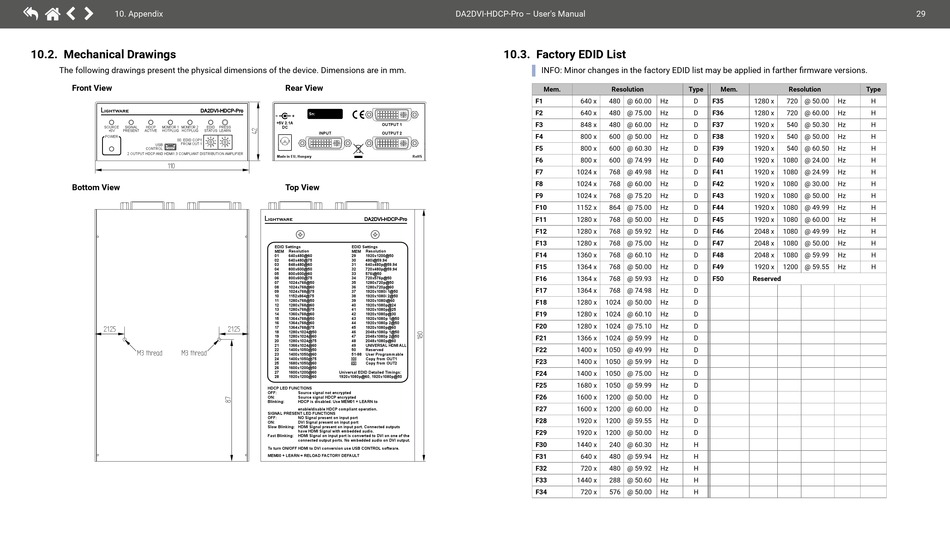

10.2. Mechanical Drawings
The following drawings present the physical dimensions of the device. Dimensions are in mm.
Front View
SOURCE SIGNAL HDCP MONITOR 1
+5V PRESENT ACTIVE HOTPLUG
POWER
00: EDID COPY
USB
CONTROL
2 OUTPUT HDCP AND HDMI1.3 COMPLIANT DISTRIBUTION AMPLIFIER
110
Bottom View
21.25
M3 thread
Rear View
DA2DVI-HDCP-Pro
Sn:
+5V 2.1A
DC
MONITOR 2 EDID PRESS
HOTPLUG STATUS LEARN
INPUT
FROM OUT 1
Made in EU, Hungary
Top View
EDID Settings EDID Settings
MEM Resolution MEM
01 640x480@60 29
02 640x480@75 30
03 848x480@60 31
04 800x600@50 32
05 800x600@60 33
06 800x600@75 34
07 1024x768@50 35
08 1024x768@60 36
09 1024x768@75 37
10 1152x864@75 38
11 1280x768@50 39
12 1280x768@60 40
13 1280x768@75
41
14 1360x768@60 42
15 1364x768@50 43
16 1364x768@60 44
21.25 17 1364x768@75 45
18 1280x1024@50 46
19 1280x1024@60 47
20 1280x1024@75 48
21 1366x1024@60 49
22 1400x1050@50 50
M3 thread
23 1400x1050@60 51-98
24 1400x1050@75
25 1680x1050@60
26 1600x1200@50
27 1600x1200@60 Universal EDID Detailed Timings:
28 1920x1200@60 1920x1080p@60, 1920x1080p@50
HDCP LED FUNCTIONS
OFF: Source signal not encrypted
ON: Source signal HDCP encrypted
Blinking: HDCP is disabled. Use MEM01 + LEARN to
enable/disable HDCP compliant operation.
SIGNAL PRESENT LED FUNCTIONS
OFF: NO Signal present on input port
ON: DVI Signal present on input port
Slow Blinking: HDMI Signal present on input port. Connected outputs
have HDMI Signal with embedded audio.
Fast Blinking: HDMI Signal on input port is converted to DVI on one of the
connected output ports. No embedded audio on DVI output.
To turn ON/OFF HDMI to DVI conversion use USB CONTROL software.
MEM00 + LEARN = RELOAD FACTORY DEFAULT
DA2DVI-HDCP-Pro – User's Manual
10.3. Factory EDID List
INFO: Minor changes in the factory EDID list may be applied in farther firmware versions.
Mem.
F1
F2
F3
OUTPUT 1
OUTPUT 2
F4
F5
RoHS
F6
F7
F8
F9
F10
F11
DA2DVI-HDCP-Pro
F12
F13
Resolution
F14
1920x1200@50
480i@59.94
640x480p@59.94 F15
720x480p@59.94
576i@50
F16
720x576p@50
1280x720p@50
1280x720p@60
F17
1920x1080i 1@50
1920x1080i 2@50
F18
1920x1080i@60
1920x1080p@24
1920x1080p@25
F19
1920x1080p@30
1920x1080p 1@50
1920x1080p 2@50
F20
1920x1080p@60
2048x1080p 1@50
2048x1080p 2@50 F21
2048x1080p@60
UNIVERSAL HDMI ALL
F22
Reserved
User Programmable
Copy from OUT1
F23
Copy from OUT2
F24
F25
F26
F27
F28
F29
F30
F31
F32
F33
F34
Resolution Type Mem.
640 x 480 @ 60.00 Hz D F35 1280 x
640 x 480 @ 75.00 Hz D F36 1280 x
848 x 480 @ 60.00 Hz D F37 1920 x
800 x 600 @ 50.00 Hz D F38 1920 x
800 x 600 @ 60.30 Hz D F39 1920 x
800 x 600 @ 74.99 Hz D F40 1920 x
1024 x 768 @ 49.98 Hz D F41 1920 x
1024 x 768 @ 60.00 Hz D F42 1920 x
1024 x 768 @ 75.20 Hz D F43 1920 x
1152 x 864 @ 75.00 Hz D F44 1920 x
1280 x 768 @ 50.00 Hz D F45 1920 x
1280 x 768 @ 59.92 Hz D F46 2048 x
1280 x 768 @ 75.00 Hz D F47 2048 x
1360 x 768 @ 60.10 Hz D F48 2048 x
1364 x 768 @ 50.00 Hz D F49 1920 x
1364 x 768 @ 59.93 Hz D F50 Reserved
1364 x 768 @ 74.98 Hz D
1280 x 1024 @ 50.00 Hz D
1280 x 1024 @ 60.10 Hz D
1280 x 1024 @ 75.10 Hz D
1366 x 1024 @ 59.99 Hz D
1400 x 1050 @ 49.99 Hz D
1400 x 1050 @ 59.99 Hz D
1400 x 1050 @ 75.00 Hz D
1680 x 1050 @ 59.99 Hz D
1600 x 1200 @ 50.00 Hz D
1600 x 1200 @ 60.00 Hz D
1920 x 1200 @ 59.55 Hz D
1920 x 1200 @ 50.00 Hz D
1440 x 240 @ 60.30 Hz H
640 x 480 @ 59.94 Hz H
720 x 480 @ 59.92 Hz H
1440 x 288 @ 50.60 Hz H
720 x 576 @ 50.00 Hz H
29
Resolution Type
720 @ 50.00 Hz H
720 @ 60.00 Hz H
540 @ 50.30 Hz H
540 @ 50.00 Hz H
540 @ 60.50 Hz H
1080 @ 24.00 Hz H
1080 @ 24.99 Hz H
1080 @ 30.00 Hz H
1080 @ 50.00 Hz H
1080 @ 49.99 Hz H
1080 @ 60.00 Hz H
1080 @ 49.99 Hz H
1080 @ 50.00 Hz H
1080 @ 59.99 Hz H
1200 @ 59.55 Hz H
