4. Software Control – Using Lightware Matrix Controller

4.1. Establishing the connection

The unit can be controlled using Lightware Matrix Controller software from a PC or
Laptop via USB port.
1.
Info USB Connection to the DA2DVI-Pro can be done even if it's in front panel control
mode, but only the status of the settings can be checked, and no software changes
can be applied.
2.
3.
4.
Info The device Type and Serial number are not listed automatically for COM ports. To
query the Type and Serial number, double click on the desired COM port.
Info After connecting the DA2DVI-Pro to the controlling PC or laptop, the driver of the
DA2DVI-Pro starts installing itself. The driver creates a virtual COM port in the
operating system. When running the Lightware Matrix Controller software, this
COM port will be seen in the Available Serial Ports list.
Page 18 / 43
Turn DIP Switch 1 in ON position to enable USB control function.
Connect a USB Type A/B cable between the PC and the DA2DVI-Pro. The
unit installs its driver automatically. If the installation process fails, see
chapter 1.8.2.

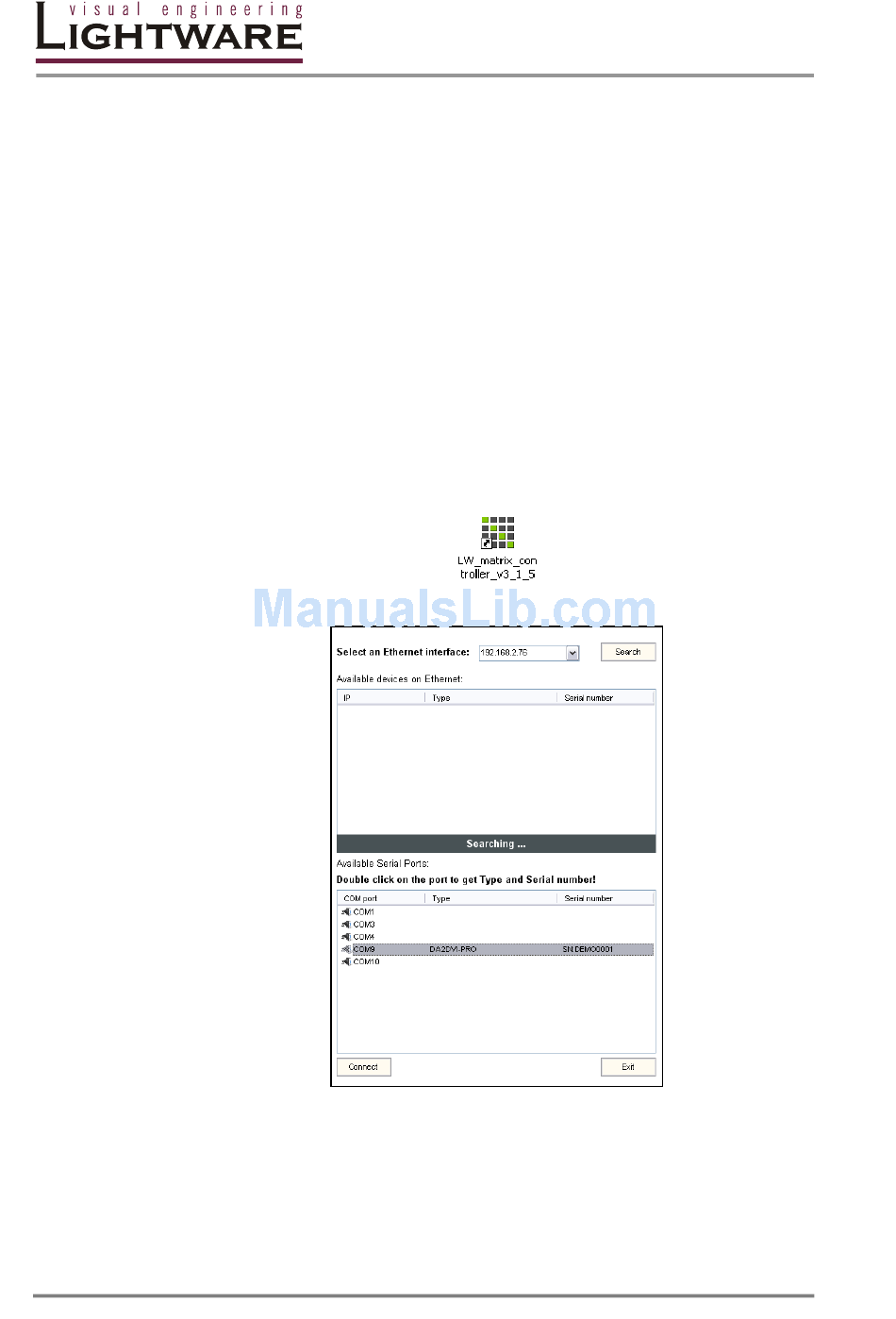

To run the CONTROL SOFTWARE, double click on the icon of the software
on the desktop or select the proper shortcut from Start Menu/ Programs/
Lightware folder.
Select the appropriate virtual COM port and click on Connect.
