3.7 S-Video Connector

We use the S-Video connector for high quality video-in because it is the
most common type and is also widely used on PCs and personal video
equipment. This makes it easy to get cables and connectors.

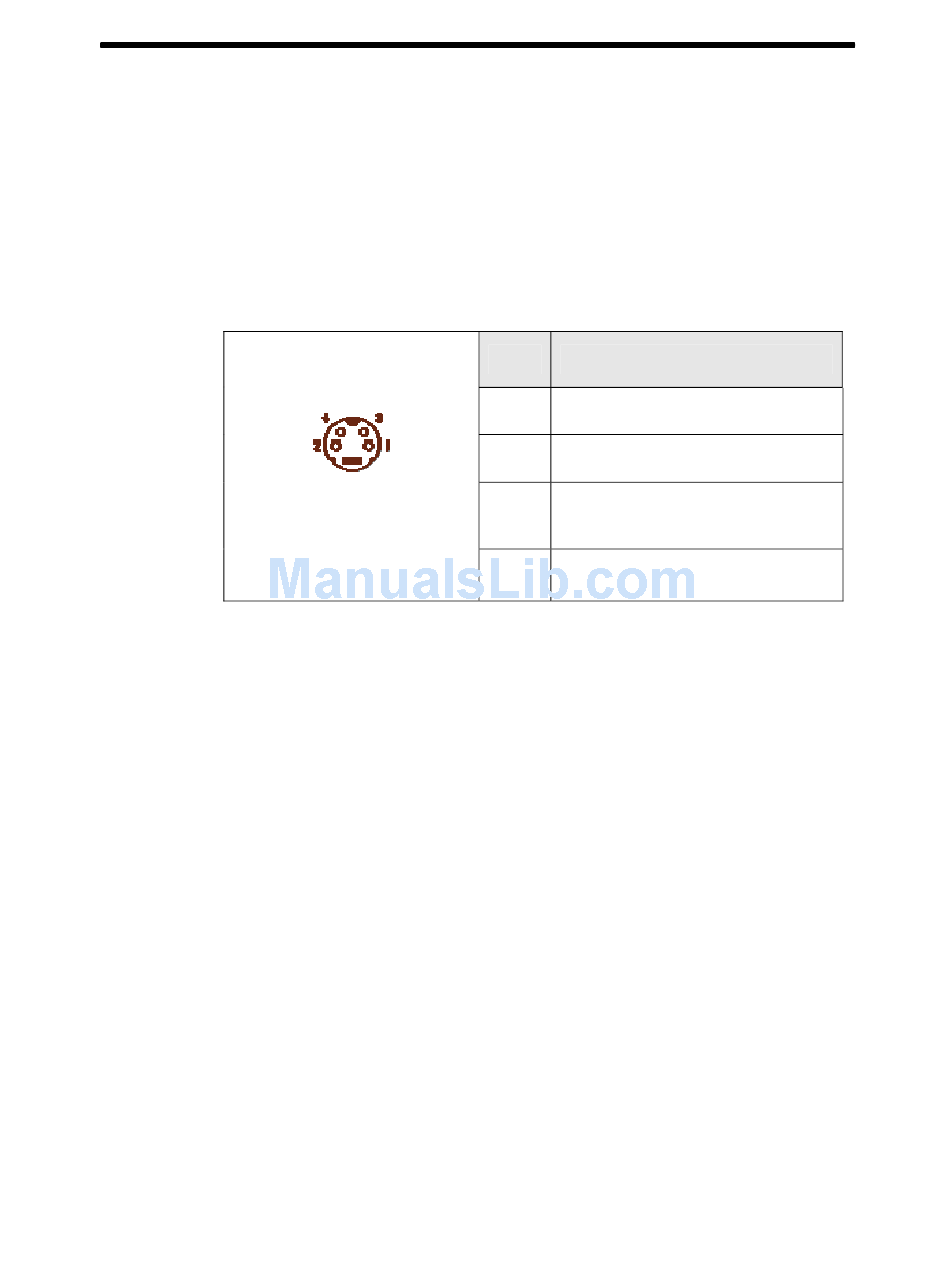

Figure 3-1 S-Video Connector

Male connector
solder side view
Pin Description
1 Ground (Y)
2 Ground (C)
Y (Luminance = intensity + Sync.)
3
or Composite Video In
4 C (Chrominance = color)
Connector Pinouts and Cable Information 3-15
