Optical power splitter BN 3035/90.49

[90]

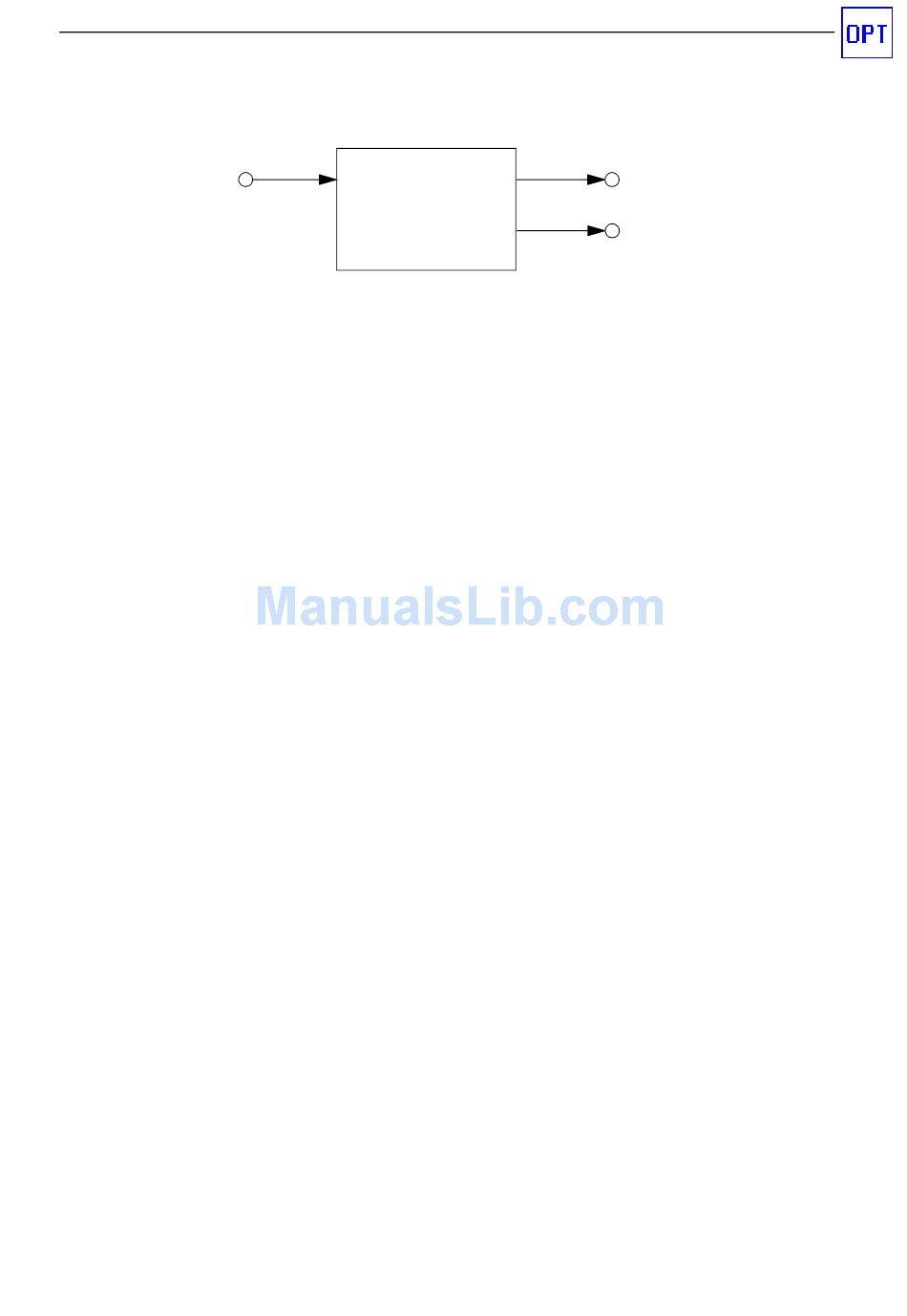

Fig. S-1
3.1

Wavelength ranges

"1310 nm" . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1260 to 1360 nm
"1550 nm" . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1500 to 1600 nm
3.2

Attenuation

Between "IN" [90] and "90%" [92]. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.0 dB (typically),
Between "IN" [90] and "10%" [91]. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.5 dB (typically),
Specifications STM-16, OC-48
IN
Optical Power Splitter
Optical Interfaces; STM-16/OC-48
90%
[92]
10%
[91]
< 1.6 dB
8.8 to 12.0 dB
S-35
