ITW Dynatec DYNAMINI Operation And Service Manual page 83

Page 10-18 Component Illustrations & BOM's
Revised 8/02
7

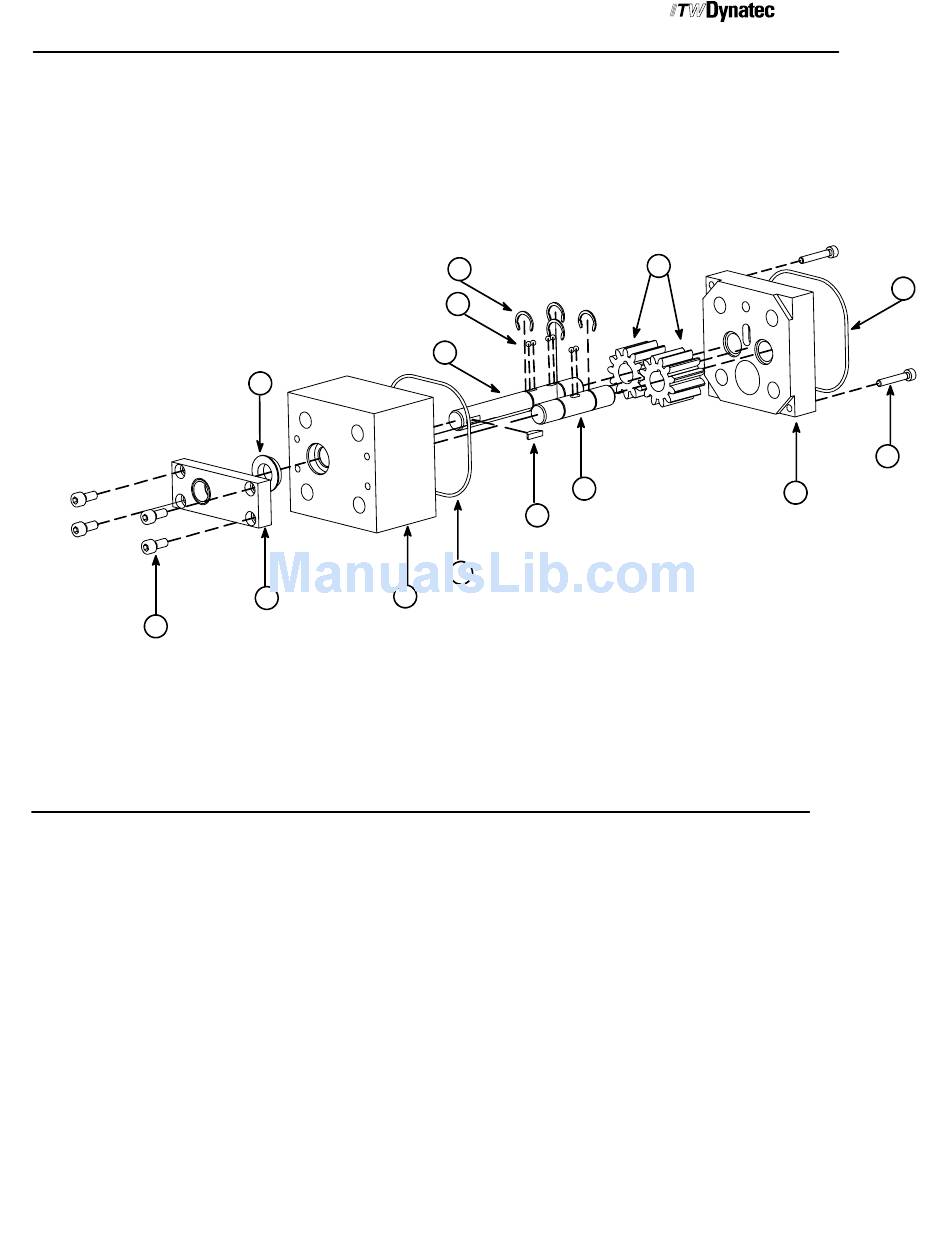

Bill of Materials for 10cc Single Gear Pump Assembly # 109690
Item No. Part Number
1 018X031
2 078F017
3 078I001
4 069X061
5 069X064
6 100908
7 101626
8 109685
9 109686
10 109689
11 109687
12 109688
13 069X160
14 001U002
4
8
13
Description
Ball bearing, 1/8 Dia.
Snap ring, 1/2"
Key Woodruf, #404
Shaft Seal
O-ring, -041
M4-0.7 x 25mm SHC Screw
M5-0.8 x 12mm SHC Screw
Pump Body10cc Rev
Rear Bearing Plate 10cc Rev.
Gear 10cc Rev
Drive Shaft 10cc/ 20cc
Driven shaft, 10cc/20cc
Shaft seal retainer
Dow Corning 112 Lubricant (Not Shown)
2
1
11
12
3
5
c. 2004
DYNAMINI ASU Manual #20-25
10
9
Qty.
6
4
1
1
2
2
4
1
1
2
1
1
1
5
6
