Mounting the DYNAMINI ASU

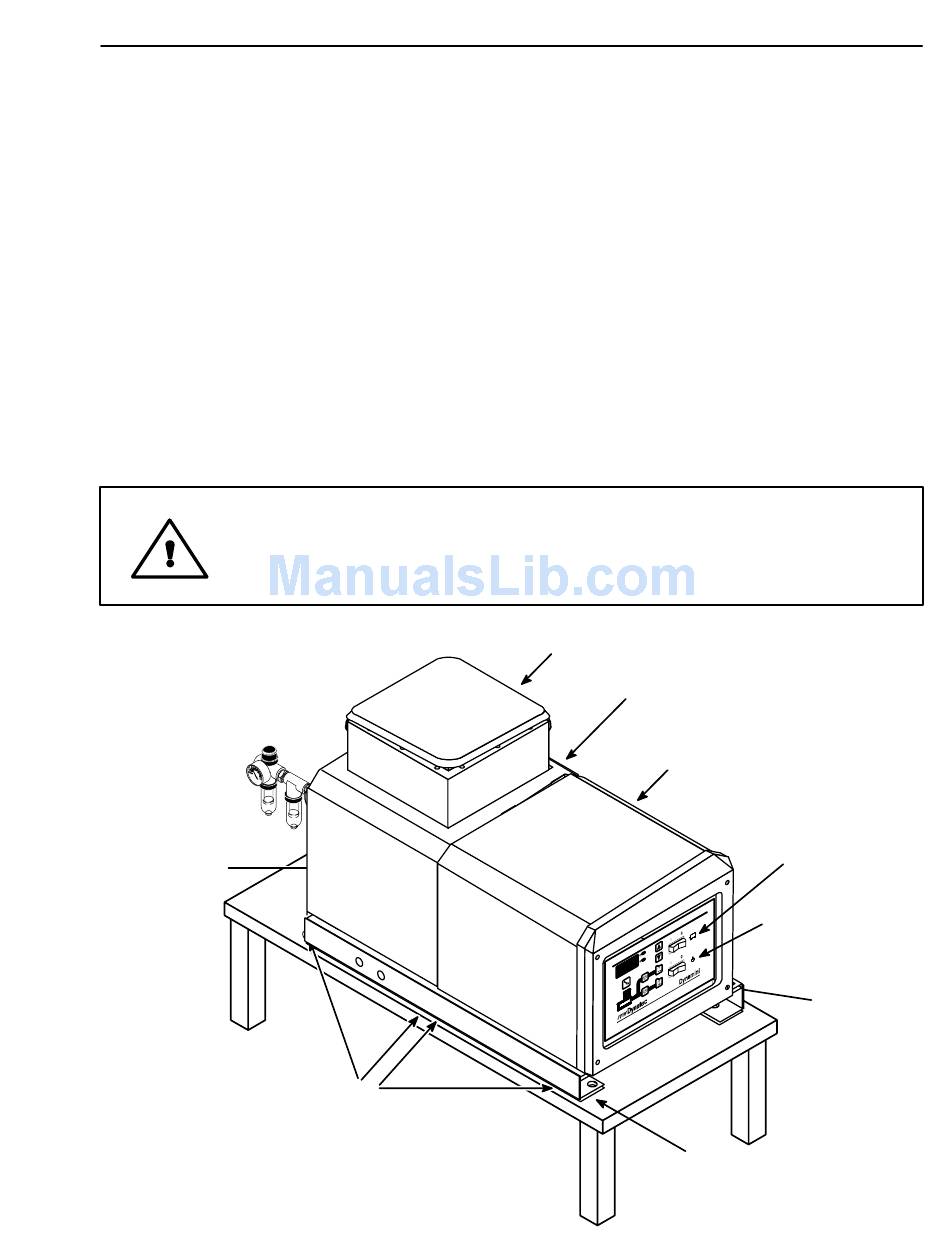

The DYNAMINI ASU can be mounted on most flat surfaces, on either an open or a solid frame (as
shown below). The main electrical power and the serial communication connections come in from
below the unit and connect under the keypad. Access to the underside of the ASU is not a necessary
consideration in mounting the unit.
The Dynamini's hinged hopper lid may be rotated 90 degrees in any direction.
For installation dimensions, see illustration on page 2-4.
Lifting the ASU
The unit must be lifted by two persons, using proper lifting technique, one
person at either end. Securely hold it under its base plate. No belts or hooks
should be used. Never allow anyone to stand on the ASU.
Hopper Cover
Captive Cover Screws
Chapter 3
INSTALLATION & START-UP
WARNING
Hopper Lid
Access Cover
Pump & Electronics Cover
Base
Plate
Page 3-1
Revised 1/05
Pump ON/OFF
Switch
Main ON/OFF
Power Switch
Controller
Keypad
