ITW Dynatec DYNAMINI Operation And Service Manual page 57

Page 8-4
Revised 1/05
d.
Printed Circuit Board Replacement:
Reference the manual section entitled "Handling Printed Circuit Boards" on page 7-1 before pro-
ceeding.
1. Disconnect the ground spade on the pcb's mounting bracket.
2. Disconnect all electrical connections to the board.
3. Remove the two mounting bracket screws.
4. Lift the old pcb and mounting bracket from the ASU.
Note: Do not attempt to separate the pcb from its mounting bracket. It is all one assembly.
5. Place the new pcb and mounting bracket in the ASU.
6. Re-install the two mounting bracket screws.
7. Re-install the ground spade on mounting bracket.
8. Re-install electrical connectors onto the board (refer to pg. 7-2, if necessary).
DYNAMINI ASU Manual #20-25

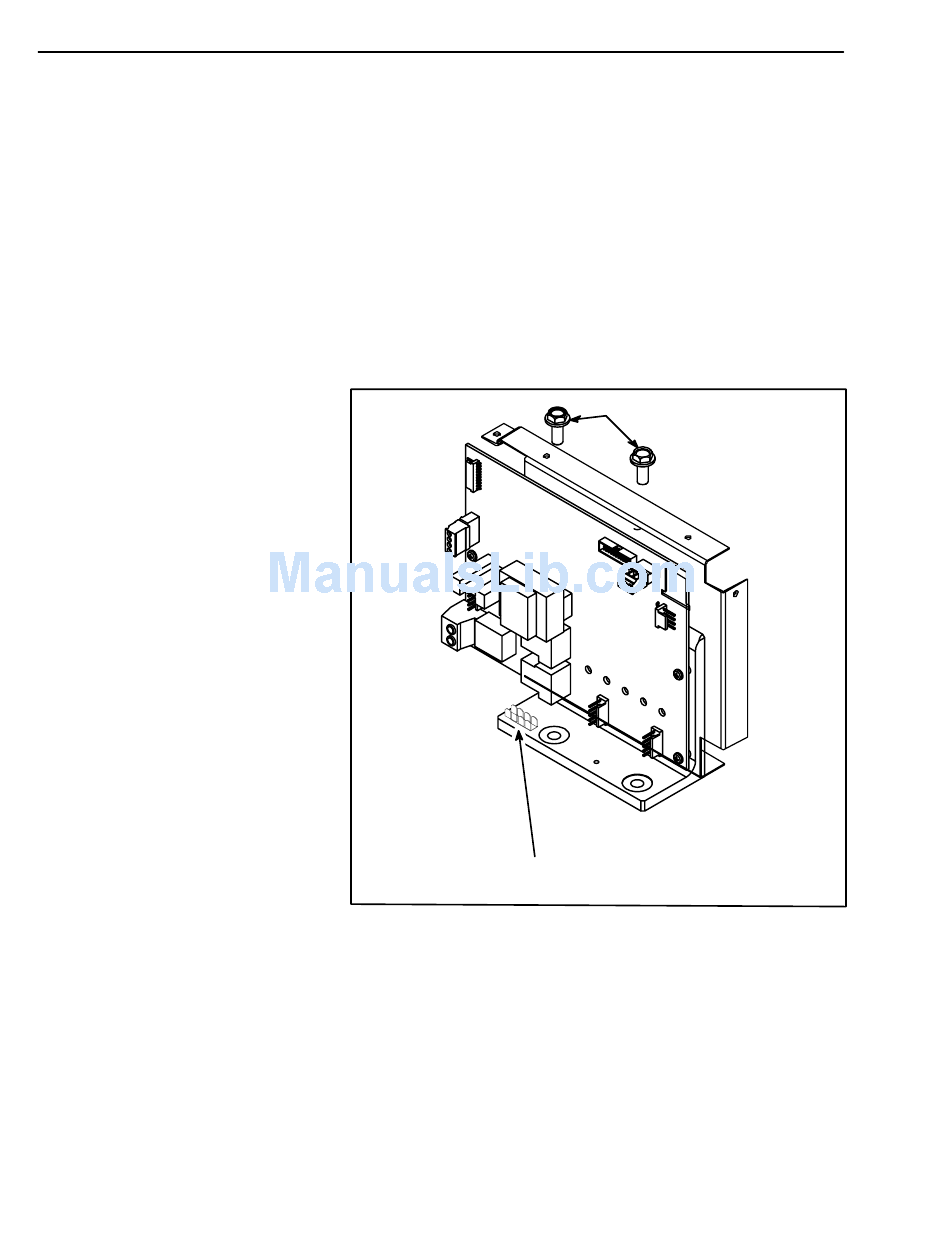

Remove bracket screws (2)
Remove ground spade
ITW Dynatec c. 2004
