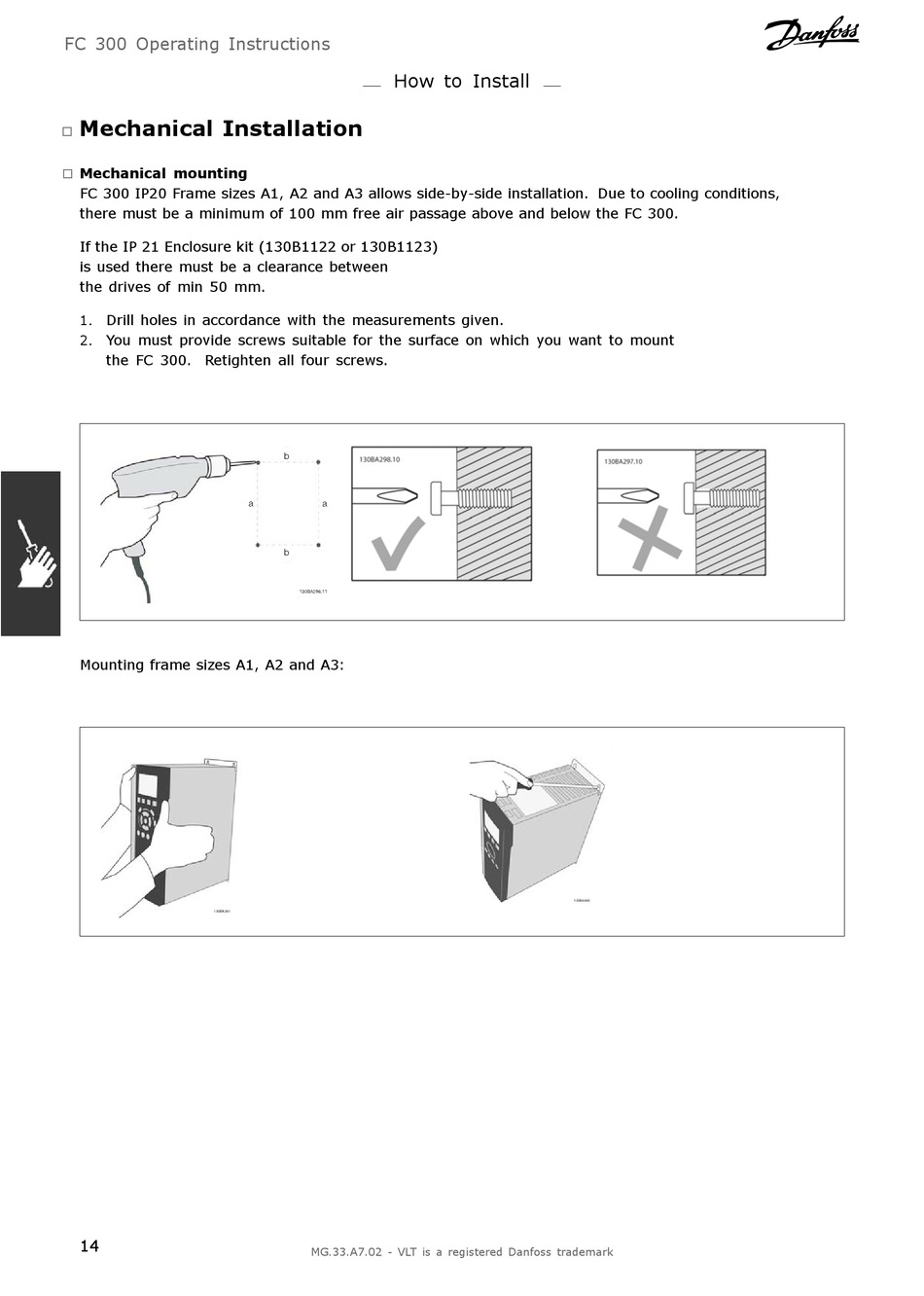

Mechanical Installation

"
Mechanical mounting
"
FC 300 IP20 Frame sizes A1, A2 and A3 allows side-by-side installation. Due to cooling conditions,
there must be a minimum of 100 mm free air passage above and below the FC 300.
If the IP 21 Enclosure kit (130B1122 or 130B1123)
is used there must be a clearance between
the drives of min 50 mm.
1. Drill holes in accordance with the measurements given.
You must provide screws suitable for the surface on which you want to mount
2.
the FC 300. Retighten all four screws.
Mounting frame sizes A1, A2 and A3:
