Cable Cubby 650 UT • Installation Guide (Continued)

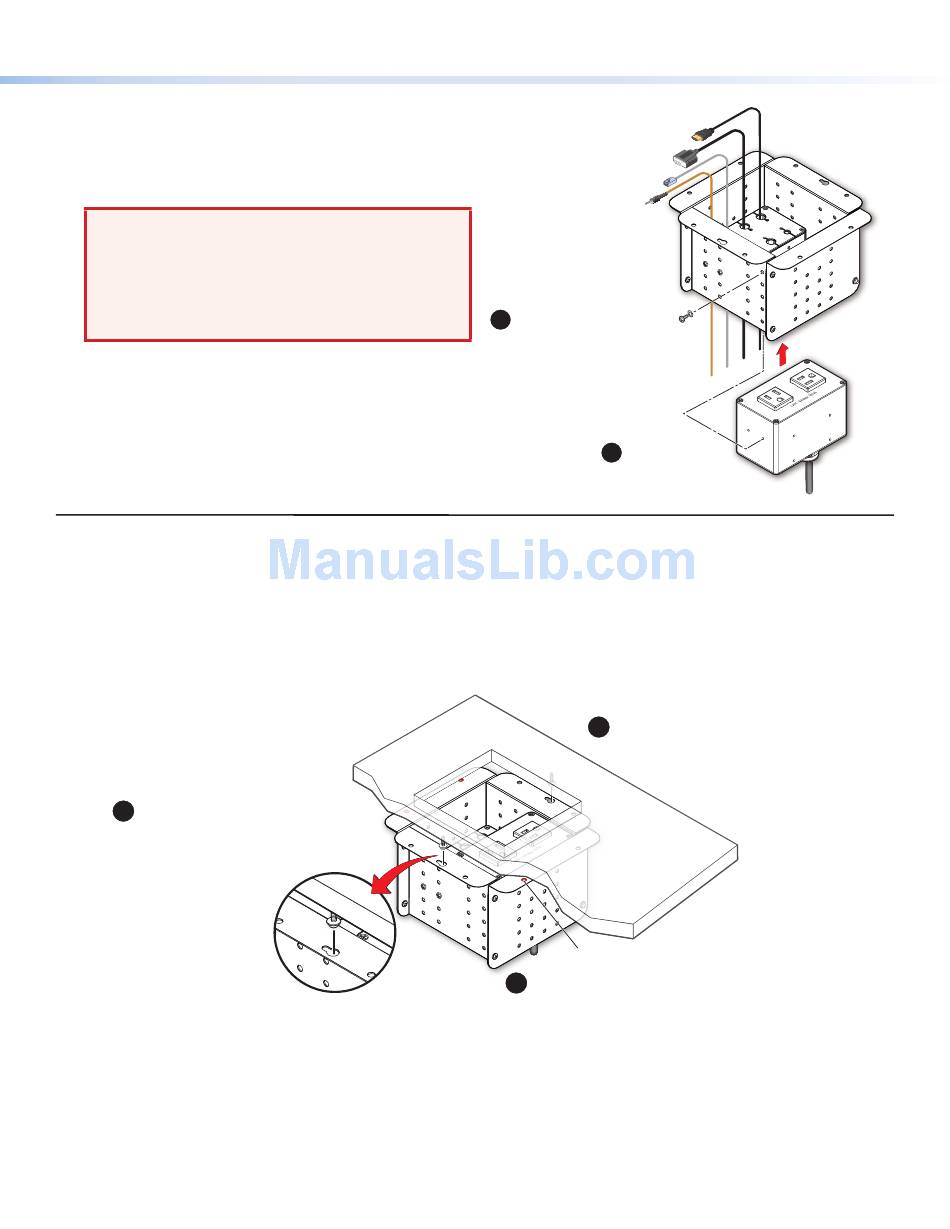

Step 3 — Install the Modules
Determine where the connectivity module and/or power module will be installed in the
Cable Cubby. The modules may be installed on the left or right side of the enclosure and
at various heights.
For the power module:
WARNING: Risk of Electric Shock.
proper electrical grounding, use the provided #6-32
mounting screws with the star washers.
AVERTISSEMENT : Risque de choc électrique.
Afin d'assurer une mise à la terre correcte, utilisez les
fixations de mise à la terre #6-32 et les rondelles en
étoile fournies.
Mounting the Cable Cubby under the Table
Align the enclosure with the pre-drilled holes under the furniture. Secure the enclosure with the appropriate screws (see
hole in the table and pre-drill mounting holes
2
Hook the Cable Cubby assembly
onto the screws at the keyhole locations,
as shown at right.
Slide the Cable Cubby assembly
into slot.
Align the other mounting
holes on the assembly with
the pre-drilled holes on the
furniture.
Tighten the screws to
secure the Cable Cubby
assembly.
To ensure
2
Secure the modules using
four of the provided pan-head
mounting screws and star washers.
on page 3).
3
Insert and tighten the rest of the mounting screws
through remaining mounting holes on the enclosure
and into the pre-drilled holes in the furniture.
1
Insert the modules
into the Cable Cubby.
1
Insert a mounting screw appropriate for
the furniture material into each of the keyhole locations.
Tighten each screw until it protrudes 1/4 inch from
the bottom of the table.
Mounting holes
Cut the
