Extron electronics Andora User Manual

SPECIFICATIONS
Input Signal
Video .. 15.7 NTSC, S-Video or Composite Video
.. 15.6 PAL/SECAM, S-Video or Composite
.. Video
RGB .. 15.7 kHz (Targa Style)
VGA .. 31.5 kHz, 640 x 480
.. Pass-through
Output Signal
VGA .. 640 x 480, 31.5 kHz / 60 Hz
Connectors
Composite Video .. RCA
S-Video .. 4-pin mini-DIN
RGB .. 9-pin (Male)
VGA Input .. 15 pin HD (Male)
VGA Output .. 15 pin HD (Female)
Audio .. 2.5 mm phone jack (Female)
Power Supply .. 100-240 V 50/60 Hz
.. (auto-switchable)
Dimensions .. 9.75" W x 7.0" D x 1.75" H
.. 25cm W x 18cm D x 4.4cm H
Enclosure .. High-impact plastic
Shipping Weight .. 6 lbs. (2.7 kg)
Warranty .. Two years, parts & labor
Andora Part Number
115/230 volt: .. 60-144-01
Accessories
Andora 9' .. 26-161-03
Targa 6' HR .. 26-362-01
S-VHS-BNC Adapter .. 26-353-01
SY VGA .. 26-173-01
EXTRON ELECTRONICS EXTRON ELECTRONICS, EUROPE
1230 South Lewis Street Beeldschermweg 6C
Anaheim, CA 92805 3821 AH Amersfoort
(714) 491-1500 FAX (714) 491-1517 +31-33-453-4040 FAX +31-33-453-4050
U.S.A. The Netherlands
EXTRON ELECTRONICS, ASIA
69-08
41B Kreta Ayer Road
Singapore 089003
68-291-01
+65-226-0015 FAX +65-226-0019
Rev. A
Singapore

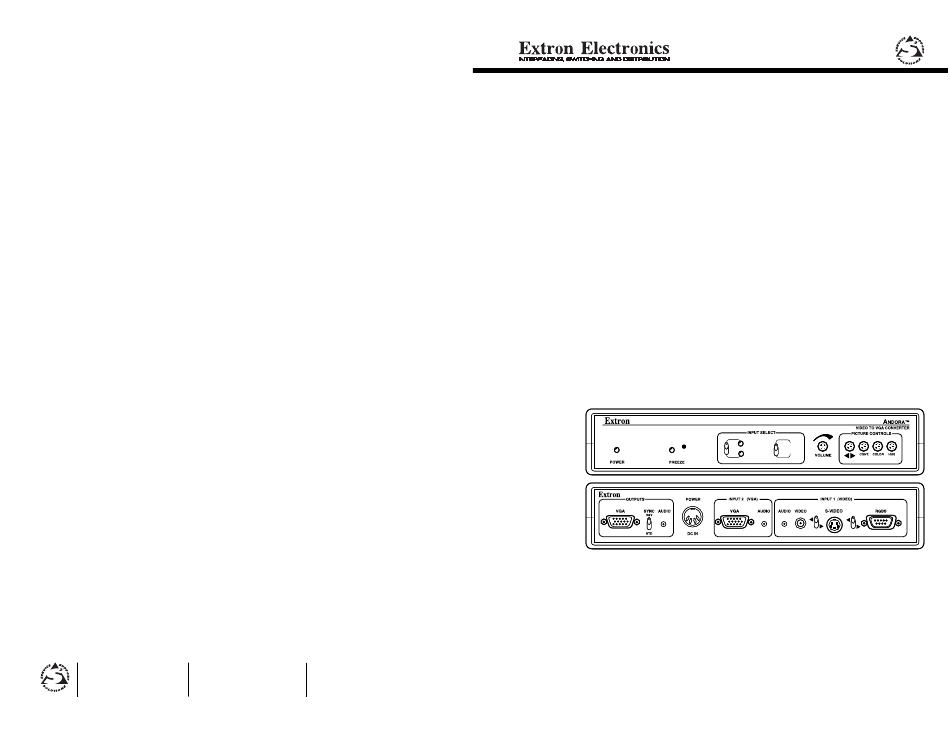

User's Guide
VIDEO (1)
AUTO
MANUAL
VGA (2)

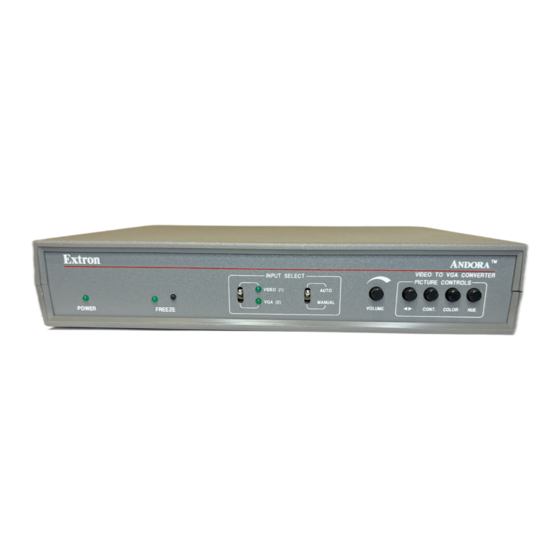

ANDORA
SCAN DOUBLER
