User's Manual
YCS SW2
2 Input Transcoding Switcher
68-1110-01 Rev. A
09 05
Advertisement
Table of Contents
Related Manuals for Extron electronics YCS SW2
Summary of Contents for Extron electronics YCS SW2

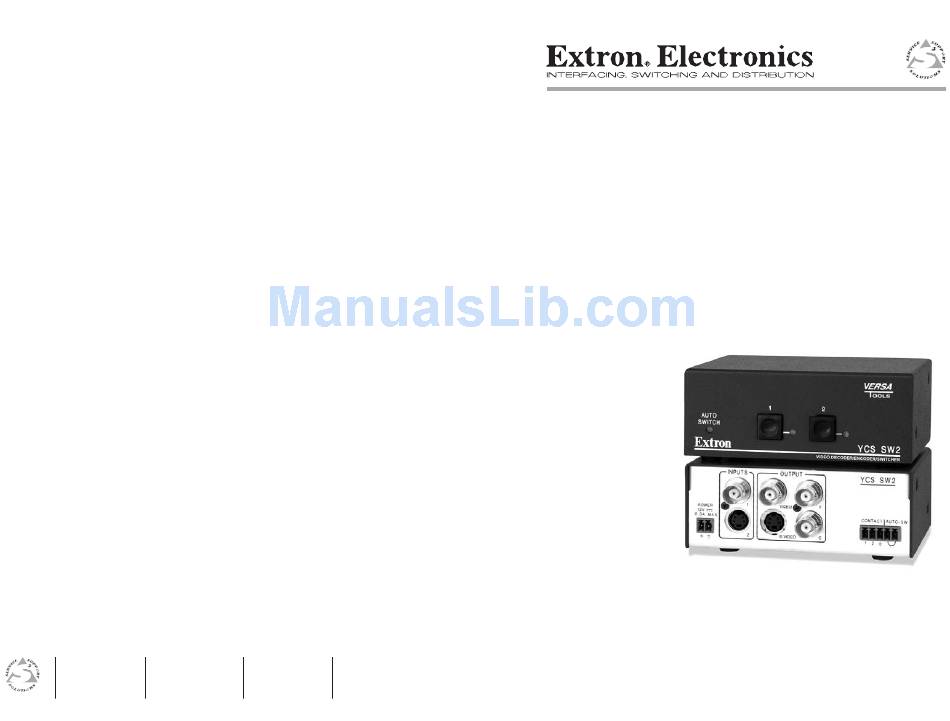

- Page 1 User’s Manual YCS SW2 2 Input Transcoding Switcher Extron Electronics, Asia Extron Electronics, Japan Extron Electronics, USA Extron Electronics, Europe 1230 South Lewis Street Beeldschermweg 6C 135 Joo Seng Road, #04-01 Kyodo Building Anaheim, CA 92805 3821 AH Amersfoort PM Industrial Building 16 Ichibancho 68-1110-01 Rev.
- Page 2 Precautions Safety Instructions • English FCC Class A Notice Warning Power sources • This equipment should be operated only from the power source This symbol is intended to alert the user of important indicated on the product. This equipment is intended to be used with a main power operating and maintenance (servicing) instructions in Note: This equipment has been tested and found to comply with the limits for a system with a grounded (neutral) conductor.
- Page 3 • • • • • • • • • • •...
-
Page 4: Table Of Contents
Appendix A • Specifi cations, Part Numbers, and Accessories ..................A-1 Specifi cations ................A-2 Included Parts ................A-4 Accessories ...................A-4 All trademarks mentioned in this manual are the properties of their respective owners. 68-1110-01 Rev. A 09 05 YCS SW2 • Table of Contents... -
Page 5: Chapter One • Introduction
Table of Contents, cont’d YCS SW2 Chapter One Introduction About this Manual About the YCS SW2 Features Application Diagrams YCS SW2 • Table of Contents... -
Page 6: About This Manual
Certain projectors have both video and S-video inputs, but decoder/encoder provides for universal compatibility. can use only one of them at a time. The YCS SW2 solves this problem by autoswitching between composite video and Enclosure — The YCS SW2 has a compact 1U high, ¼-rack S-video, then decoding the S-video to feed to the projector. -
Page 7: Application Diagrams
Introduction, cont’d Application Diagrams YCS SW2 The following diagrams provide examples of how the YCS SW2 may be connected. Projector S-video Camera Video Extron YCS SW2 S-video Two Input, Three Output -S W Transcoding Switcher IN P M AX 0. 3A... -
Page 8: Mounting The Ycs Sw2
Apply power to the YCS SW2 and to the input and output devices. Mounting the YCS SW2 1/4 Rack Width Front The YCS SW2 can be set on a table; mounted on a rack shelf; False Faceplate mounted under a desk, podium, or table; or attached to a projector. -
Page 9: Back Of The Rack Mounting
Installation and Operation, cont’d Back of the rack mounting The YCS SW2 also can be mounted vertically to the front or rear 1U Universal Rack Shelf rack supports, using the optional back of the rack mounting kit 1/2 Rack Width Front False Faceplate (Extron part #70-367-01). -
Page 10: Furniture Mounting
Slide the unit slightly forward or back, then tighten all four screws to secure it in place. Projector mounting Figure 2-5 — Mounting the YCS SW2 to a back rack To projector-mount the YCS SW2, three optional mounting kits are available for use with the YCS SW2. -
Page 11: Pmk 250 Projector Mount Kit
• For a typical (1.5” to 2.0” diameter) pole — You can #70-526-02) or white (part #70-526-03). use the supplied square U-bolt, which fi ts a typical Follow these steps to mount the YCS SW2 on the PMK 250 ceiling pole. bracket as follows: •... -
Page 12: Pmk 300 Projector Mount Kit
On the front mounting plate, the device is typically the PMK 300 Projector Mount Kit mounted on the inside of the bracket. • For the YCS SW2 unit, use two of the supplied 4-40 x Rear Panel Features 3/16 screws in opposite (diagonal) corners to secure the device to the bracket. -
Page 13: Wiring The Power Connector
Strip the jacket to expose 0.2 inches (5 mm) of the conductors. The 5-pin, 3.5 mm captive screw connector is used for optional push-button remote control of the YCS SW2, and/or to enable CAUTION Exposing more than 0.2” (5 mm) of the copper autoswitching between inputs connected to the YCS. -
Page 14: Contact Closure
Figure 2-15 — YCS SW2 front panel The YCS SW2 front panel contains the following: Auto Switch LED — This green LED lights when autoswitching is enabled. When this LED is lit, the Input Selection buttons are disabled (although their indicator LEDs continue to light to indicate which input has been selected). -
Page 15: Selecting An Input By Using The Buttons
Selecting an Input by Using the Buttons YCS SW2 The YCS SW2 has two inputs available — one composite video and one S-video. You can select either of these inputs by pressing the appropriate button on the front panel. When an input is selected, its LED lights and remains lit while its input source is active. -
Page 16: Specifi Cations
Contact closure pin confi gurations 1 = input 1, 2 = input 2, 3 = GND, 4 and 5 = autoswitch selection YCS SW2 • Specifi cations, Part Numbers, and Accessories YCS SW2 • Specifi cations, Part Numbers, and Accessories... -
Page 17: Included Parts
Specifi cations, Part Numbers, Accessories, cont’d Included Parts These items are included in each order for a YCS SW2: Included parts Part numbers to reorder YCS SW2 switcher 60-757-01 12 VDC, 1A external power supply with U. S. style power cord...
