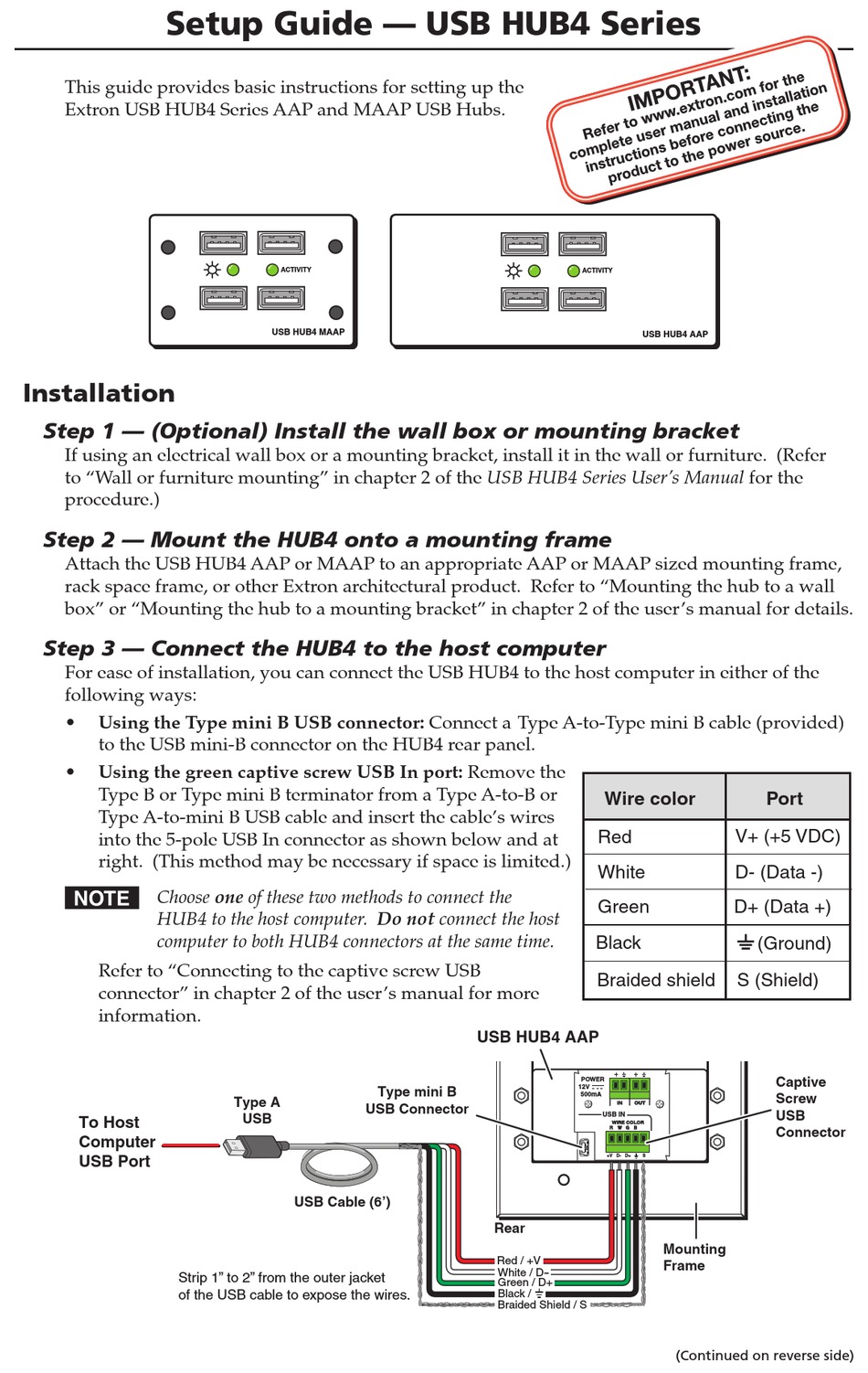

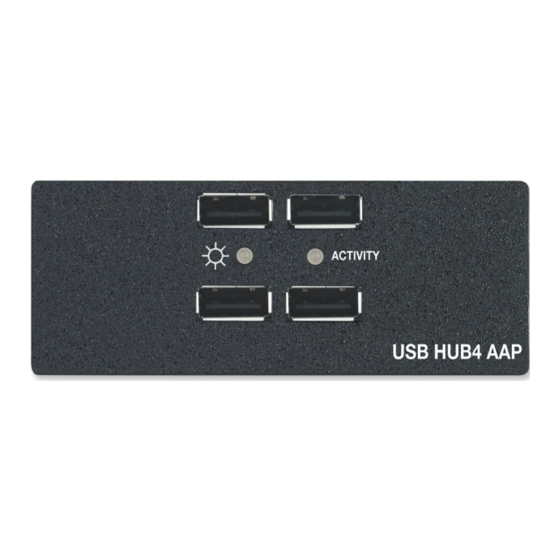

Setup Guide — USB HUB4 Series
This guide provides basic instructions for setting up the
Extron USB HUB4 Series AAP and MAAP USB Hubs.
ACTIVITY

Installation

Step 1 — (Optional) Install the wall box or mounting bracket
If using an electrical wall box or a mounting bracket, install it in the wall or furniture. (Refer
to "Wall or furniture mounting" in chapter 2 of the USB HUB4 Series User's Manual for the
procedure.)
Step 2 — Mount the HUB4 onto a mounting frame
Attach the USB HUB4 AAP or MAAP to an appropriate AAP or MAAP sized mounting frame,
rack space frame, or other Extron architectural product. Refer to "Mounting the hub to a wall
box" or "Mounting the hub to a mounting bracket" in chapter 2 of the user's manual for details.
Step 3 — Connect the HUB4 to the host computer
For ease of installation, you can connect the USB HUB4 to the host computer in either of the
following ways:
• Using the Type mini B USB connector: Connect a Type A-to-Type mini B cable (provided)
to the USB mini-B connector on the HUB4 rear panel.
• Using the green captive screw USB In port: Remove the
Type B or Type mini B terminator from a Type A-to-B or
Type A-to-mini B USB cable and insert the cable's wires
into the 5-pole USB In connector as shown below and at
right. (This method may be necessary if space is limited.)
Choose one of these two methods to connect the
N
HUB4 to the host computer. Do not connect the host
computer to both HUB4 connectors at the same time.
Refer to "Connecting to the captive screw USB
connector" in chapter 2 of the user's manual for more
information.
To Host
Computer
USB Port
Strip 1" to 2" from the outer jacket
of the USB cable to expose the wires.
ACTIVITY
USB HUB4 MAAP
HUB4 USB MAAP
Type mini B
Type A
USB Connector
USB
USB Cable (6')
ACTIVITY
ACTIVITY
HUB4 USB AAP
Wire color
Red
White
Green
Black
Braided shield
USB HUB4 AAP
POWER
12V
500mA
IN IN OUT OUT
USB IN
WIRE COLOR WIRE COLOR
R R W G B W G B
+V D- D+
Rear
Red / +V
White / D-
Green / D+
Black /
Braided Shield / S
USB HUB4 AAP
Port
V+ (+5 VDC)
D- (Data -)
D+ (Data +)
_
(Ground)
S (Shield)
Captive
Screw
USB
Connector
S
Mounting
Frame
(Continued on reverse side)
