B EPIC/SCARLET MODULE
COMPATIBILITY
This chapter provides information on EPIC/SCARLET
compatibility.

EPIC/SCARLET MODULE TYPES AND PRIORITY

Attach modules to the EPIC/SCARLET BRAIN
position, and access to batteries, media, and controls.

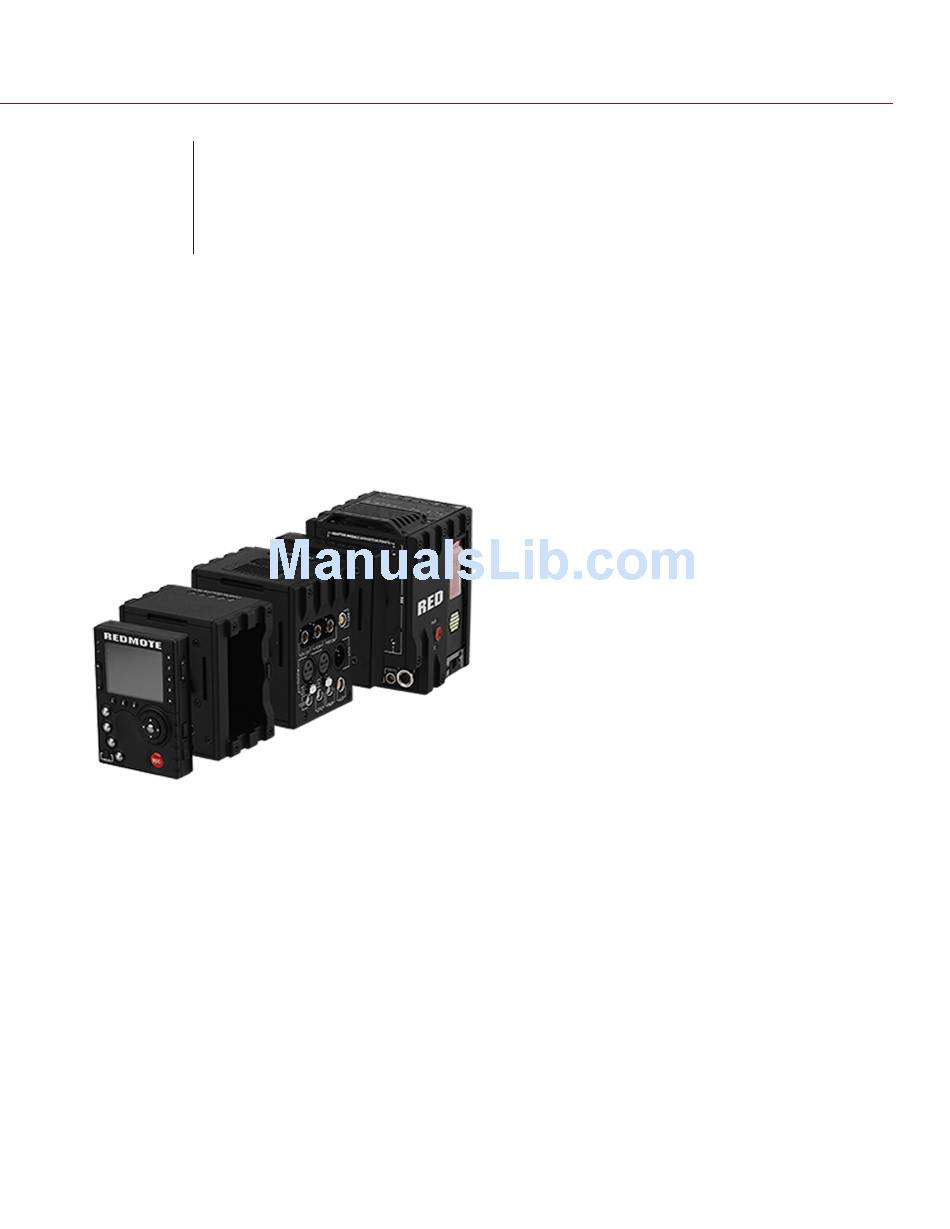

Figure: DSMC Module Priority
Attach modules to the back of the BRAIN in the following order:
1. Adaptor Modules: The +1 Adaptor Module or Module Adaptor provide support for other modules.
2. Battery Modules: The Pro Battery Module (Dual), the Pro Battery Module (Quad), and the REDVOLT XL Module
are examples of rear battery modules.
3. Battery Modules: The Pro Battery Module (Dual), the Pro Battery Module (Quad), and the REDVOLT XL Module
are examples of rear battery modules.
4. Media Modules: The Rear SSD Module is the only rear mountable media module.
5. Other Devices: The Backpack Quickplate (Short) with Backpack Base Plate, R.C.P.™ Bridge, or REDMOTE.
