SmallHD User Manual

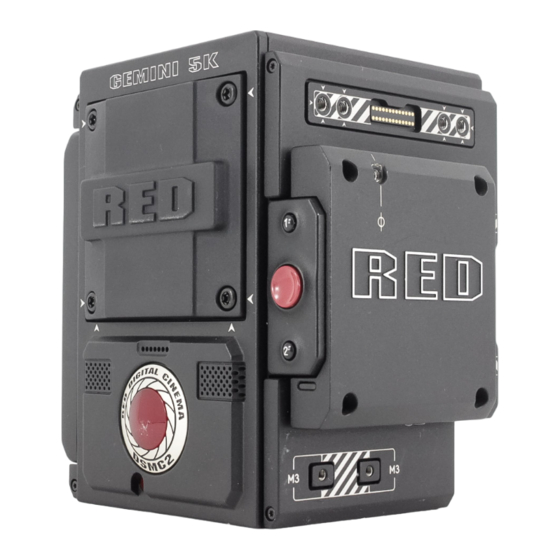

RED® DSMC2 Camera Control
RED DSMC2 camera control is available as a license on compatible Camera Control monitors and is
compatible with cameras that have a
applicable) must be purchased as well to allow the monitor to communicate with the camera. The
license and cable are
*It is one license per monitor for control, it is not transferable. You will need both the software and
control cable to use this feature with your compatible camera.
Activating Your License
Your license kit comes with a card that has your activation code as a special link in a QR code. Scan this
link with your smartphone or enter it on a computer to go to the activation webpage.
*If you purchase the software only online, you will be emailed this Activation code.
On your monitor, go to Settings and scroll down to System > Licenses. Tap the button to add a new
license.
Your monitor will display a token. Enter this token on the activation webpage. The webpage will then
display your activation key and all you need to do is to enter it on the monitor. Once entered your
monitor will add a Camera Control page where you can control your camera.
*Once a License is activated it can not be inactivated or transferred toa different monitor.
Connecting Your Camera
Connect your USB cable to the port on the back of your Cine 7, below the battery plate. Tighten the
locking connector into the adjacent screw for security. Connect the other end of the cable to your
camera.
You will need to enable serial communication on your camera prior to connecting the monitor
and after any firmware updates on your camera. Try Menu > Settings > Setup >
Communication > Serial and choose Red Command Protocol
Once all physical connections are made, go to your monitor's camera control page. If you have more
than one camera control license, choose the Red license, then click the Connect button.
RED® DSMC2 Camera Control
DSMC2
available bundled
directly from SmallHD or authorized resellers.
Brain. A specific Controller and USB adapter (if
Page 1
Advertisement
Table of Contents
Related Manuals for RED DSMC2
Summary of Contents for RED DSMC2
- Page 1 SmallHD User Manual RED® DSMC2 Camera Control RED DSMC2 camera control is available as a license on compatible Camera Control monitors and is compatible with cameras that have a DSMC2 Brain. A specific Controller and USB adapter (if applicable) must be purchased as well to allow the monitor to communicate with the camera. The...
- Page 2 FEATURES Supported control will depend on your version of RED camera. Certain cameras have features others do not. You should have control over all aspects available minus the ones listed below.
- Page 3 SmallHD User Manual You can also use the RED overlay sent down the SDI: RED Menus > Monitoring > HD-SDI > Auto-Hide Menus Option The drawback of this method is it reduces your screen real estate and the actual image from the camera a bit.
