RED DSMC SIDE HANDLE Operation Manual page 77

RED DSMC POWER OPERATION GUIDE
4-PIN TO 2-PIN ADAPTOR CABLE

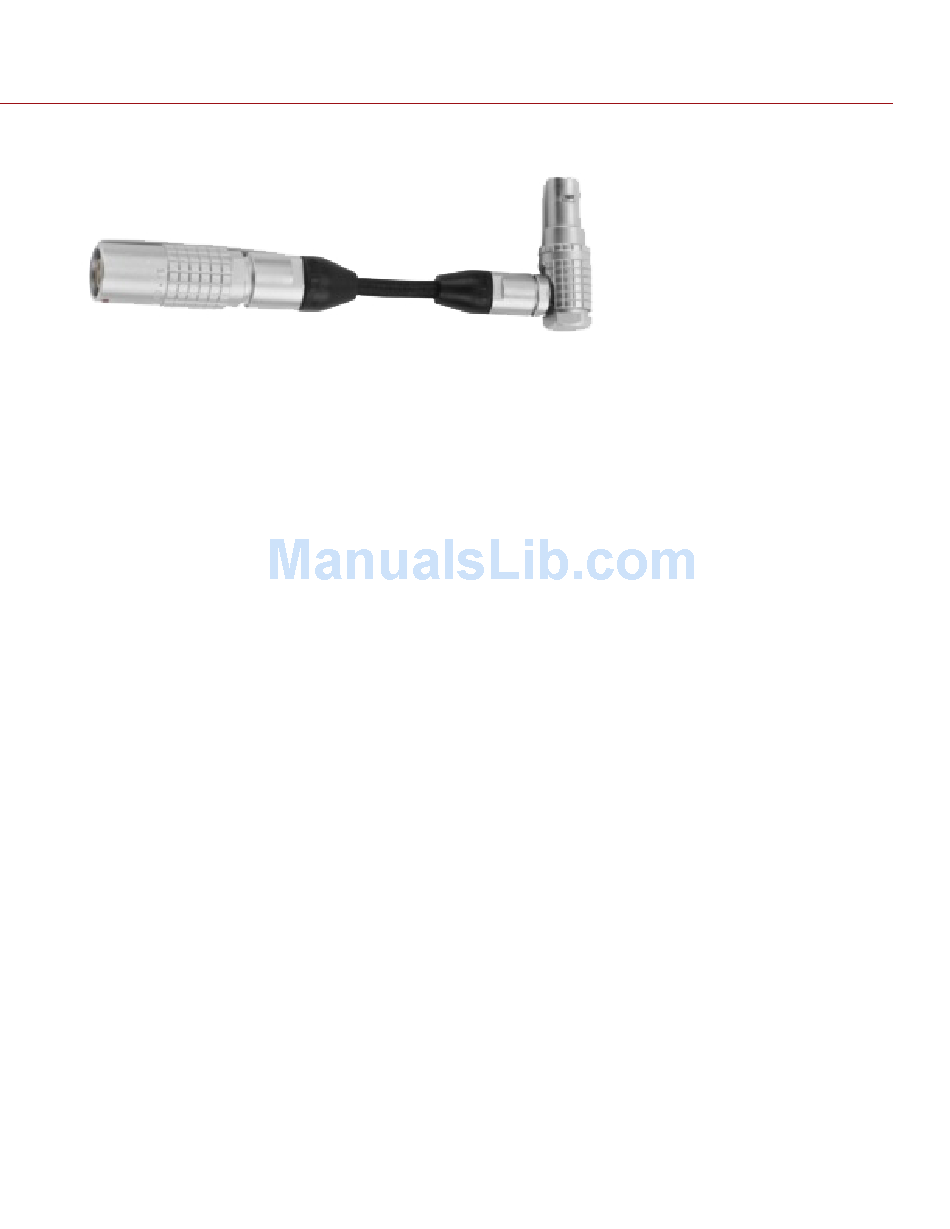

Figure: 4-Pin to 2-Pin Adaptor Cable
The 4-Pin to 2-Pin Adaptor Cable enables you to power 2-pin based accessories from the +1 Adaptor Module or Pro
I/O Module.
NOTE: The 4-Pin to 2-Pin Adaptor Cable is compatible with EPIC and SCARLET cameras.
2-PIN 1B LEMO-TO-FLYING LEAD CABLE
The 2-Pin 1B LEMO-to-Flying Lead Cable provides a 1B LEMO connector and flying leads for custom cable creation.
Create a custom cable for powering camera accessories using 1B 12 V ports available on DSMC modules.
NOTE: The 2-Pin 1B Lemo-to-Flying Lead Cable is compatible with EPIC and SCARLET cameras.
2B-TO-1B POWER ADAPTOR CABLE
The 2B-to-1B Power Adaptor Cable enables support for RED ONE power accessories that use 2B LEMO connectors.
NOTE: The 2B-to-1B Adaptor Cable is compatible with EPIC, SCARLET, WEAPON, SCARLET-W, RAVEN, and EPIC-
W cameras.
RED 2B-TO-1B LEMO POWER CABLE (10')
®
The RED 2B-To-1B LEMO Power Cable (10') is a high-quality cable for powering your DSMC or DSMC2 camera
from a RED BRICK Charger.
NOTE: The RED 2B-To-1B LEMO Power Cable is compatible with EPIC, SCARLET, WEAPON, SCARLET-W, RAVEN,
and EPIC-W cameras.
C O PYR I G HT © 2 0 1 7 R ED.C O M , LLC 9 5 5 - 0 0 3 8 , R EV - AD | 7 7
