RED DSMC POWER OPERATION GUIDE
RED BRICK CHARGER CONNECTIONS AND FEATURES

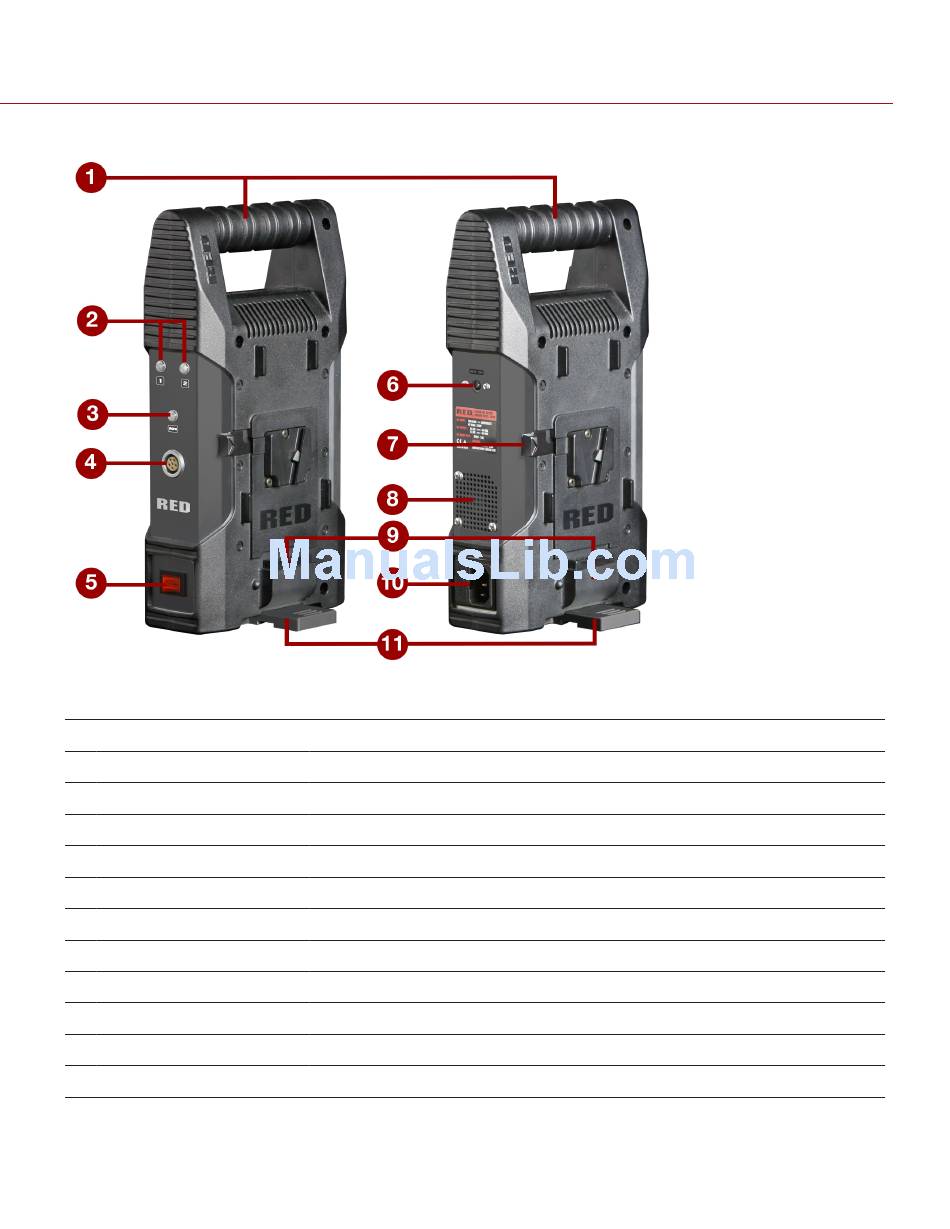

Figure: RED BRICK Charger
#
CONNECTOR/FEATURE
1
Carrying handle
2
Battery charging LEDs
3
Auxiliary port LED
4
LEMO auxiliary port
5
Power switch
6
DC input
7
Battery release
8
Ventilation
9
Battery contact connector
10 AC main input
11 Rotating support foot
C O PYR I G HT © 2 0 1 7 R ED.C O M , LLC
DESCRIPTION
Robust carrying handle
Indicates battery charge state
Indicates auxiliary connection state
13.8 V/100 W
Toggles power to the charger on/off
22 V/5 A Max
Eject battery from charger
Provides airflow to cool internal components
RED BRICK or REDVOLT-V seating connector
IEC power cable in
90° rotation for balanced free-standing operation with batteries connected
9 5 5 - 0 0 3 8 , R EV - AD   |   7 1
