v The SAN Volume Controller is operational, but has not been assigned to any
Disconnected
v The SAN Volume Controller is operational, but has not been assigned to any
Failed
v The SAN Volume Controller is not operational. A hardware fault is preventing the
Create cluster?
Clusters can be created from the Create Cluster menu.
This field allows you to create a new SAN Volume Controller cluster. Press Select
to go to the create cluster menu. Figure 41 shows the create cluster menu
sequence.

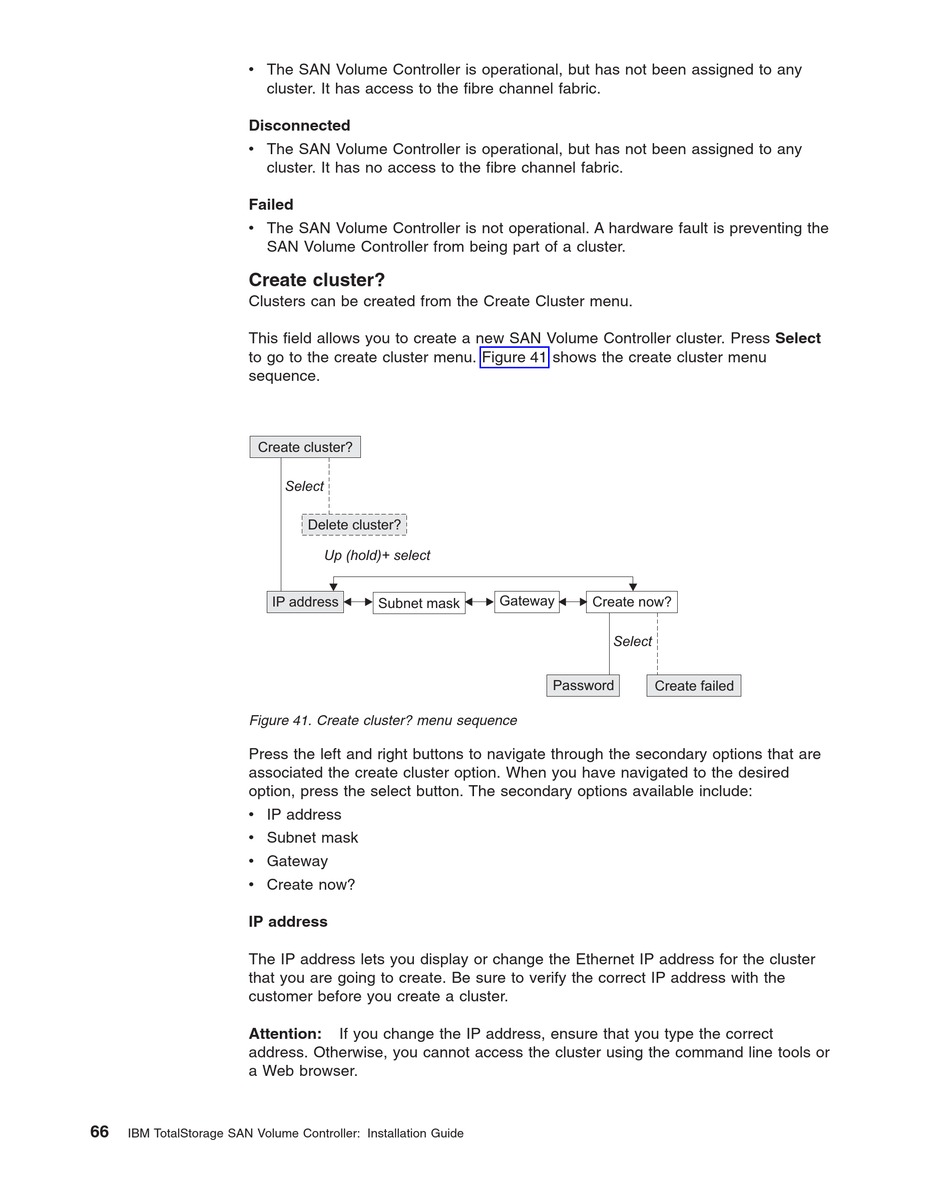

Figure 41. Create cluster? menu sequence
Press the left and right buttons to navigate through the secondary options that are
associated the create cluster option. When you have navigated to the desired
option, press the select button. The secondary options available include:
v IP address
v Subnet mask
v Gateway
v Create now?
IP address
The IP address lets you display or change the Ethernet IP address for the cluster
that you are going to create. Be sure to verify the correct IP address with the
customer before you create a cluster.
Attention:
address. Otherwise, you cannot access the cluster using the command line tools or
a Web browser.
66
IBM TotalStorage SAN Volume Controller: Installation Guide
cluster. It has access to the fibre channel fabric.
cluster. It has no access to the fibre channel fabric.
SAN Volume Controller from being part of a cluster.
Create cluster?
Select
Delete cluster?
Up (hold)+ select
IP address
Subnet mask
If you change the IP address, ensure that you type the correct
Gateway
Create now?
Select
Password
Create failed
