Main Options
Cluster Status
Node Status
Ethernet
FC Port-1 FC Port-2
Select Language?

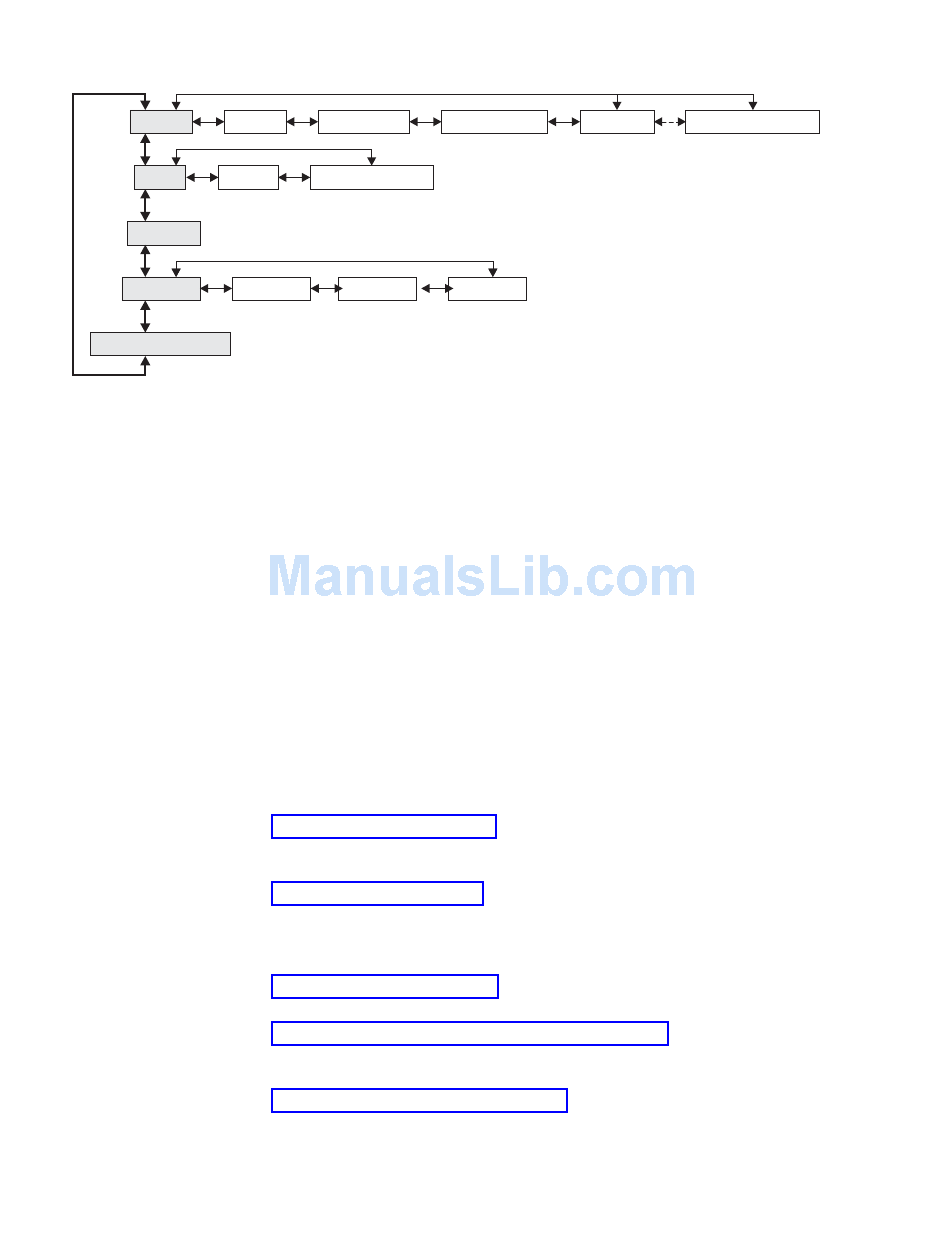

Figure 39. Menu options sequence
Use the Left and Right buttons to navigate through the secondary fields that are
associated with some of the main fields.
Note: Sometimes a message might not display fully on the screen. You might see
There are five main options available:
v Cluster
v Node
v Ethernet
v FC port-1 through 4
v Select language
Secondary Options
IP address Subnet mask
Create cluster?
FC Port-3
a right angle bracket (>) in the right hand side of the display screen. If you
see a right angle bracket, press the right arrow button to scroll through the
display. This action displays the rest of the text. Press left arrow button to
scroll back. When there is no more text to display, you can move to the next
item in the menu by pressing the right arrow button.
Related concepts
"Cluster options" on page 64
The main cluster option from the menu can display the cluster name, IP
address, or it may be blank.
"Node options" on page 65
The node option displays the identification number or name of the SAN Volume
Controller.
Related reference
"Ethernet option" on page 68
The Ethernet option displays the operational states of the Ethernet port.
"Fibre channel port-1 through 4 option" on page 68
The FC port-1 through 4 options display the operational status of the fibre
channel ports.
"Select language? option" on page 69
The language displayed can be changed from the menu.
