Installation

Electrical Connections

WARNING: Electrocution may occur when working on ener-
gized circuits. Disconnect power at the main breaker or service
disconnect switch, then lock out and tag it to indicate that work
is being performed on the circuit.
1. Check the electrical specifications on the machine data plate then remove the lower
front panel to access the power input terminal block on the base of the machine.
2. Do not use a power cord and plug or connect to a standard or Ground Fault Interrupter
(GFI), electrical outlet or a Ground Fault Interrupter (GFI) breaker. The dishwasher must
be hard-wired to a junction box or service disconnect switch.
40˚F/22˚C Rise Electric Booster (4kW)
Minimum
Supply
Rated
Circuit
Elec. Specs Amps Ampacity
208/60/1 22 30
240/60/1 24 30
2
CAUTION:
Permanent damage to the dishwasher may occur if it
is improperly connected to the main electrical supply. Never install
a power cord and plug to the dishwasher or connect the dishwasher
to a standard or GFI electrical outlet or GFI electrical breaker. The
dishwasher must be hard-wired to a dedicated appropriately sized
circuit breaker or service disconnect switch.
70˚F/39˚C Rise Electric Booster (6kW)
Maximum
Overcurrent
Protective
Device
Elec. Specs
(Breaker Size)
30 208/60/1
30 240/60/1

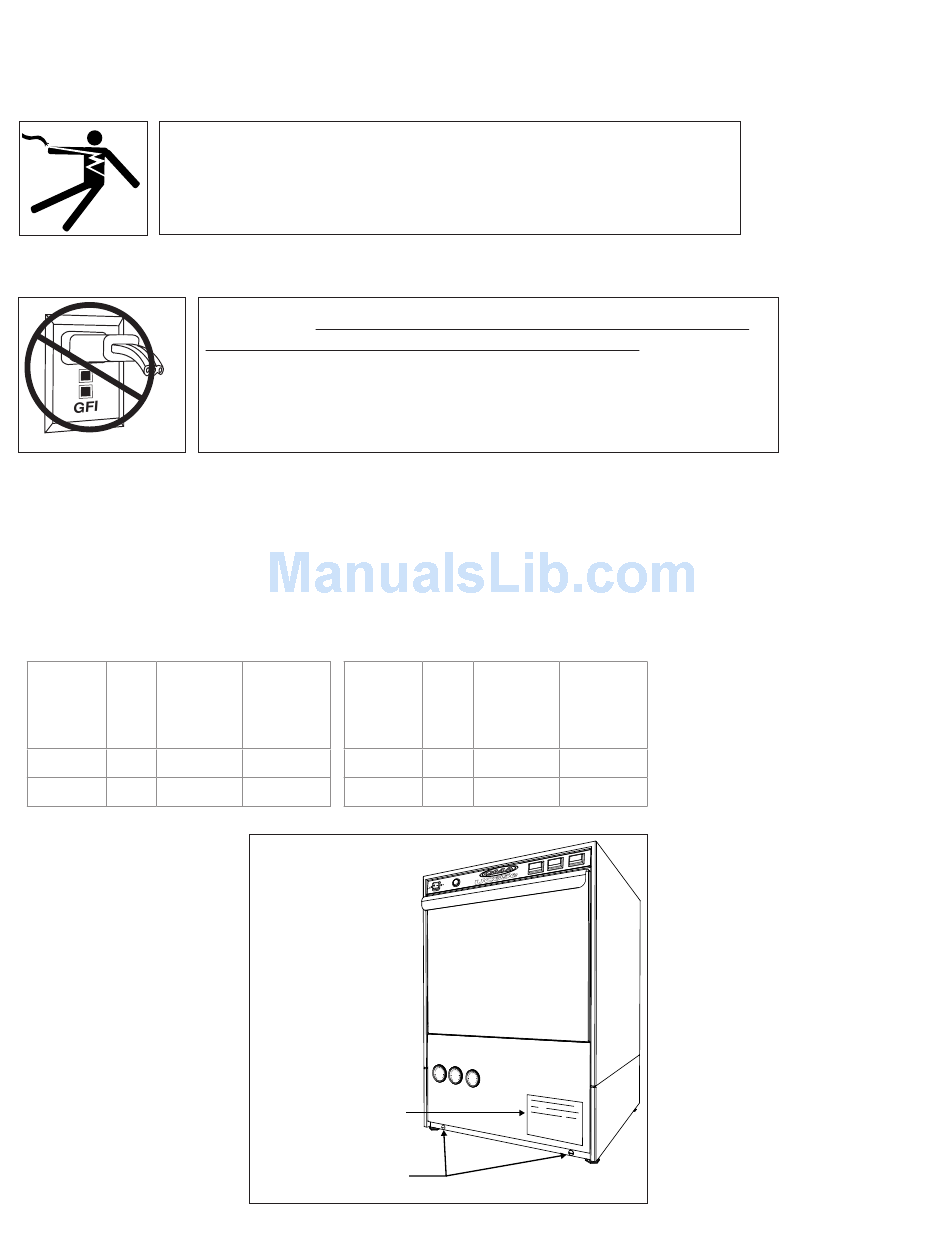

DATA PLATE
FRONT PANEL
SCREW LOCATION
Maximum
Overcurrent
Minimum
Protective
Supply
Device
Rated
Circuit
Amps Ampacity
(Breaker Size)
29 40 40
31 40 40
