8

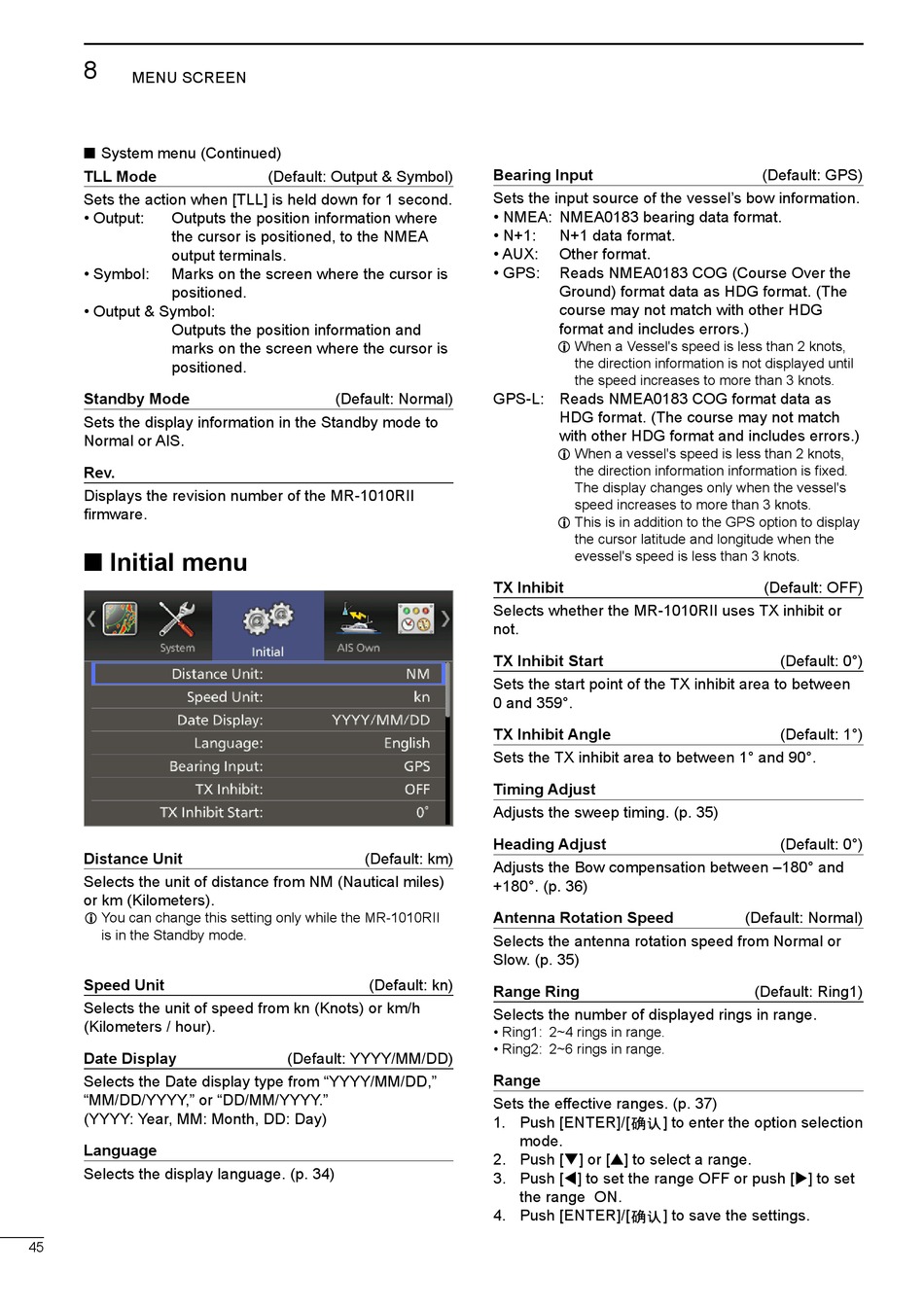

MENU SCREEN
■ System menu (Continued)
TLL Mode
Sets the action when [TLL] is held down for 1 second.
• Output: Outputs the position information where
the cursor is positioned, to the NMEA
output terminals.
• Symbol: Marks on the screen where the cursor is
positioned.
• Output & Symbol:
Outputs the position information and
marks on the screen where the cursor is
positioned.
Standby Mode
Sets the display information in the Standby mode to
Normal or AIS.
Rev.
Displays the revision number of the MR-1010RII
firmware.

■ Initial menu

Distance Unit
Selects the unit of distance from NM (Nautical miles)
or km (Kilometers).
L You can change this setting only while the MR-1010RII
is in the Standby mode.
Speed Unit
Selects the unit of speed from kn (Knots) or km/h
(Kilometers / hour).
Date Display
Selects the Date display type from "YYYY/MM/DD,"
"MM/DD/YYYY," or "DD/MM/YYYY."
(YYYY: Year, MM: Month, DD: Day)
Language
Selects the display language. (p. 34)
45
(Default: Output & Symbol)
(Default: Normal)
(Default: km)
(Default: kn)
(Default: YYYY/MM/DD)
Bearing Input
Sets the input source of the vessel's bow information.
• NMEA: NMEA0183 bearing data format.
• N+1: N+1 data format.
• AUX: Other format.
• GPS: Reads NMEA0183 COG (Course Over the
Ground) format data as HDG format. (The
course may not match with other HDG
format and includes errors.)
L When a Vessel's speed is less than 2 knots,
the direction information is not displayed until
the speed increases to more than 3 knots.
GPS-L: Reads NMEA0183 COG format data as
HDG format. (The course may not match
with other HDG format and includes errors.)
L When a vessel's speed is less than 2 knots,
the direction information information is fixed.
The display changes only when the vessel's
speed increases to more than 3 knots.
L This is in addition to the GPS option to display
the cursor latitude and longitude when the
evessel's speed is less than 3 knots.
TX Inhibit
Selects whether the MR-1010RII uses TX inhibit or
not.
TX Inhibit Start
Sets the start point of the TX inhibit area to between
0 and 359°.
TX Inhibit Angle
Sets the TX inhibit area to between 1° and 90°.
Timing Adjust
Adjusts the sweep timing. (p. 35)
Heading Adjust
Adjusts the Bow compensation between –180° and
+180°. (p. 36)
Antenna Rotation Speed
Selects the antenna rotation speed from Normal or
Slow. (p. 35)
Range Ring
Selects the number of displayed rings in range.
• Ring1: 2~4 rings in range.
• Ring2: 2~6 rings in range.
Range
Sets the effective ranges. (p. 37)
1. Push [ENTER]/[ ] to enter the option selection
mode.
2. Push [q] or [p] to select a range.
3. Push [t] to set the range OFF or push [u] to set
the range ON.
4. Push [ENTER]/[ ] to save the settings.
(Default: GPS)
(Default: OFF)
(Default: 0°)
(Default: 1°)
(Default: 0°)
(Default: Normal)
(Default: Ring1)
