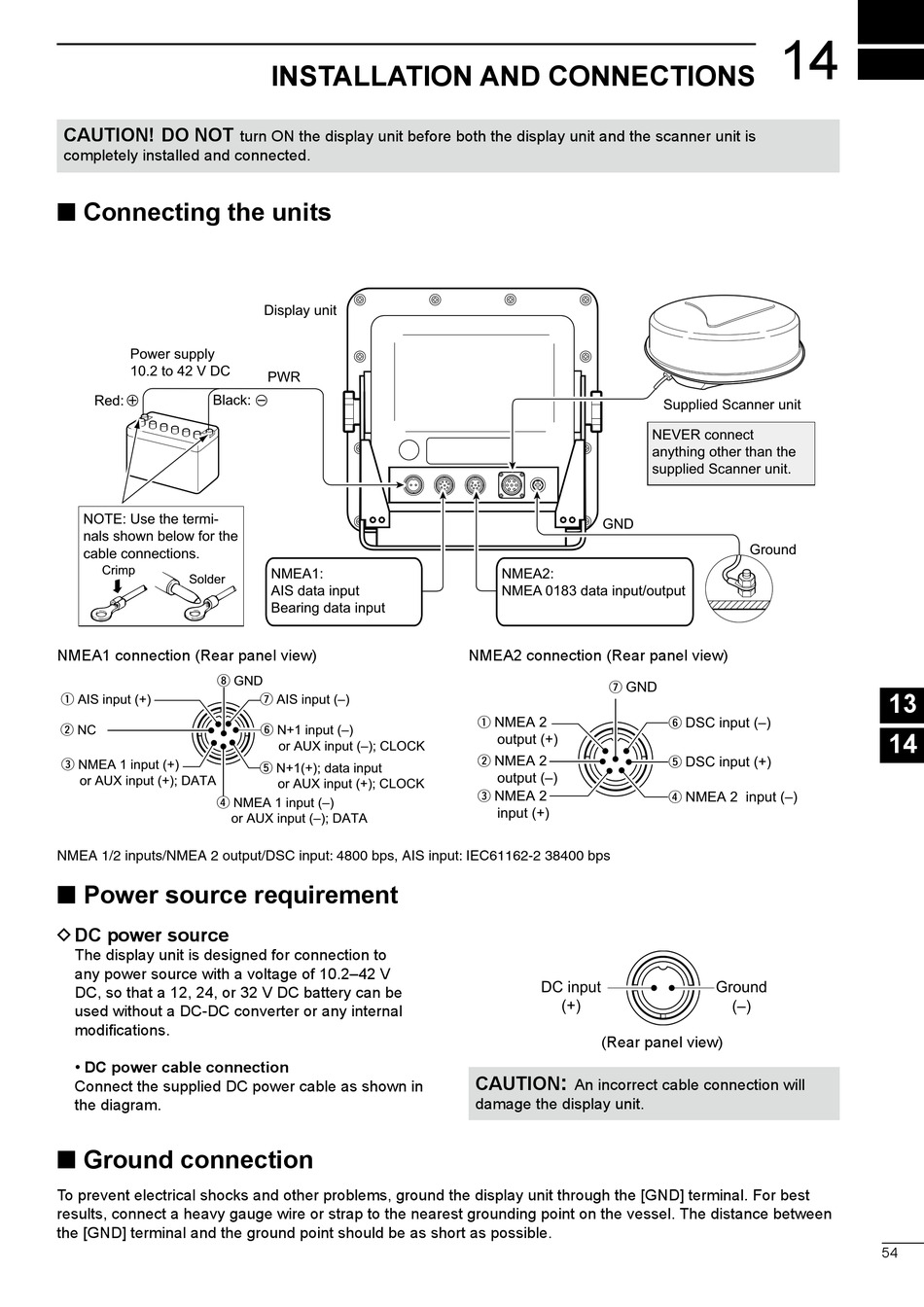

■ Connecting the units

Power supply
10.2 to 42 V DC
Black: _
Red:
+
NOTE: Use the termi-
nals shown below for the
cable connections.
Crimp
Solder
NMEA1 connection (Rear panel view)
i GND
q AIS input (+)
w NC
e NMEA 1 input (+)
or AUX input (+); DATA
r NMEA 1 input (–)
or AUX input (–); DATA
NMEA 1/2 inputs/NMEA 2 output/DSC input: 4800 bps, AIS input: IEC61162-2 38400 bps

■ Power source requirement

D DC power source
The display unit is designed for connection to
any power source with a voltage of 10.2–42 V
DC, so that a 12, 24, or 32 V DC battery can be
used without a DC-DC converter or any internal
modifications.
• DC power cable connection
Connect the supplied DC power cable as shown in
the diagram.

■ Ground connection

To prevent electrical shocks and other problems, ground the display unit through the [GND] terminal. For best
results, connect a heavy gauge wire or strap to the nearest grounding point on the vessel. The distance between
the [GND] terminal and the ground point should be as short as possible.

INSTALLATION AND CONNECTIONS

turn ON the display unit before both the display unit and the scanner unit is
Display unit
PWR
NMEA1:
AIS data input
Bearing data input
u AIS input (–)
y N+1 input (–)
or AUX input (–); CLOCK
t N+1(+); data input
or AUX input (+); CLOCK
GND
NMEA2:
NMEA 0183 data input/output
NMEA2 connection (Rear panel view)
GND
u
NMEA 2
q
output (+)
NMEA 2
w
output (–)
NMEA 2
e
input (+)
DC input
(+)
(Rear panel view)
:
CAUTION
An incorrect cable connection will
damage the display unit.
