PIE 820-ELITE Operating Instructions Manual

Multifunction process calibrator ma,v,ph,tc,?,rtd,freq,pressure
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

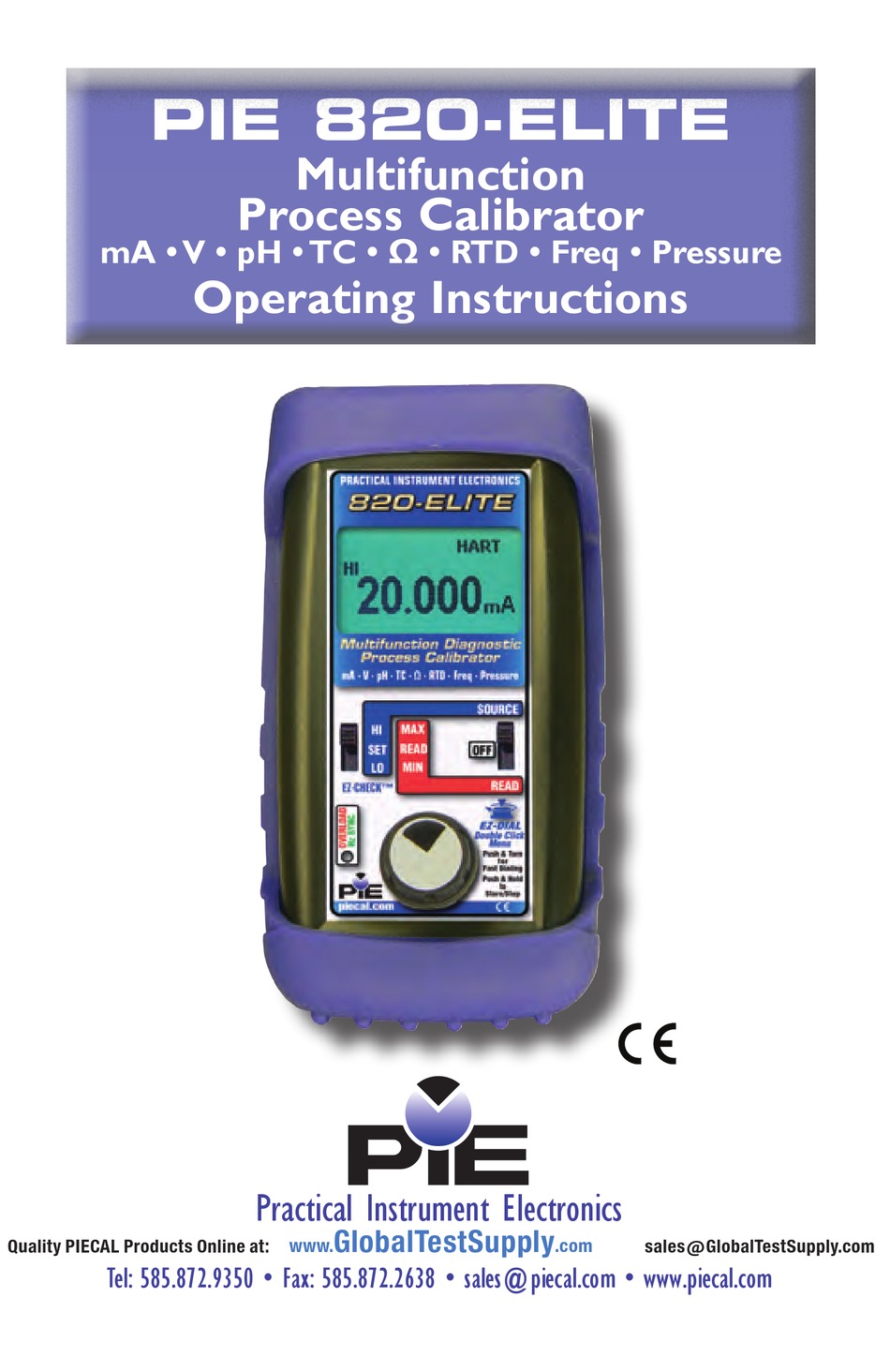

PIE 820-ELITE
PIE 820-ELITE
mA • V • pH • TC • Ω • RTD • Freq • Pressure
mA • V • pH • TC • Ω • RTD • Freq • Pressure
Quality PIECAL Products Online at:
Tel: 585.872.9350 • Fax: 585.872.2638 • sales@piecal.com • www.piecal.com
Multifunction
Multifunction
Process Calibrator
Process Calibrator
Operating Instructions
Operating Instructions
Practical Instrument Electronics
GlobalTestSupply
82 East Main Street Suite 3.14 • Webster, NY 14580 USA
www.
.com
sales@GlobalTestSupply.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 820-ELITE and is the answer not in the manual?

Questions and answers

Related Manuals for PIE 820-ELITE

Summary of Contents for PIE 820-ELITE

  • Page 1 PIE 820-ELITE PIE 820-ELITE Multifunction Multifunction Process Calibrator Process Calibrator mA • V • pH • TC • Ω • RTD • Freq • Pressure mA • V • pH • TC • Ω • RTD • Freq • Pressure...

  • Page 2: Table Of Contents

    Contents General Operations Accessories ................3 Carrying Case, Boot & Changing Batteries ......4 Storing EZ-CHECK Outputs & Connections ......5 Basic Operation Switches & Knobs ..............6 Double Click Menus ..............8 Stepping & Ramping / Auto Off ..........10 Backlight ................
  • Page 3 The unique and intuitive EZ-DIAL Double Click Menu makes it easier to setup than other multifunction calibrators. Uses the same menus as the single function PIE Evolution Calibrators. Use it as a milliamp and voltage calibrator Source 0 to 24.000 mA, 0 to 10.250 V dc, -20.000 to 99.999 mV and -500.00 to 999.99 mV...
  • Page 4 Easy to read Turn on the backlight & easily see the display in dark areas. Quickly set any three outputs plus automatic stepping & ramping Easily set any value quickly with the adjustable “DIAL” plus store any three output settings for instant recall with the EZ-CHECK™...

  • Page 5: Accessories

    Accessories INCLUDED: Four “AA” Alkaline batteries, Certificate of Calibration Evolution Hands Free Carrying Case Part No. 020-0211 Blue Rubber Boot Part No. 020-0213 Evolution mA/V Test Leads - one pair: Part No. 020-0207 with banana plug & alligator clips Evolution RTD Wire Kit Part No.
  • Page 6 PIE 820-ELITE comes with a carrying case designed for hands- free operation and a rubber boot with a built-in tilt stand. The PIE 820-ELITE is held in the case by elastic straps for use with the carrying case open. The tilt stand is easily raised by pulling the stand until it locks into place.
  • Page 7 (such as mid-range) using the SET position on the EZ-CHECK switch. Connections PIE 820-ELITE has banana jacks compatible with unshielded or retractable banana plugs. Included with your calibrator are: a pair of test leads with alligator clips for mA, V, pH & Hz connections.

  • Page 8: Basic Operation

    The values stored in the HI and LO positions are also used for Auto Stepping. READ: Slide the switch to the SET position. The PIE 820-ELITE will display the current reading from the sensor or device being measured. Slide the switch to MAX and the highest value measured since turn-on or reset will be displayed;...
  • Page 9 SELECTING FUNCTIONS The EZ-DIAL knob is used to setup the PIE 820-ELITE to match the instrument to be calibrated or signal to be measured. Each time you turn on the PIE 820-ELITE the LCD displays the fol- lowing screen for about 1 second followed by operating in the function used the last time it was operated.

  • Page 10: Double Click Menus

    Operating Instructions Double Click Menus Double click the EZ-DIAL knob to access the Double Click Menus to select each function and the options for each function. Available choices are shown in grey. Source mA & Simulate 2 Wire Transmitters > EXIT FUNCTION MODE SOURCE...
  • Page 11 Operating Instructions Double Click Menus Source & Read Thermocouples > EXIT FUNCTION UNITS °C °F T/C TYPE K E T R S B N L U G C D P COLD JUNC Source RTD > EXIT FUNCTION UNITS °C °F Pt 100 a=3850 [* RTD Types] WIRE MODE...
  • Page 12 Operating Instructions Double Click Menu - STEPPING, AUTO OFF & BACKLIGHT To change the Automatic Stepping settings Double click the DIAL KNOB at any time the unit is on and the following typical display (will be different for each FUNCTION) will appear for 15 seconds: >...
  • Page 13 Operating Instructions Double Click Menu - STEPPING, AUTO OFF & BACKLIGHT STEPS - pressing the knob will cycle through 2, 3, 5, 11 and RAMP. The endpoints of the steps or ramp are based on the values stored in the HI and LO EZ-CHECK outputs. 2 steps will automatically switch between the values stored in the HI &...
  • Page 14 MODE. Choose either mA or % and whether you need the 250Ω HART resistor active in the loop. Connect the output leads of the PIE 820-ELITE to the inputs of the device being calibrated, making sure to check polarity. Red lead to the plus (+) input and black lead to the minus (-) input.
  • Page 15 MODE. Choose either mA or % and whether you need the 250Ω HART resistor active in the loop. Connect the output leads of the PIE 820-ELITE to the inputs of the device being calibrated, making sure to check polarity. Red lead to the plus (+) input and black lead to the minus (-) input.

  • Page 16: Read Ma,

    MODE. Choose either mA or % and whether you need the 250Ω HART resistor active in the loop. Connect the red input lead (+) of the PIE 820-ELITE to the more positive point of the break and the black input to the more negative point.
  • Page 17 (+) input of the device and the black source lead to the minus (-). The PIE 820-ELITE supplies a nominal 24 volts DC at 24 mA to the 2 Wire Transmitter. The current passed by the transmitter will be accurately displayed by the PIE 820-ELITE.
  • Page 18 ELITE to the plus (+) input of the device and the black source lead from the mA (-) to the minus (-). The PIE 820-ELITE supplies a nominal 24 volts DC at 24 mA to the 2 Wire Transmitter or loop. The current passed by the transmitter will be accurately displayed by the 820-ELITE along with an indication of leakage current at the top of the display.
  • Page 19 LEAK ERROR = 00.28 LEAK ERROR = 12.280 OVER RANGE PWR MEAS PWR MEAS The PIE 820-ELITE is The PIE 820-ELITE is supplying the loop voltage. supplying the loop voltage. A calibrated transmitter is There is a control loop limiting the loop current to error.
  • Page 20 Select V for the FUNCTION and 10V or 80 mV for the RANGE. Connect the output leads of the PIE 820-ELITE to the inputs of the device being calibrated, making sure to check polarity. Red lead to the plus (+) input and black lead to the minus (-) input.
  • Page 21 Select V for the FUNCTION and 10V, 1V, 60V or 100 mV for the RANGE. Connect the red input lead (+) of the PIE 820-ELITE to the more positive point of the break and the black input to the more negative point.
  • Page 22 Connect the output leads of the PIE 820-ELITE to the inputs of the device being calibrated, making sure to check polarity. Red lead from the mV (+) jack of the 820-ELITE to the plus (+) input and black lead from the mV (-) jack to the minus (-) input. You may also use the optional adaptor jack (020-0###) if you require BNC connections.
  • Page 23 414.12 to -414.12 mV. Once the pH instrument has been adjusted against the PIE 820-ELITE reconnect the pH probe and check it against the proper buffer (typically 7 pH). If the instrument zero point requires more than the manufacturer’s recommendations (typically within 0.5 pH) it is time to clean or replace the probe.

  • Page 24: Thermocouple Source T/C

    T/C Type (J, K, T, E, R, S, B, N, G, C, D, L (J-DIN), U (T-DIN) or P (Platinel II) and internal COLD JUNC ON or OFF (ON is the default). Connect the PIE 820-ELITE to the inputs of the device being calibrated using the proper type of thermocouple wire via the miniature thermocouple socket.

  • Page 25: Read T/C Sensors

    T/C Type (J, K, T, E, R, S, B, N, G, C, D, L (J-DIN), U (T-DIN) or P (Platinel II) and COLD JUNC ON or OFF (ON is the default). Connect the PIE 820-ELITE to the inputs of the device being calibrated using the proper type of thermocouple wire via the miniature thermocouple socket.

  • Page 26: Resistance Source Resistance

    Select OHMS for the FUNCTION, 400Ω or 4000Ω for the RANGE. Disconnect all sensor wires from the devices to be calibrated and connect the PIE 820-ELITE to the inputs of the device using 2, 3 or 4 wires. Instantly output your SPAN and ZERO output settings by moving the EZ-CHECK switch between HI and LO.

  • Page 27: Read Resistance & Check Continuity

    For continuity the only choice is 2W. Disconnect all wires from the sensor and connect the PIE 820-ELITE to the inputs of the device using 2, 3 or 4 wires. If continuity is selected, resistance is measured up to 400.0Ω.
  • Page 28 RTD type. Disconnect all sensor wires from the devices to be calibrated and connect the PIE 820-ELITE to the inputs of the device using 2, 3 or 4 wires. Instantly output your SPAN and ZERO output settings by moving the EZ-CHECK switch between HI and LO.

  • Page 29: Read Rtd Sensors

    Disconnect all wires from the sensor and connect the PIE 820-ELITE to the inputs of the device using 2, 3 or 4 wires. Signals above the maximum scale are limited by protection circuitry with “OVERRANGE” flashed on the display and the red OVERLOAD LED lit.
  • Page 30 10000HZ, 1000HZ or 2000CPM for the RANGE. Disconnect all input wires from the devices to be calibrated and connect the PIE 820-ELITE to the input of the device matching polarity. The green HZ SYNC LED pulses in synch with the output pulses and may be used to calibrate optical pickups.

  • Page 31: Frequency

    10000HZ, 1000HZ or 2000CPM for the RANGE. Disconnect all input wires from the devices to be calibrated and connect the PIE 820-ELITE to the output of the device matching polarity. The green HZ SYNC LED pulses in synch with the input frequency.

  • Page 32: Read Pressure

    The following screen will appear each time pressure is selected to remind you that the switch on the Multical Pressure Module MUST be set to PSI for the PIE 820-ELITE to indicate the correct pressure. Failure to do so will result in the wrong pressure being indicated and possible damage to the pressure module.
  • Page 33 The word "TARE" appears on the display indicating that all measurements are relative to the pressure measured when the calibrator was zeroed. Pressure readings appear on the display of the 820-ELITE and are constantly updated. The PIE 820-ELITE measures the pressure and constantly updates the display with the current reading.

  • Page 34: Specifications

    Specifications General Operating Temp Range -20 to 60 °C (-5 to 140 °F) Storage Temp Range -30 to 60 °C (-22 to 140 °F) Temperature effect ≤ ± 0.01 %/°C of Full Scale Relative Humidity 10 % ≤RH ≤90 % (0 to 35 °C), Range Non-condensing 10 % ≤RH≤...
  • Page 35 Specifications Read mA Ranges and Resolution 0.000 to 24.000 mA or -25.00 to 125.00% of 4-20 mA Accuracy ≤ ± (0.02 % of Reading + 0.003 mA) Voltage burden ≤ 2V at 24 mA Overload/Current 25 mA nominal limit protection Source mA / Power &...
  • Page 36 Specifications Source V dc Ranges and Resolution -20.000 to 99.999 mV, -500.00 to 999.99 mV, 0.000 to 10.250V Accuracy ≤ ± (0.02 % of Reading + 0.01% Full Scale) Source Current ≥ 24 mA Sink Current > 16 mA Output Impedance <...
  • Page 37 Specifications RTD, OHMS and Continuity Read Resistance Ranges 0.00 to 401.00, 0.0 to 4010.0 Ohms Accuracy ±(0.02% of Reading + 0.075 Ohms) Excitation Current 1.0 mA to 401 Ohms, 0.6 mA to 4010 Ohms (nominal) Continuity 0.0 to 401.0 Ohms; Beeps from 0.0 to 100.0 Ohms RTD and OHMS Source 3 Wire &...
  • Page 38 Specifications Frequency Source Ranges 1 to 2000 CPM, 0.01 to 999.99 Hz, 0.1 to 9999.9 Hz, 0.001 to 20.000 kHz Accuracy ≤ ± (0.02 % of Reading + 0.01% Full Scale) Output Waveform Square Wave, Zero Crossing -1.0 to +5 V peak-to-peak ±10% Risetime (10 to 90% of <...

  • Page 39: Thermocouple Ranges & Accuracies

    Thermocouple Ranges & Accuracies Based on ±(0.03% of 80 mV) Degrees C °C Degrees F °F Range Range -200.0 to -50.0 ±0.5° -328.0 to -58.0 ±1.0° -50.0 to 300.0 ±0.2° -58.0 to 572.0 ±0.4° 300.0 to 900.0 ±0.3° 572.0 to 1652.0 ±0.6°...
  • Page 40 Thermocouple Ranges & Accuracies Based on ≤ ± (0.02 % of Reading + 0.01 mV) Degrees C °C Degrees F °F Range Range -18.3 to 100.0 ±2.0° -1.0 to 212.0 ±3.7° 100.0 to 350.0 ±1.4° 212.0 to 662.0 ±2.5° 350.0 to 1600.0 ±1.1°...
  • Page 41 Thermocouple Ranges & Accuracies Based on ≤ ± (0.02 % of Reading + 0.01 mV) Degrees C °C Degrees F °F Range Range -1.1 to 150.0 ±1.0° 30.1 to 302.0 ±1.8° 150.0 to 1100.0 ±0.7° 302.0 to 2012.0 ±1.3° 1100.0 to 1750.0 ±1.0°...

  • Page 42: Rtd Ranges & Accuracies

    RTD Ranges & Accuracies RTD Accuracy Based on ±(0.03% of Reading in Ohms + 0.075 Ohms) Degrees C Degrees F Type Range °C Range °F Pt 100 Ohm -200.0 to 0.0 ±0.2° -328.0 to 32.0 ±0.4° DIN/IEC/JIS 1989 0.0 to 340.0 ±0.3°...
  • Page 43 (3) years or a minimum of one (1) year from the date of shipment. Additional Information PIE Calibrators are manufactured in the USA. This product is calibrated on equipment traceable to NIST and includes a Certificate of Calibration. Test Data is available for an additional charge.
  • Page 44 ractical nstrument lectronics 82 East Main Street Suite 3.14 Webster, NY 14580 USA Tel: 585.872.9350 • Fax: 585.872.2638 sales@piecal.com • www.piecal.com Copyright © 2014 All rights reserved GlobalTestSupply 820-E-9002 - Rev B 27 May 2014 www. .com Quality PIECAL Products Online at: sales@GlobalTestSupply.com...
