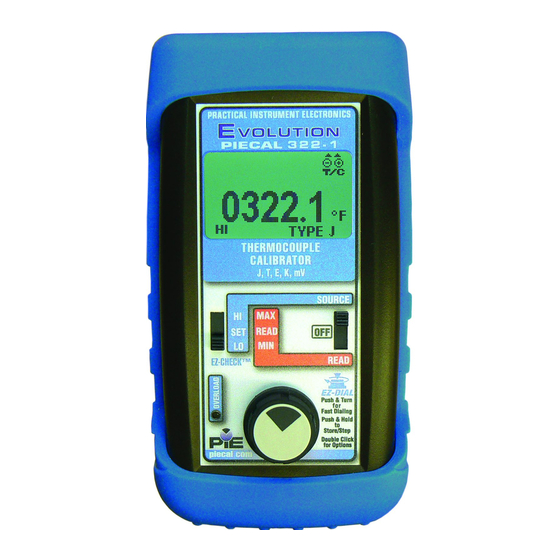

PIE PIECAL 322 Operating Instructions Manual

Automated thermocouple calibrator
Hide thumbs Also See for PIECAL 322:
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
• Easy to use
With the PIECAL 322-1 you can check & calibrate all
your thermocouple instruments and measure
thermocouple Sensors. Automatic indication of
connections on the display for simple hookups.
• Take it without into the shop, plant or field
Carry it without worry - it comes protected with a
rubber boot and rugged, low profile switch. Easy to
operate even in the dark areas of the plant with the
backlit display.
• Calibrate directly in temperature (°C & °F)
Stop carrying around a millivolt source and
thermocouple tables. The PIECAL 322-1 works with
the T/Cs you use including types J, K, T & E. Easily
set any value quickly to within 0.1° with the adjustable
digital potentiometer "DIAL" plus store any three
temperatures for instant recall with the EZ-CHECK™
switch.
• Calibrate quickly with automatic output stepping
Choose between 2, 3, 5, 11 and 21 steps to
automatically increment the output in 100%, 50%,
25%, 10% or 5% of span. Select the step time to
match your system from 5, 6, 7, 8, 10, 15, 20, 25, 30
and 60 seconds.
• Compatible with all process instruments
Connect directly to the thermocouple inputs of smart
transmitters, PLCs, DCS and multichannel recorders
and verify their outputs or displays.
• Measure Thermocouple Sensors
Trouble shoot sensor connections and find broken wires or high resistance junctions. Connect
your sensor and the PIECAL 322 automatically measures the thermocouple in degrees C or F.
Visit us at www.TestEquipmentDepot.com
PIECAL 322
PIECAL 322
Automated Thermocouple Calibrator
Automated Thermocouple Calibrator
Operating Instructions
Operating Instructions
Product Description
99 Washington Street
Melrose, MA 02176
Phone 781-665-1400
Toll Free 1-800-517-8431

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PIECAL 322 and is the answer not in the manual?

Questions and answers

Related Manuals for PIE PIECAL 322

Summary of Contents for PIE PIECAL 322

  • Page 1 • Measure Thermocouple Sensors Trouble shoot sensor connections and find broken wires or high resistance junctions. Connect your sensor and the PIECAL 322 automatically measures the thermocouple in degrees C or F. 99 Washington Street Melrose, MA 02176...

  • Page 2: Basic Operation

    Double click the knob to get into the PIECAL point checks select the “DIAL” position. The 322-1 Configuration Mode. Use configuration to PIECAL 322-1 will remember the last “DIAL” select °C or °F, T/C Type, Backlight On/Off, Step value, even with the power off.

  • Page 3: Temp Units

    SOURCE READ Millivolt READ The PIECAL 322 has two banana jacks mounted Push & Turn Fast Dialing in the top end of the housing. These jacks are not Push & Hold...
  • Page 4 (white) miniature thermocouple connector or through the banana jacks with cooper wire. The PIECAL 322 measures the temperature signal and constantly updates the display with the current temperature reading. Move the EZ-CHECK switch to MAX to see the highest temperature reading and to MIN to see the lowest temperature reading.

  • Page 5: Automatic Stepping

    Storing EZ-CHECK Outputs STORING HI and LO EZ-CHECK Outputs Choose this function to provide a simulated thermocouple signal into controllers, temperature transmitters, indicators or any other input device that measure thermocouple sensors. 1) Store your high (SPAN) output temperature by moving the EZ-CHECK switch to the HI position and turn the EZ-Dial knob until the desired temperature is on the display.

  • Page 6: Warranty

    The equipment will be repaired, replaced or adjusted at our option. The liability of Practical Instrument Electronics (PIE) is restricted to that given under our warranty. No responsibility is accepted for damage, loss or other expense incurred through sale or use of our equipment.

  • Page 7: Additional Information

    PIECAL 322-1 Specifications (Unless otherwise indicated all specifications are rated from a nominal 23 °C, 70 % RH for 1 year from calibration) General Accuracy ±(0.008% of Reading + 0.006 mV) Millivolt Range -13.000 to 80.000 mV Cold Junction Compensation ±...
  • Page 8 Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 TestEquipmentDepot.com...
