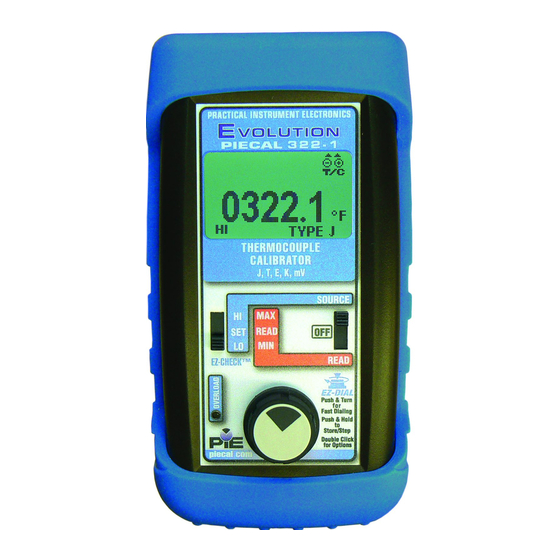

PIE PIECAL 322 Field Calibration Procedure

Hide thumbs Also See for PIECAL 322:

Advertisement

Quick Links

Download this manual
Created by: PB-G
Rev.
Date
Appd BRIEF CHANGE DESCRIPTION
A
2-3-2010
MJK
B
2-4-2010
MJK
C
7-22-2014
PBG

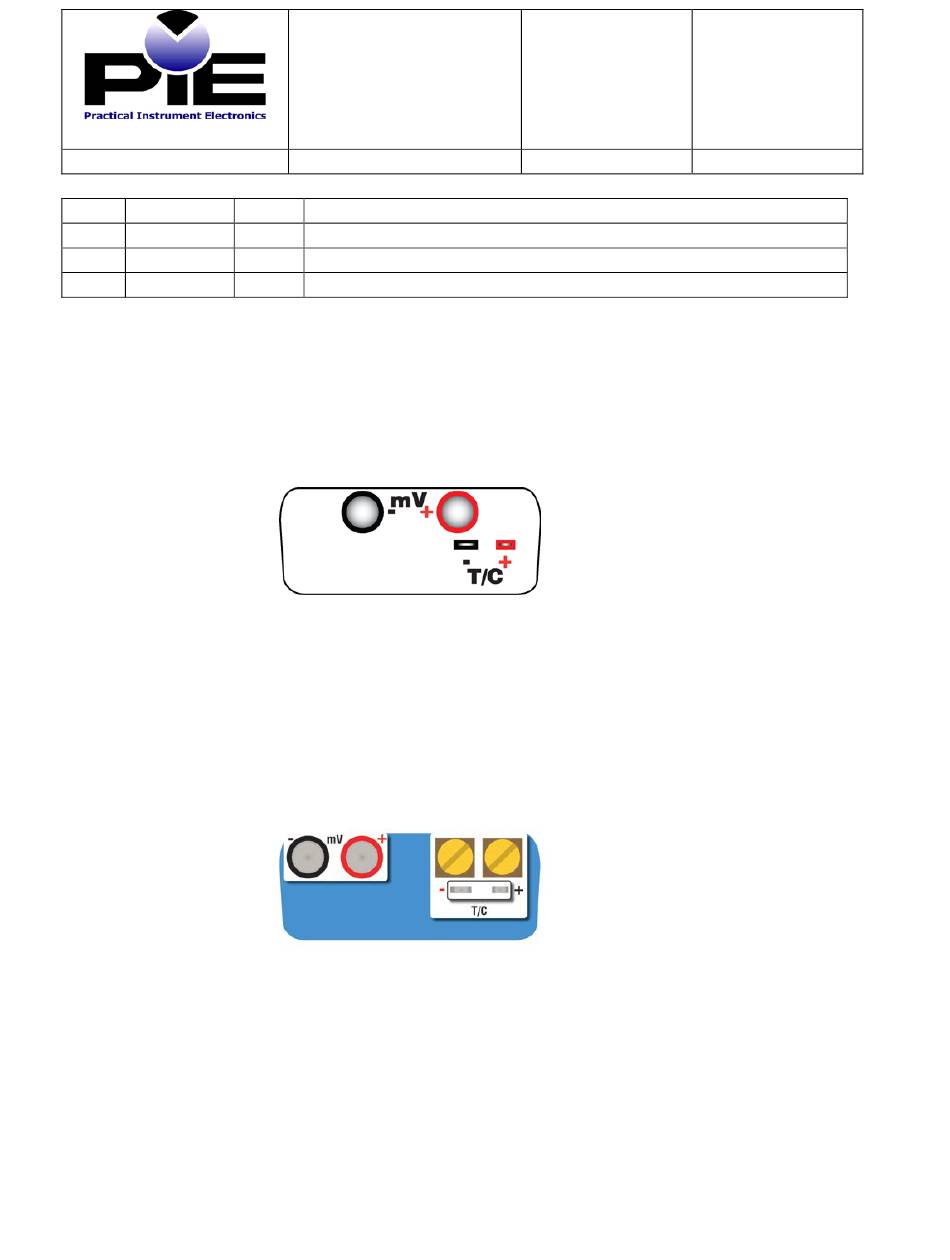

Note: There are two versions of the PIECAL 322 and 422
If the end panel of the PIECAL 322 or 422 only has a socket for miniature thermocouple
connectors and two sockets for banana jacks and the firmware shown at turn on is 2.## or below
follow the procedure that begins on page 2.
If the end panel of the PIECAL 322 or 422 has brass blocks with screws for attaching bare
thermocouple wires, a socket for miniature thermocouple connectors, and two sockets for banana
jacks and the firmware shown at turn on is 3.## or above follow the procedure that begins on
page 6.
PIECAL 322 & 422
FIELD
CALIBRATION
PROCEDURE
DATE: 7-22-2014
Initial Release
Minor corrections
Add section for new board with brass blocks & screws
DOCUMENT
82 E Main Sreet Suite 3.14
NO.
Webster New York 14580
Phone:
(585) 872-9350
322-0300
Fax:
(585) 872-2638
Sheet 1 of 11

Advertisement

loading
Need help?

Need help?

Do you have a question about the PIECAL 322 and is the answer not in the manual?

Questions and answers

Related Manuals for PIE PIECAL 322

Summary of Contents for PIE PIECAL 322

  • Page 1 2.## or below follow the procedure that begins on page 2. If the end panel of the PIECAL 322 or 422 has brass blocks with screws for attaching bare thermocouple wires, a socket for miniature thermocouple connectors, and two sockets for banana jacks and the firmware shown at turn on is 3.## or above follow the procedure that begins on...

  • Page 2: Equipment Needed

    (calibration points labeled J11) located on the right side of the PCB next to the power switch and turn the UUT on to SOURCE. Verify the PIECAL 322 or 422 are in calibration mode indicated by the word “CAL TC” on the LCD. Remove the...
  • Page 3 Quickly move the power switch down to READ without pausing in the off position and make sure the PIECAL 322 or 422 are in calibration mode indicated by the word “CAL” on the LCD. If “CAL” is not displayed follow the steps in Enabling Calibration but move the power switch to READ.

  • Page 4: Cold Junction Calibration

    Repeat steps 4-7 if necessary. Completion of Calibration: Turn the PIECAL 322 or 422 OFF before removing the batteries. Next time the unit is turned on the Model 322 or 422 will be calibrated and in normal operational mode. Reassemble in reverse...
  • Page 5 DOCUMENT PIECAL 322 & 422 82 E Main Sreet Suite 3.14 Webster New York 14580 FIELD Phone: CALIBRATION (585) 872-9350 322-0300 Fax: PROCEDURE (585) 872-2638 Created by: PB-G DATE: 7-22-2014 Sheet 5 of 11 SOURCE SOURCE READ READ READ READ...
  • Page 6 Avoid touching thermocouple connections, as this will cause temperature errors in calibration. It is recommended that the PIECAL 322 or 422 be handled as little as possible during calibration to reduce errors. The heat from your body may cause uneven heating of temperature sensitive components.
  • Page 7 DOCUMENT PIECAL 322 & 422 82 E Main Sreet Suite 3.14 Webster New York 14580 FIELD Phone: CALIBRATION (585) 872-9350 322-0300 Fax: PROCEDURE (585) 872-2638 Created by: PB-G DATE: 7-22-2014 Sheet 7 of 11 This is the SOURCE section of the calibration procedure...

  • Page 8: Open Thermocouple

    DOCUMENT PIECAL 322 & 422 82 E Main Sreet Suite 3.14 Webster New York 14580 FIELD Phone: CALIBRATION (585) 872-9350 322-0300 Fax: PROCEDURE (585) 872-2638 Created by: PB-G DATE: 7-22-2014 Sheet 8 of 11 Open Thermocouple Open Thermocouple detection pulse: 1) Connect leads from the UUC mV terminals to a precision 100 Ω...
  • Page 9 DOCUMENT PIECAL 322 & 422 82 E Main Sreet Suite 3.14 Webster New York 14580 FIELD Phone: CALIBRATION (585) 872-9350 322-0300 Fax: PROCEDURE (585) 872-2638 Created by: PB-G DATE: 7-22-2014 Sheet 9 of 11 Read V Read mV Range: 1) Short the mV terminals.
  • Page 10 DOCUMENT PIECAL 322 & 422 82 E Main Sreet Suite 3.14 Webster New York 14580 FIELD Phone: CALIBRATION (585) 872-9350 322-0300 Fax: PROCEDURE (585) 872-2638 Created by: PB-G DATE: 7-22-2014 Sheet 10 of 11 Thermocouple Cold Junction Temperature & LCD Contrast Important! The cold junction sensor is a NIST traceable thermistor that is accurate to ±0.05°C...
  • Page 11 DOCUMENT PIECAL 322 & 422 82 E Main Sreet Suite 3.14 Webster New York 14580 FIELD Phone: CALIBRATION (585) 872-9350 322-0300 Fax: PROCEDURE (585) 872-2638 Created by: PB-G DATE: 7-22-2014 Sheet 11 of 11 Completion of Calibration Turn the UUC OFF and Move DIP switch 2 (the switch on the right) down toward the batteries (OFF).
