Panel mounted multifunction process calibrator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Practical Instrument Electronics
Tel: 585.872.9350 • Fax: 585.872.2638 • sales@piecal.com • www.piecal.com
Copyright © 2018 All rights reserved • 820PM-9002 - Rev A 19 June 2018
PIE 820PM
PIE 820PM
Panel Mounted
Panel Mounted
Multifunction Process Calibrator
Multifunction Process Calibrator
mA • V • TC • Ω • RTD • Hz
mA • V • TC • Ω • RTD • Hz

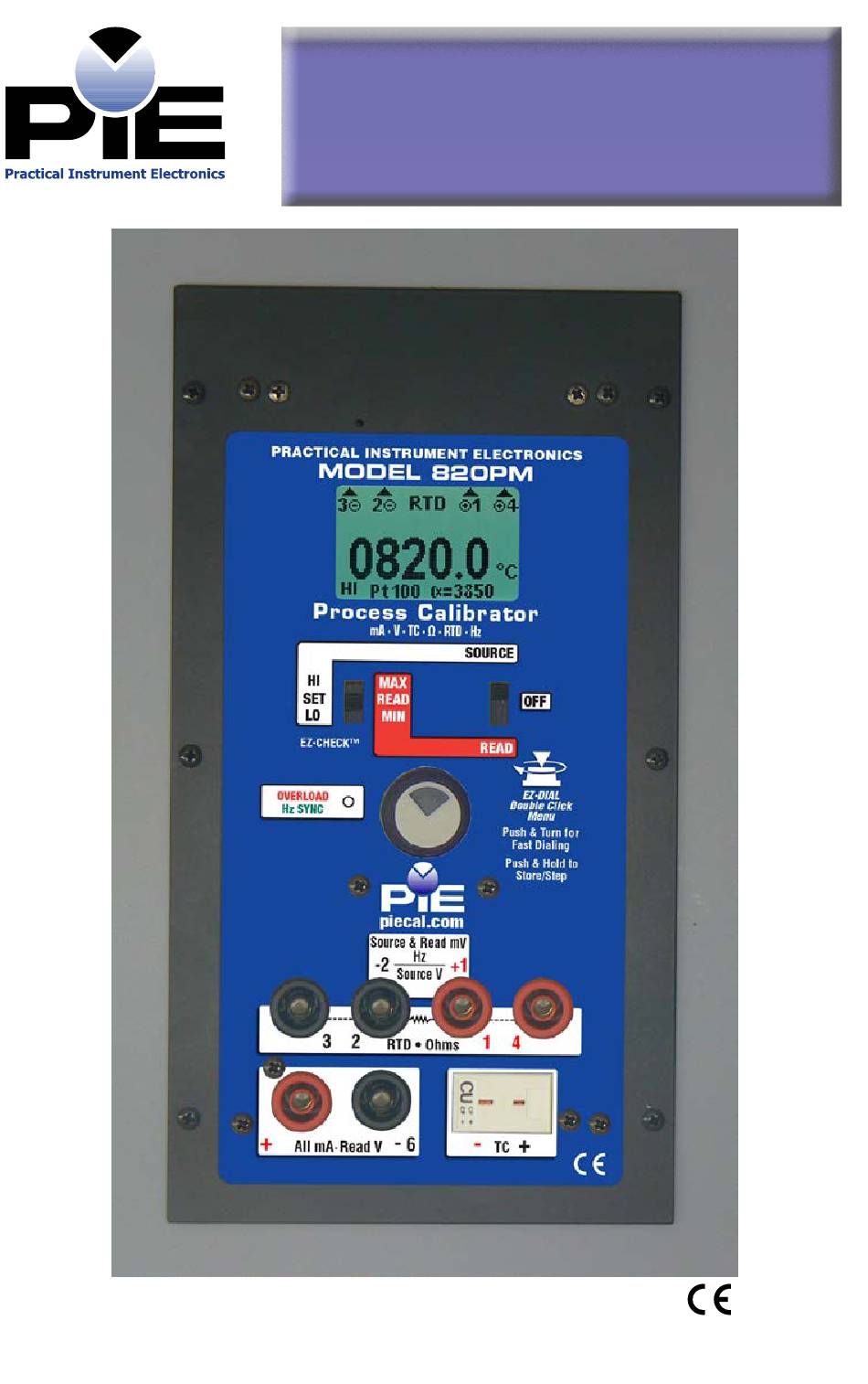

Operating Instructions
Operating Instructions
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 820PM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PIE 820PM

Summary of Contents for PIE 820PM

  • Page 1 • V • TC • Ω • RTD • Hz Operating Instructions Operating Instructions Practical Instrument Electronics Tel: 585.872.9350 • Fax: 585.872.2638 • sales@piecal.com • www.piecal.com Copyright © 2018 All rights reserved • 820PM-9002 - Rev A 19 June 2018 Page 1...

  • Page 2: Table Of Contents

    Contents Basic Operation Switches & Knobs ................4 Connections..................4 MAIN Menus - Functions, Units & Ranges ........5 FEATURE Menu - Stepping & Ramping / Auto Off / Backlight ..6 Storing EZ-CHECK Outputs & Automatic Stepping ....... 7 Functions and Hookup Diagrams Milliamp Source mA, Simulate 2 Wire Transmitters ........
  • Page 3 Stop carrying around a millivolt source and thermocouple tables. The PIE 820PM works with the thermocouples you use including types J, T, E, K, R, S, B, N, G, C, D, L (J-DIN), U (T-DIN) and Platinel II. Pt 100 Ohm (3850, 3902, 3916, 3926) &...

  • Page 4: Basic Operation

    Auto Stepping. change the function of the calibrator READ: Slide the switch to the SET position. and to select ranges, units and other The 820PM will display the current input user settings. value. Slide the switch to HI and the highest value measured since turn-on or reset will be displayed;...

  • Page 5: Source Ma, Simulate 2 Wire Transmitters

    Configuration Double Click Menus Double click the EZ-DIAL knob to access the Double Click Menus to select each function and the options for each function. Available choices are shown in grey. Source mA & Simulate 2 Wire Source & Read Thermocouples Transmitters >...
  • Page 6 Configuration Double Click Menu - STEPPING, AUTO OFF & BACKLIGHT STEPS/RAMP - pressing the knob will cycle To change the Automatic Stepping settings through 2, 3, 5, 11 and RAMP. The endpoints of Double click the DIAL KNOB at any time the the steps or ramp are based on the values unit is on and the following typical display (will stored in the HI and LO EZ-CHECK outputs.
  • Page 7 Storing EZ-CHECK Outputs STORING HI and LO EZ-CHECK Outputs Choose this function to provide a simulated thermocouple signal into controllers, temperature transmitters, indicators or any other input device that measure thermocouple sensors. 1) Store your high (SPAN) output temperature by moving the EZ-CHECK switch to the HI position and turn the EZ-Dial knob until the desired temperature is on the display.
  • Page 8 SOURCE for the MODE. Choose either mA or % and whether you need the 250Ω HART resistor active in the loop. Connect the output leads of the PIE 820PM to the inputs of the device being calibrated, making sure to check polarity. Red lead from jack (5) to the plus (+) input and black lead from jack (6) to the minus (-) input.

  • Page 9: Milliamp

    SIM for the MODE. Choose either mA or % and whether you need the 250Ω HART resistor active in the loop. Connect the output leads of the PIE 820PM to the inputs of the device being calibrated, making sure to check polarity. Red lead from jack (5) to the plus (+) input and black lead from jack (6) to the minus (-) input.

  • Page 10: Milliamp

    MODE. Choose either mA or % and whether you need the 250Ω HART resistor active in the loop. Connect the red input lead from jack (5) of the PIE 820PM to the more positive point of the break and the black input lead from jack (6) to the more negative point.
  • Page 11 Disconnect one or both input wires from the device to be calibrated. Connect the red source lead of the PIE 820PM from jack (5) to the plus (+) input of the device and the black source lead from jack (6) to the minus (-).
  • Page 12 Select V for the FUNCTION and 10V or 80 mV for the RANGE. Connect the output leads of the PIE 820PM to the inputs of the device being calibrated, making sure to check polarity. Connect the Red lead from jack (1) to the plus (+) input and black lead from jack (2) to the minus (-) input.
  • Page 13 Select V for the FUNCTION and 10V, 60V or 80 mV for the RANGE. Connect the red input lead (+) of the PIE 820PM to the more positive point of the break and the black input to the more negative point. When measuring up to 80 mV connect the red lead to jack (1) and the black lead to jack (2).

  • Page 14: Thermocouple

    UNITS, T/C Type (J, K, T, E, R, S, B, N, G, C, D, L (J-DIN), U (T-DIN) or P (Platinel II) and internal COLD JUNC ON or OFF (ON is the default). Connect the PIE 820PM to the inputs of the device being calibrated using the proper type of thermocouple wire via the miniature thermocouple socket.
  • Page 15 UNITS, T/C Type (J, K, T, E, R, S, B, N, G, C, D, L (J-DIN), U (T-DIN) or P (Platinel II) and COLD JUNC ON or OFF (ON is the default). Connect the PIE 820PM to the inputs of the device being calibrated using the proper type of thermocouple wire via the miniature thermocouple socket. If no sensor is connected, a wire is broken or the sensor is burned out, OPEN TC will appear on the display.

  • Page 16: Resistance

    Disconnect all sensor wires from the devices to be calibrated and connect the PIE 820PM to the inputs of the device using 2, 3 or 4 wires. For 2 Wire resistacne connect the read lead into jack (1) and the black lead into jack (2). For 3 wire resistance add a black lead plugged into jack (3) and for 4 wire resistance add a red lead plugged into jack (4).
  • Page 17 2W, 3W or 4W to match the 2, 3 or 4 wires being used to measure resistance. For continuity the only choice is 2W. Disconnect all wires from the sensor and connect the PIE 820PM to the inputs of the device using 2, 3 or 4 wires.
  • Page 18 Disconnect all sensor wires from the devices to be calibrated and connect the PIE 820PM to the inputs of the device using 2, 3 or 4 wires. For 2 Wire RTDs connect the red lead into jack (1) and the black lead into jack (2). For 3 wire RTDs add a black lead plugged into jack (3) and for 4 wire RTDs add a red lead plugged into jack (4).
  • Page 19 2, 3 or 4 wires on the RTD sensor. Disconnect all wires from the sensor and connect the PIE 820PM to the inputs of the device using 2, 3 or 4 wires. For 2 Wire RTDs connect the read lead into jack (1) and the black lead into jack (2).

  • Page 20: Frequency

    Disconnect all input wires from the devices to be calibrated and connect the PIE 820PM to the input of the device matching polarity. Connect the Red lead from jack (1) to the plus (+) input and black lead from jack (2) to the minus (-) input.

  • Page 21: Frequency

    Disconnect all input wires from the devices to be calibrated and connect the PIE 820PM to the output of the device matching polarity. 820PM to the input of the device matching polarity. Connect the Red lead from jack (1) to the plus (+) input and black lead from jack (2) to the minus (-) input.
  • Page 22 Claims under warranty can be made by returning the equipment prepaid to our factory. The equipment will be repaired, replaced or adjusted at our option. The liability of Practical Instrument Electronics (PIE) is restricted to that given under our warranty. No responsibility is accepted for damage, loss or other expense incurred through sale or use of our equipment.

  • Page 23: Accessories

    INCLUDED AC Adaptor (Part No. 020-0101 for 100 to 120V, 020-0100 for 220/230V ac), Certificate of Calibration, Six (6) Mounting Screws PIE Multifunction Wire Kit Part No. 020-0820 1 Red & 1 Black Lead with Banana Plug & Alligator Clips 2 Red &...

  • Page 24: Specifications

    Specifications DC Voltage Read Range and Accuracy 0.00 to 80.00 mV, ≤ ±(0.03% of Full Scale) 0 to 10.25 V, ≤ ±(0.03% of FS + 0.005V) 0.0 to 60.0 V, ≤ ±(0.03% of FS + 0.05V) Accuracy ≤ ± 0.03 % of Full Scale Input resistance ≥...
  • Page 25 Specifications RTD and OHMS Source Accuracy From 1 to 10.2 mA ±(0.03% of Full Scale + 0.075 Ohms) External Excitation Current 0.025 mV Below 1 mA of External ±(0.03% of Full Scale+0.075 Ohms + mA Excitation Current Excitation Current Resistance Ranges 0.0 to 401.0, 0 to 4010 Ohms Allowable Excitation Current Range <401 Ohm:10.2 mA max;...

  • Page 26: Thermocouple Ranges & Accuracies

    Thermocouple Ranges & Accuracies ≤ ± (0.03 % of 80 mV) Table based on Note: Doesn’t include cold junction error of ±0.1°C Degrees C Accuracy Degrees F Accuracy ISA/ANSI Type Range °C Range °F Material Color -200.0 to -150.0 ±1.2° -328.0 to -238.0 ±2.0°...

  • Page 27: Thermocouple Ranges & Accuracies

    Thermocouple Ranges & Accuracies ≤ ± (0.03 % of 80 mV) Table based on Note: Doesn’t include cold junction error of ±0.1°C Degrees C Accuracy Degrees F Accuracy ISA/ANSI Type Range °C Range °F Material Color -230.0 to 0.0 ±4.2° -382.0 to 32.0 ±7.5°...

  • Page 28: Rtd Ranges & Accuracies

    RTD Ranges & Accuracies Based on ±(0.03% of 400Ω) / Pt 1000Ω Based on ±(0.03% of 4000Ω) Degrees C Degrees F Type Range °C Range °F Pt 100 Ohm -200.0 to 120.0 ±0.5° -328.0 to 248.0 ±0.9° DIN/IEC/JIS 1989 120.0 to 430.0 ±0.6°...

  • Page 29: Panel Cutout Dimensions

    Panel Cutout Dimensions Bezel Cutout 0.125” Dia (x6) 0.196” 0.35” 4.40” 4.554” 4.75” Practical Instrument Electronics Tel: 585.872.9350 • Fax: 585.872.2638 • sales@piecal.com • www.piecal.com Page 29...
  • Page 30 820PM mounted in a panel Practical Instrument Electronics Tel: 585.872.9350 • Fax: 585.872.2638 • sales@piecal.com • www.piecal.com Page 30...

  • Page 31: Mounted In Panel

    Mounted in Panel Rear view of 820PM mounted in a panel with AC Adapter Practical Instrument Electronics Tel: 585.872.9350 • Fax: 585.872.2638 • sales@piecal.com • www.piecal.com Page 31...
  • Page 32 Practical Instrument Electronics Tel: 585.872.9350 • Fax: 585.872.2638 • sales@piecal.com • www.piecal.com Page 32...

Table of Contents
