Frequency calibrator with totalizer

Advertisement

Practical Instrument Electronics
A.
1
EZ-Check™ Switch/EZ-Step™ Pushbutton
Slide the switch to select the user stored
values for calibration points.
Push the EZ-Step™ pushbutton like a stop
Watch to Run or Stop Totalizing.
2
SOURCE/AMPLITUDE Button
Press and release SOURCE/AMPLITUDE
to change source modes. These are:
Source CPH 1 - 20000
Source CPM 0.1 – 2000.0
Source HZ 0.01 – 200.00
Source HZ 0.1 – 2000.0
Source KHZ 0.001 – 20.000
Totalizer
Press and hold SOURCE/AMPLITUDE to
change amplitude voltage from 0.1-12Vp.
Then press the SOURCE/AMPLITUDE or
STORE/CLEAR button to save selections and
to exit.
841 Holt Road #1 • Webster, NY 14580
Practical Instrument Electronics, Inc. Copyright  2003. All rights reserved.
I-1245

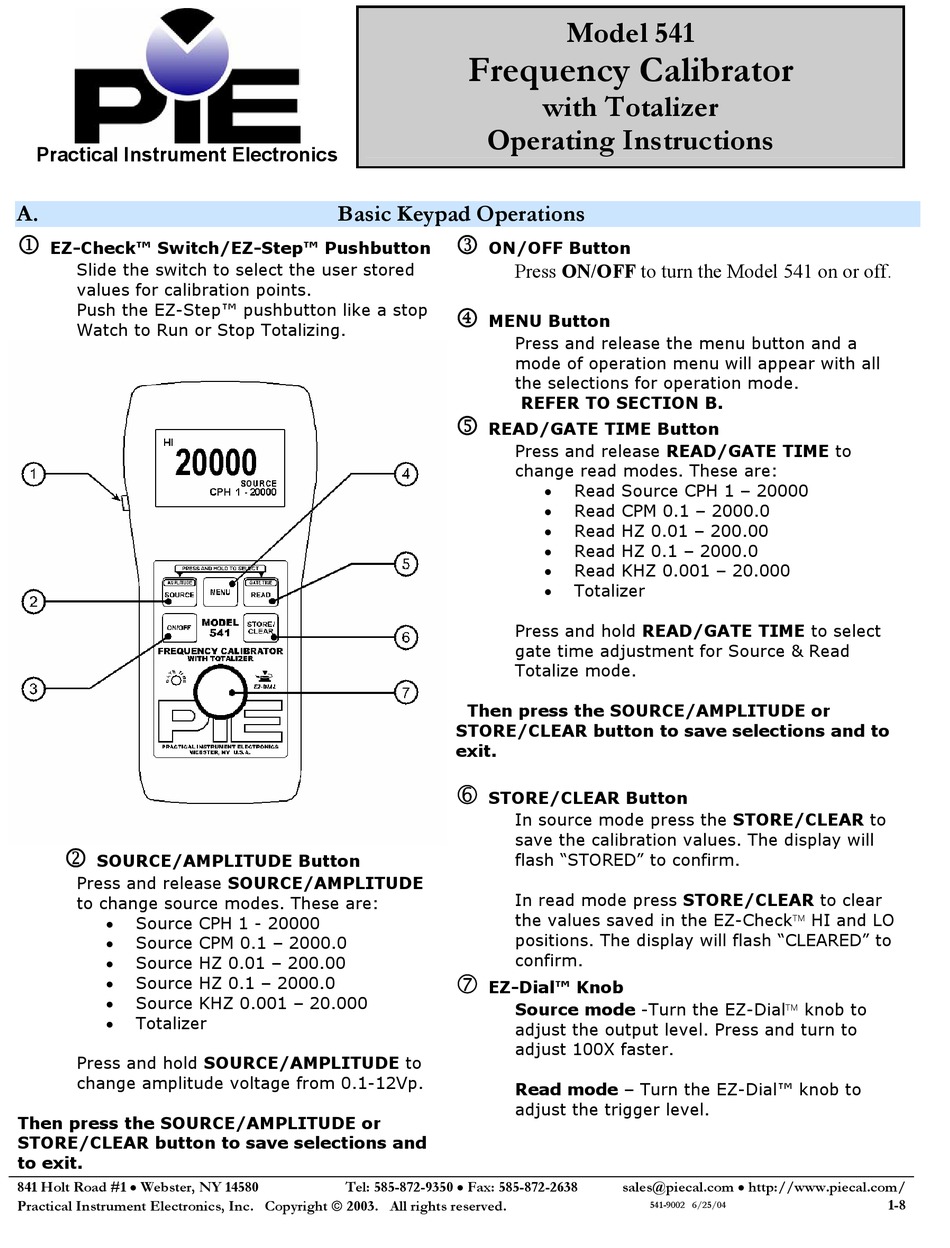

Basic Keypad Operations
Tel: 585-872-9350 • Fax: 585-872-2638
Model 541
Frequency Calibrator
with Totalizer

Operating Instructions

3
ON/OFF Button
Press ON/OFF to turn the Model 541 on or off.
4
MENU Button
Press and release the menu button and a
mode of operation menu will appear with all
the selections for operation mode.
REFER TO SECTION B.
5
READ/GATE TIME Button
Press and release READ/GATE TIME to
change read modes. These are:
Read Source CPH 1 – 20000
Read CPM 0.1 – 2000.0
Read HZ 0.01 – 200.00
Read HZ 0.1 – 2000.0
Read KHZ 0.001 – 20.000
Totalizer
Press and hold READ/GATE TIME to select
gate time adjustment for Source & Read
Totalize mode.
Then press the SOURCE/AMPLITUDE or
STORE/CLEAR button to save selections and to
exit.
STORE/CLEAR Button
In source mode press the STORE/CLEAR to
save the calibration values. The display will
flash "STORED" to confirm.
In read mode press STORE/CLEAR to clear
the values saved in the EZ-Check HI and LO
positions. The display will flash "CLEARED" to
confirm.
EZ-Dial™ Knob
Source mode -Turn the EZ-Dial knob to
adjust the output level. Press and turn to
adjust 100X faster.
Read mode – Turn the EZ-Dial™ knob to
adjust the trigger level.
sales@piecal.com • http://www.piecal.com/
541-9002 6/25/04
1-8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 541 and is the answer not in the manual?

Questions and answers

Summary of Contents for PIE 541

  • Page 1: Operating Instructions

    Basic Keypad Operations EZ-Check™ Switch/EZ-Step™ Pushbutton ON/OFF Button Slide the switch to select the user stored Press ON/OFF to turn the Model 541 on or off. values for calibration points. Push the EZ-Step™ pushbutton like a stop MENU Button Watch to Run or Stop Totalizing.
  • Page 2 Model 541 Operating Instructions Model 541 Configuration Press the MENU BUTTON on the Model 541 after you turn the unit on to access the configuration mode. Turn the EZ-Dial Knob to select configuration items. Press the EZ-Dial Knob to change configuration items.
  • Page 3 Hint: For faster calibrations, the position of the switch can be felt. This feature allows continuous monitoring of the device being calibrated without looking back at the Model 541 display. This is also useful in poor lighting or under difficult operating conditions.
  • Page 4 FUNCTION OF THE GREEN LED The Model 541 is equipped with a GREEN LED light. It is being used in the Read mode to let the user know that their signal is being detected by the calibrator when the LED is flashing. If the LED is not lit, the user must adjust the trigger level.
  • Page 5 Model 541 Operating Instructions TOTALIZE CONNECTIONS Connect the Model 541 to the output of the equipment or sensor to be measured and push the EZ-Step pushbutton like a stop watch to run or stop Totalizing. The words RUN or STOP will appear on the LCD display.
  • Page 6: Specifications

    Model 541 Operating Instructions Specifications General Specifications:(Unless otherwise indicated all specifications are rated from a nominal 23 °C, 70 % RH for 1 year from calibration) Operating Temperature Range -20 to 60 °C (-5 to 140 °F) Storage Temperature Range -30 to 60 °C (-22 to 140 °F)
  • Page 7 Test data available upon request at additional charge. Available Options: Option: Part Number: Model 541 BNC With a BNC connector ADDED CHARGE OF $50.00 to the list of the 541 Carrying Case 020-0200 Other Products Available: RTD Source (Single Type/1° resolution) Model 510 RTD Source (7 Types, Ω/0.1°...
  • Page 8 Claims under guarantee can be made by returning the equipment prepaid to our factory. The equipment will be repaired, replaced or adjusted at our option. The liability of Practical Instrument Electronics (PIE) is restricted to that given under our guarantee.
