Get more tools
in a smaller calibrator
Carry eight single function calibrators
plus
a 4-20/10-50 milliamp calibrator with loop supply
plus
a loop troubleshooter in the palm of your hand!
Milliamp • Voltage • Frequency • pH
Ohms • Thermocouples • RTDs • Pressure
Loop Diagnostics • Transmitter Supply
10-50 mA Multifunction Calibrator
with troubleshooting tools
1
Detect 'hidden' loop problems
Quickly diagnose troublesome ground faults & current leakage
with patented Loop Diagnostic technology. These problems are
undetectable with other instruments!
2
Check all loop parameters at once with the LoopScope™
Simultaneously displays current, voltage and resistance to let
you know the condition of a live loop. Finds problems with power
supplies & loops with too many loads. Patented by PIE!
3
Troubleshoot wiring problems without a multimeter
Built in continuity checker with 'beeper' quickly finds broken wires
or shorts in instrumentation wiring. Also handy for checking
operation of relays and controller outputs.

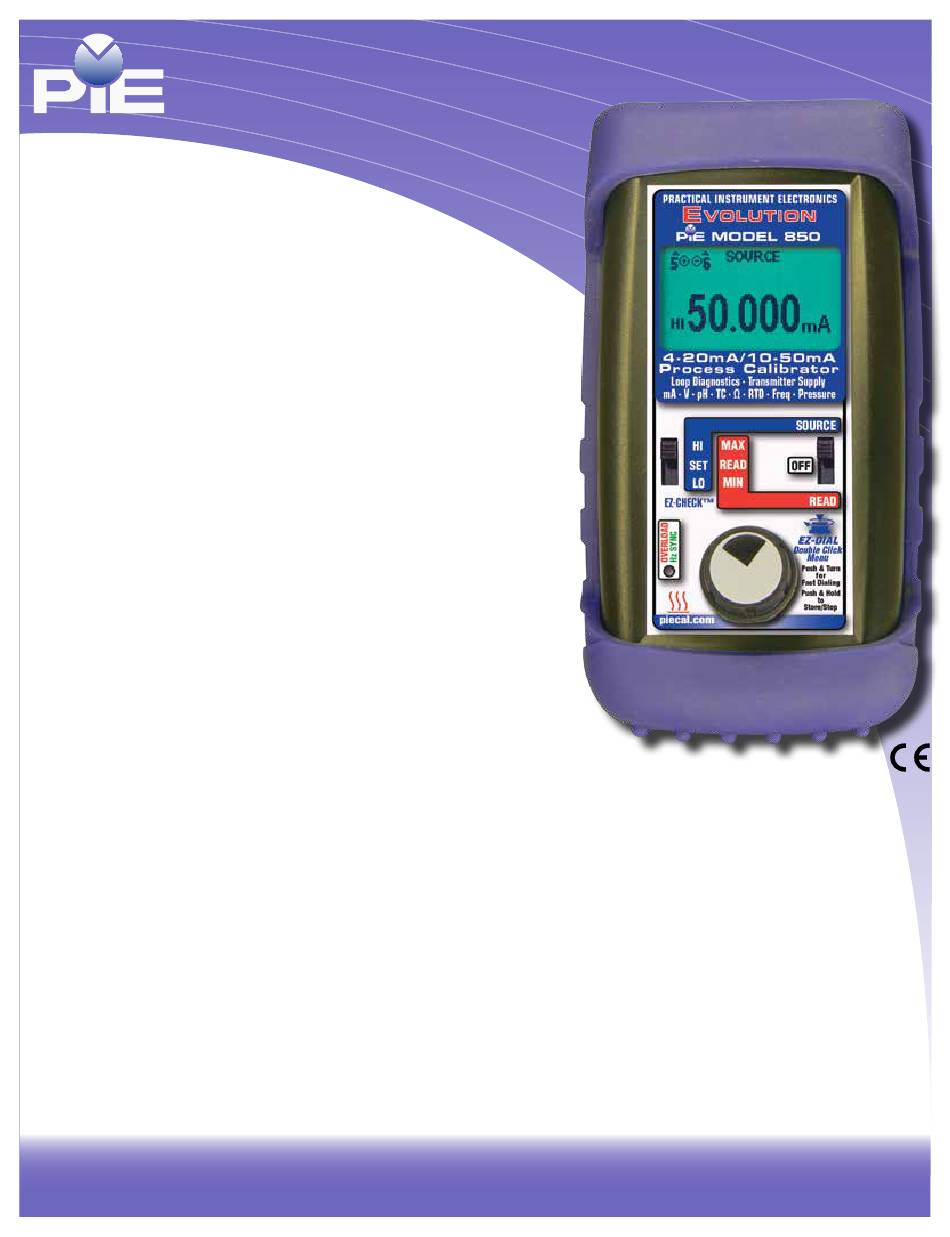

The PIE Model 850 is more than a multifunction calibrator. It is also a loop
detective that is able to diagnose common problems that other test equipment just can't find. Have a flooded junction
box or unknown ground faults? Our Loop Diagnostic technology will detect it. Or use the LoopScope to see at a
glance all the parameters - milliamps, voltage and resistance - in the loop.
Become a troubleshooting technician with Patented Diagnostic Technology - Available only with PIE Calibrators!
82 E. Main Street Suite 3.14 • Webster, NY 14580 Tel: 585.872.9350 • Fax: 585.872.2638 • sales@piecal.com • www.piecal.com
P
I
ractical
nstrument
Process Calibrator
Actual Size
E
lectronics
PIE 850
Advertisement
Related Manuals for PIE 850
Summary of Contents for PIE 850
- Page 1 Actual Size The PIE Model 850 is more than a multifunction calibrator. It is also a loop detective that is able to diagnose common problems that other test equipment just can’t find. Have a flooded junction box or unknown ground faults? Our Loop Diagnostic technology will detect it.
- Page 2 Intuitive EZ-DIAL Double Click Menu makes it easier to setup than other multifunction calibrators. As easy to use as single function PIE Calibrators. Turn on the backlight to easily see the display in dark areas of the plant. Connections diagrams are indicated on the display for each function along with a labeled connector and a help chart behind the tilt stand.
- Page 3 Frequency Calibrator • Calibrate flow meters and frequency instruments • Checkout optical pickups The 850 has a green LED that flashes in sync with the Generate zero crossing square output frequency. Select a frequency and hold the waves to check, calibrate and calibrator up to the optical sensor.
- Page 4 If you have some loops that are erratic after it rains there may be moisture present in a junction box or where insulation has broken down. Turn on Ground Leak Detection and use the PIE 850 to power up the loop. Any current that isn’t controlled by the transmitter or other current control element will be indicated as leakage on the PIE 850 display.
- Page 5 Become a Loop Detective - Locate hidden loop problems with LoopScope When you need to find out why a loop is out of control and all the wiring seems to be in order turn on the 850’s LoopScope and simultaneously see all the parameters of the loop. The LoopScope simultaneously displays the current, DC voltage and total resistance in the loop.
-
Page 6: Ordering Information
Ordering Information Description Part No PIE Model 850 Process Calibrator ............. PIE Model 850 Included: Four “AA” Lithium Ion batteries, Certificate of Calibration with Test Data Blue Rubber Boot ....................020-0213 Evolution Hands Free Carrying Case ..............020-0211 Evolution mA/V Test Leads ................. 020-0207 1 Red &... -
Page 7: Engineering Units
PSI • inches, feet, mm, cm and meter of H2O @ 4°C, 20°C & 60°F • inches, meter, cm and mm of Hg @ 0°C; torr • kg/cm2 • kg/m2 • Pa • hPa • kPa • MPa • Bar • mBar • ATM • oz/in2 • lb/ft2 PIE 850 with Pressure Module, Pressure/Vacuum Pump & Hose... - Page 8 Choose from a selection hand pumps, tubing & fittings made in the USA by Ralston Instruments. All pumps have two pressure ports - one port & hose go the PIE pressure module and the other to the pressure input of your instrument.
- Page 9 Hands free carrying case with pockets for the PIE 850 and the Pressure Module. Back of case has zipped pocket for the manual, test leads, hoses & pressure fittings. Hands free carrying case with pockets for the PIE 850 and the Pressure Module.
- Page 10 PIE 850 Specifications (Unless otherwise indicated all specifications are rated from a nominal 23°C, 70% RH for 1 year from calibration) General Source V dc Operating Temperature -20 to 60 °C (-5 to 140 °F) Ranges and Resolution -20.000 to 99.999 mV, -500.00 to 999.99 mV, 0.000 to 10.250V...
-
Page 11: Rtd Ranges & Accuracies
600.0 to 1122.0 ±5.7° +Pt/30Rh -Pt/6Rh 550.0 to 600.0 ±0.3° 1022.0 to 1112.0 ±0.5° 600.0 to 850.0 ±1.7° 1122.0 to 1562.0 ±3.1° 850.0 to 1100.0 ±1.3° 1562.0 to 2012.0 ±2.4° Table based on Thermocouple Accuracy ≤ ± (0.02 % of Reading in mV +0.01 mV) 1100.0 to 1820.0... -
Page 12: Additional Information
Flip out stand for bench use Available From: ractical nstrument lectronics 82 East Main Street Suite 3.14 • Webster, NY 14580 USA Tel: 585.872.9350 • Fax: 585.872.2638 sales@piecal.com • www.piecal.com Copyright © 2017 All rights reserved 850-9001 Rev C 23 February 2017...
