Control panel

.09
The control panel is used to display and call up the machine functions for setting up and for
sewing operation, for entering parameter values and for reading error messages and service
settings.

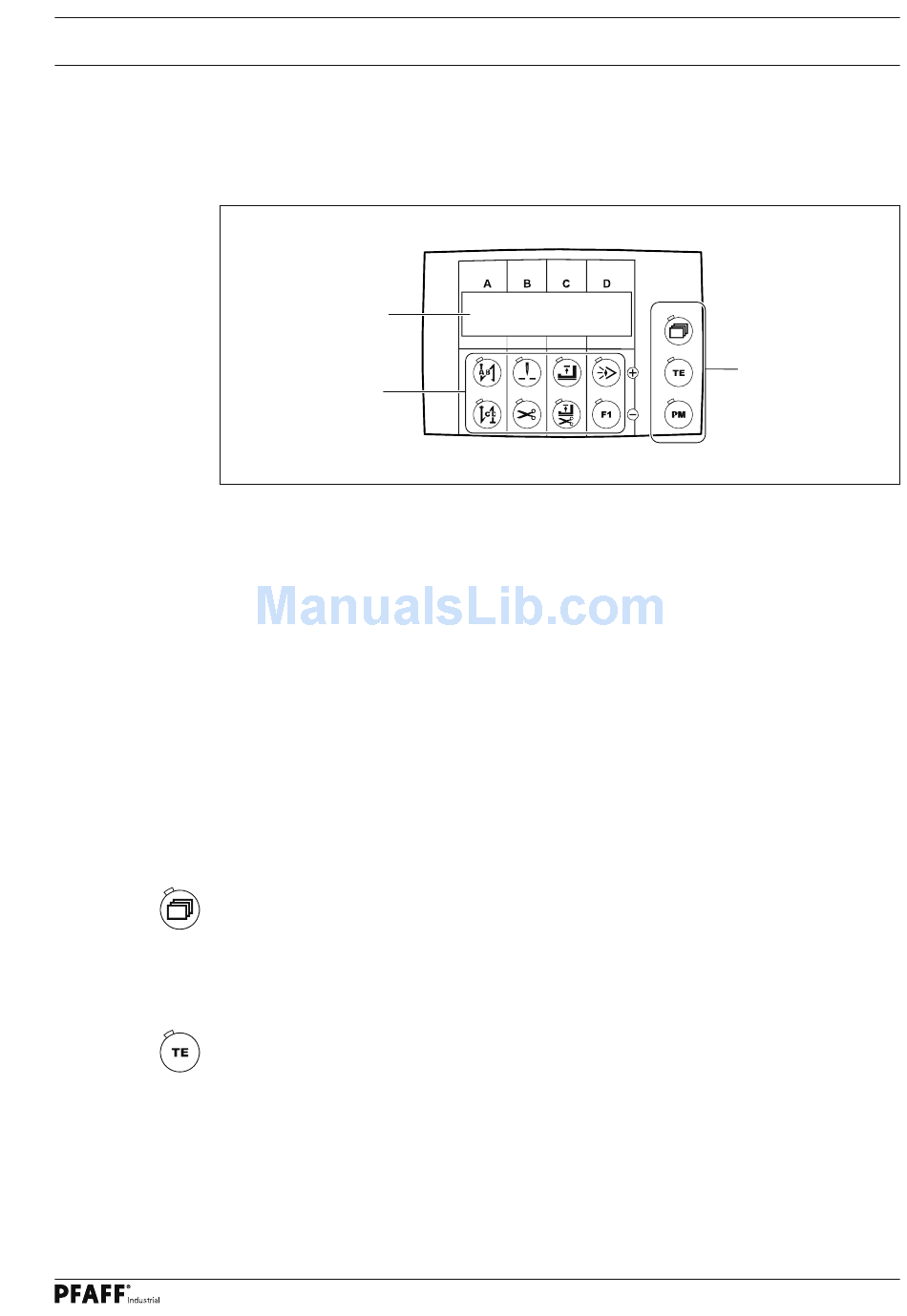

Fig. 6 - 03
The control panel has the following operating and display elements:
● The display 1 consists of a one-line display with an 8-fi gure LCD-matrix and is used to
show appropriate information and selection parameter.
● The selection keys 2 are used to change the screen display, to switch the function keys
and to select the operating mode (manual / programmed sewing).
● The function keys 3 below the display are used to switch the appropriate functions on or
off, depending which key is selected, or to change the values of the appropriate setting
range (A, B, C or D).
7

Selection keys

.09.01
The functions of the selections keys 2 are described in detail below:
Scrolling
● This selection key is used to change between the different menus shown on the display.
The selection of the menu and the setting values shown depend on the selection of the
operating mode, also see Chapter 9.01 Manual sewing or Chapter 9.02 Programmed
sewing.
TE / input
● This selection key is used to switch the function keys 3, also see Chapter 7.09.02 Func-
tion keys:
When this function is switched off (LED off), the appropriate sewing function can be
switched on or off with the function keys 3.
When this function is switched on (LED on), the set values of the appropriate setting
ranges (A, B, C and D) can be altered.
● Error correction can be cancelled by pressing this button, see
Chapter 9.03 Error Messages.
