Preparation

8

Inserting the needle

.01
PFAFF 2571 and 2591
● Raise the roller presser 1 and swing it
● Loosen screw 2 and insert the needle
● Tighten screw 2 and swing roller presser
24
All regulations and instructions in this Instruction Manual are to be observed!
Special attention is to be paid to the safety regulations!
All preparation work is only to be carried out by appropriately trained personnel.
Before all preparation work, the machine is to be separated from the electricity
supply by removing the plug from the mains or switching off the On/Off switch!
1

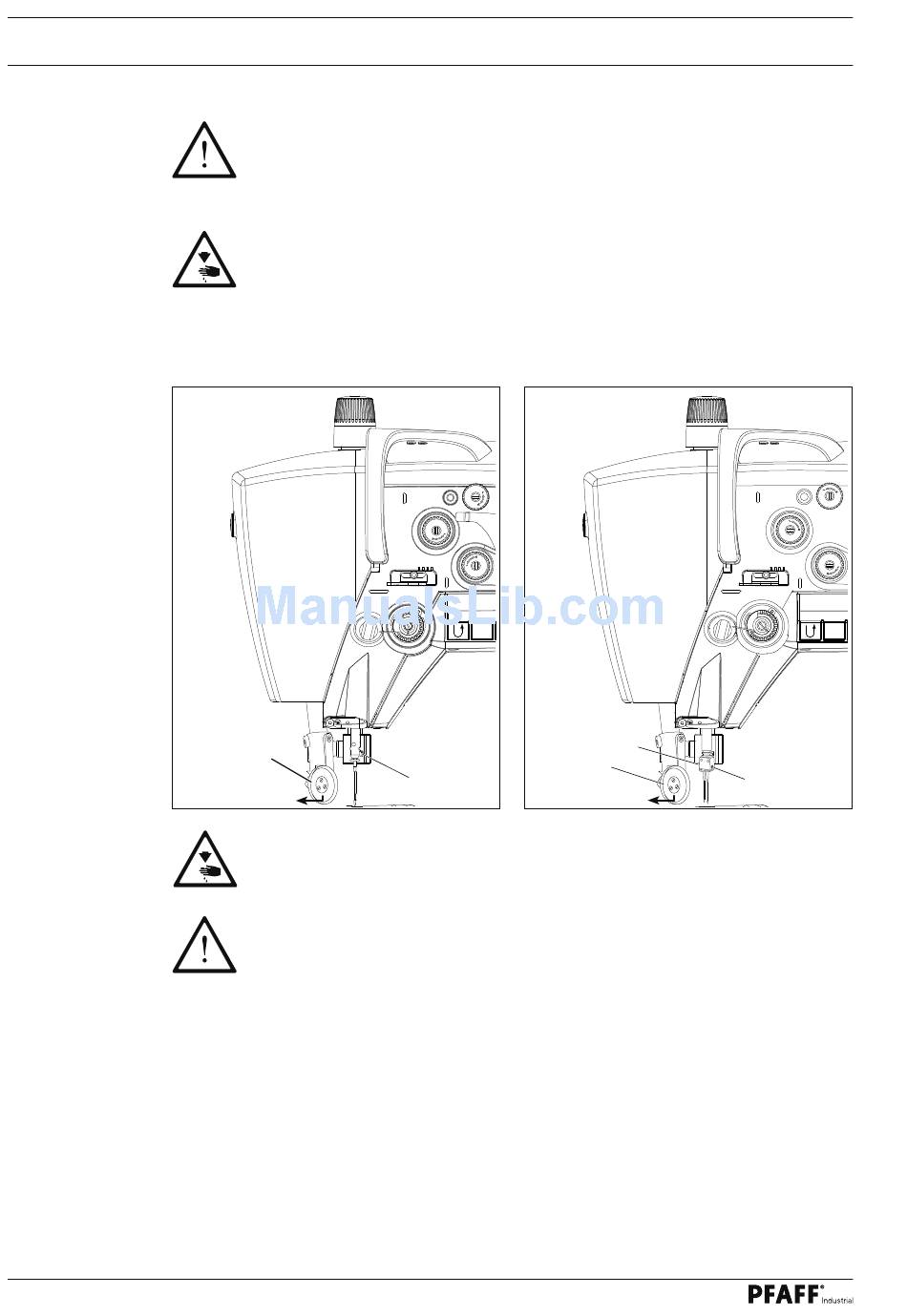

Fig. 8 - 01
Switch off the machine!
Danger of injury due to unintentional starting of the machine!
Only use needles from the system intended for the machine,
see Chapter 3 Specifi cations.
out.
as far as possible. The long groove must
face to the right on model 2571 and to
the left on model 2591.
1 back into position.
2
Fig. 8 - 01a
PFAFF 2574
● Raise the roller presser 1 and swing it
out.
● Loosen screws 2 and insert the needles
so that the long groove of the left needle
is facing right, and that of the right need-
le is facing left.
● Tighten screws 2 and swing roller
presser 1 back into position.
2
1
2
