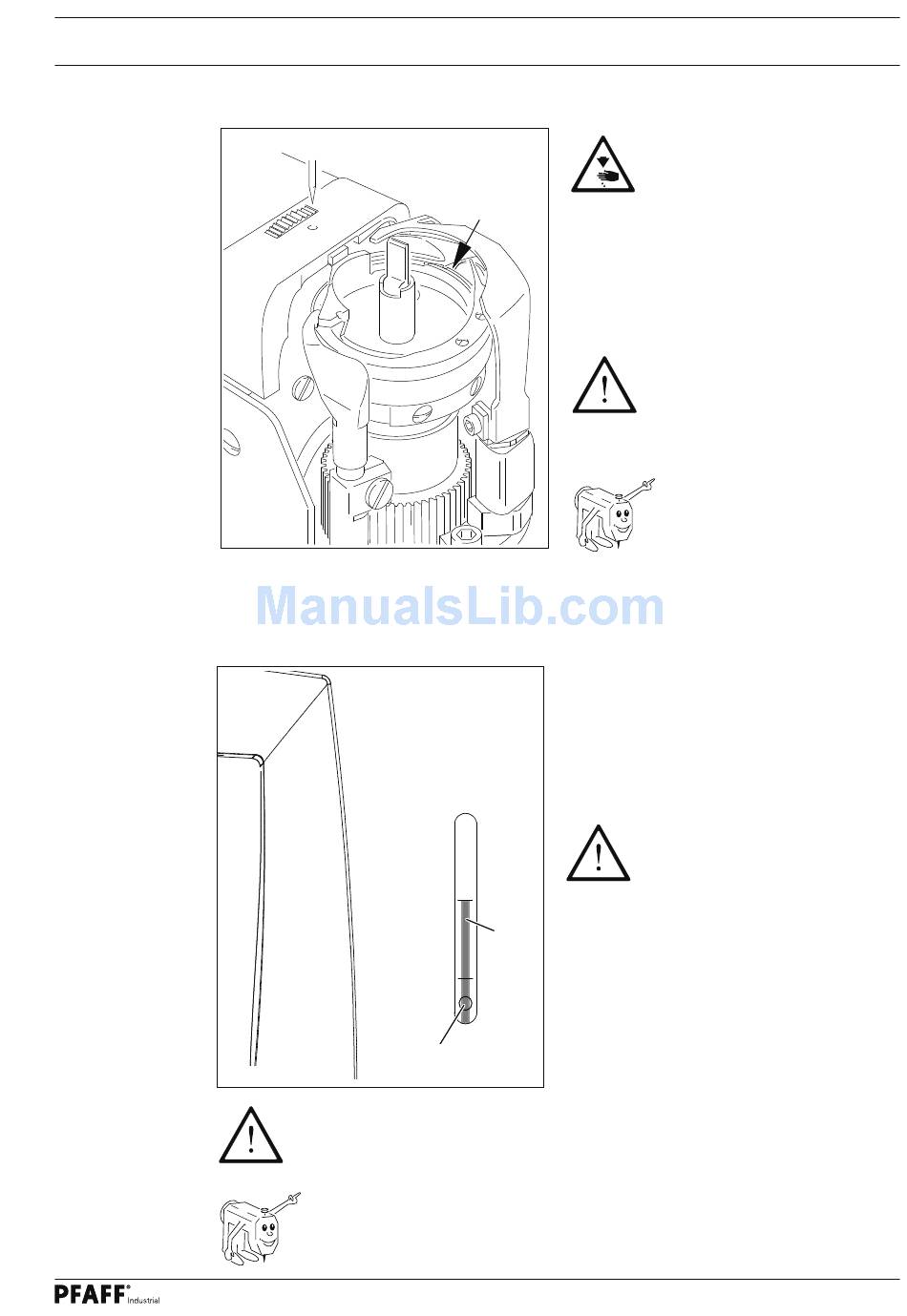

Oiling the hook

.03
Fig. 11 - 03
11

Monitoring the oil level for clamp and head pieces

.04
Fig. 11 - 04
Max
Min
1
Only use oil with a mean viscosity of 22.0 mm²/s at 40ºC and a density of
0.865 g/cm³ at 15ºC.
We recommend PFAFF sewing machine oil, part number 280-1-120 144.
Care and maintenance
Switch the machine off!
Danger of injury if the machine
is started accidentally!
● Before commissioning the machine, and
after long periods out of operation, pour
a few drops of oil into the hook race (see
arrow).
Only use oil with a mean vis-
cosity of 22.0 mm²/s at 40ºC
and a density of 0.865 g/cm³ at
15ºC.
We recommend
PFAFF sewing machine oil,
part number 280-1-120 144.
● Before commissioning the machine,
fi ll in oil through hole 1 until the oil level
indicator 2 is at the "MAX" marking.
● Check the oil level daily before starting
the machine!
The level of the oil in indicator 2
must not sink below the "MIN"
marking and not exceed the
"MAX" marking.
2
● If required, fi ll oil into the tank through
hole 1.
