7

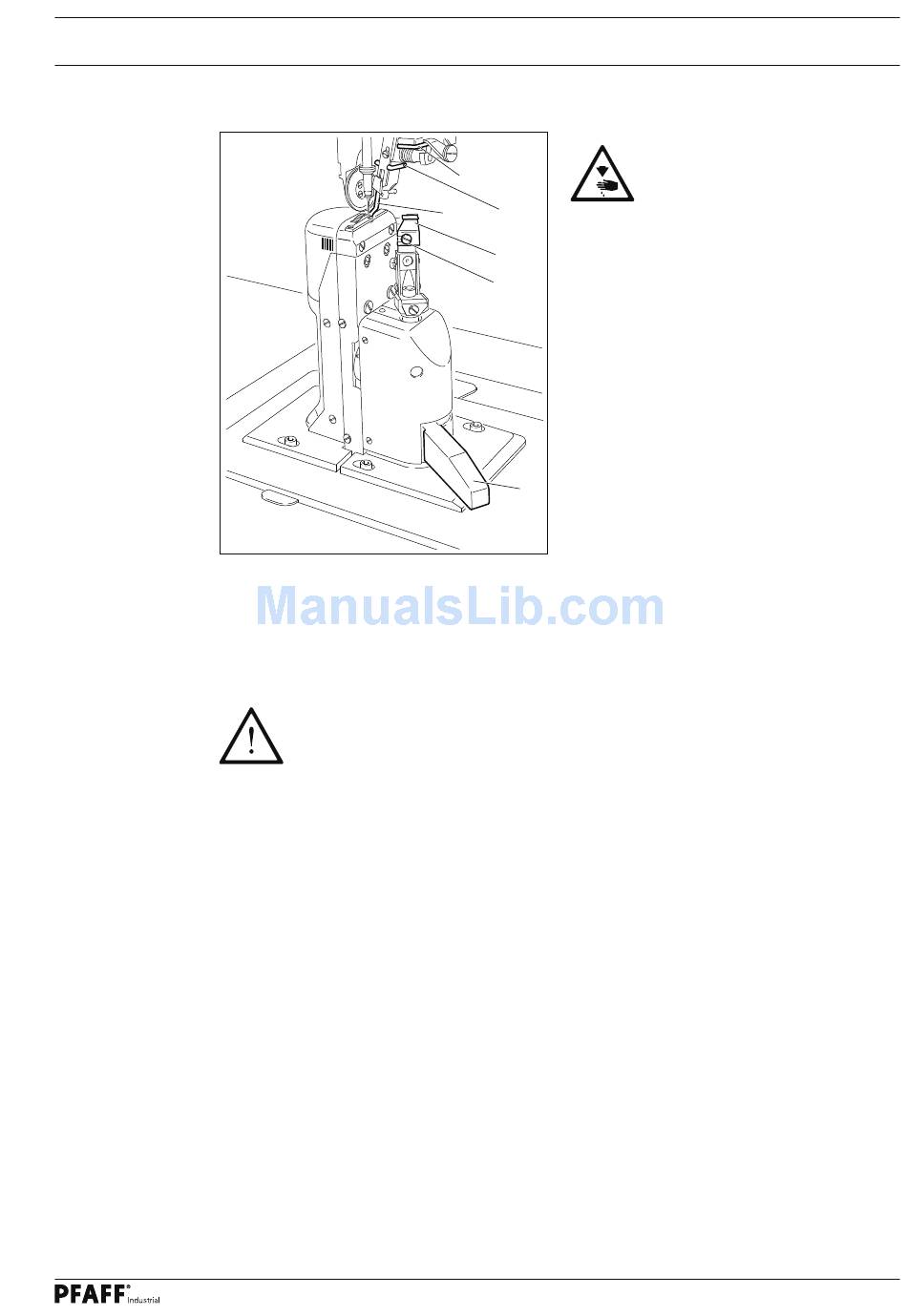

Edge trimmer -725/04 for 2571 ME
.07
Fig. 7 - 07
Changing the knife:
● Switch off the machine.
● Loosen screw 5 and remove knife 6.
● Insert new knife and slightly tighten screw 5.
● Adjust the knife according to Chaper 1.06.05 Cutting stroke and tighten screw 5.
4
2
The following work may only be carried out by technical staff or by
persons who have been properly instructed.
Keep your hands away from the
moving knife! Danger of injury!
3
Switch on knife drive:
● Move lever 1 backwards. The knife
6
moves into operating position.
5
Switch off knife drive:
● Press lever 1. The knife swings back-
wards.
Switch on edge guide:
● Swing edge guide 2 into position by
hand and press lever 3. The edge guide 2
moves into its operating position.
1
Switch off edge guide:
● Raise edge guide 2 and let it click into
position. The edge guide 2 is out of
operation.
● Raise lever 4. The edge guide swings
backwards.
Controls
19
