Aeronaut Pilot Manual page 15

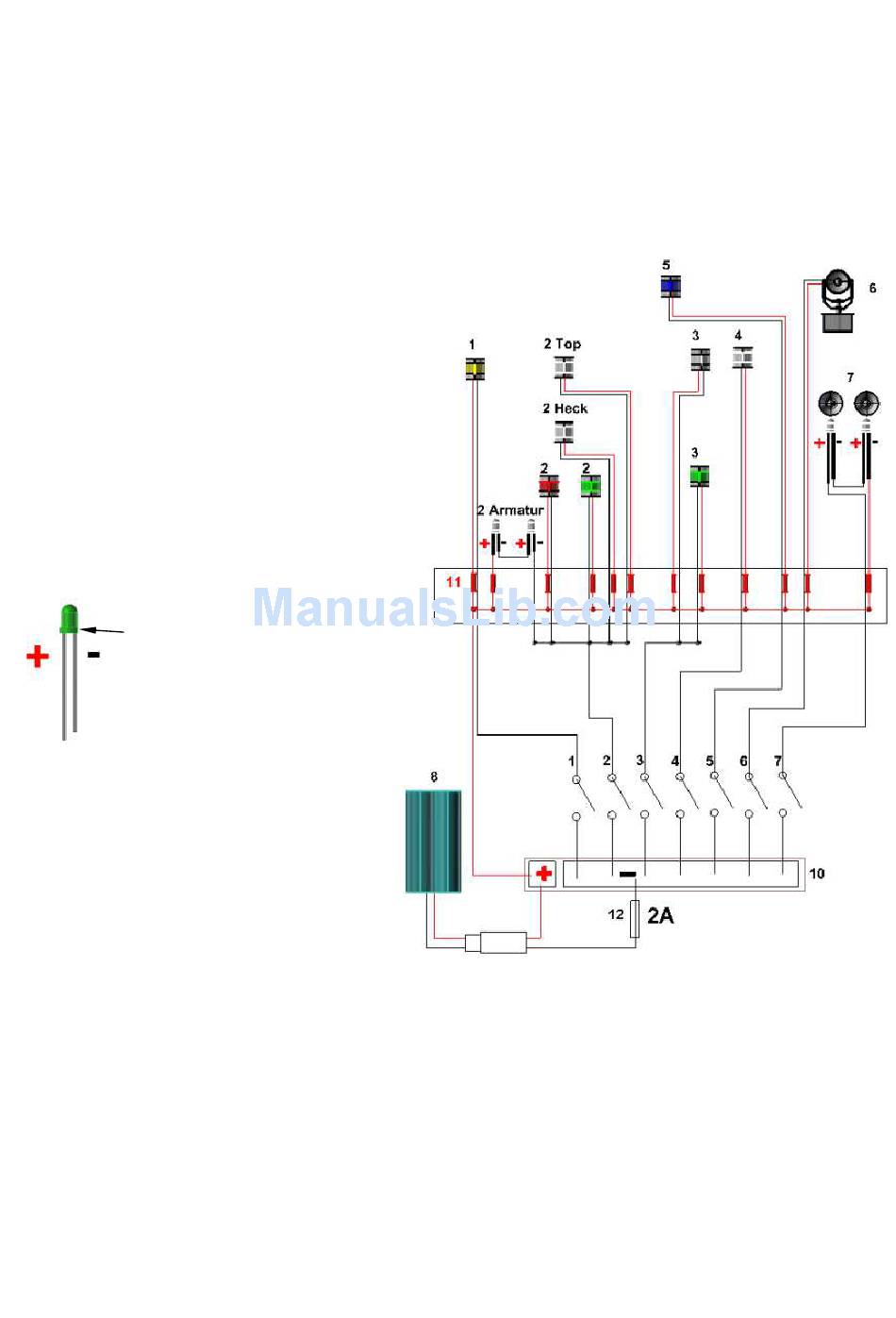

Each LED should be wired individually to a series resistor (see diagram below), as this ensures long, reliable
operation of the LEDs, as well as simplifying the circuit.
Cut down the LED terminal pins to a length of about 8 mm, leaving the longer pin of each pair slightly longer; these
are the positive (+) terminals. Solder the thin braided wire - or, better, lacquered copper wire - to the pins.
Thread the pairs of wires through the holes in the mast, and test each LED separately before soldering the series
resistors in the circuit downstream of the switches. It is advisable to install a fuse rated at max. 2 A in the battery
circuit.
The circuit shown is only a suggestion.
The lighting system components are not included in the kit.
1. Panoramic light, flashing light, yellow
2. Running light
3. Panoramic light, pilot
4. Panoramic light, mooring light
5. Panoramic light, flasher, blue
6. Searchlight
7. Bow searchlight
8. Battery, 4.8 - 6 V
9. Switch
10. Distributor + and –, 11 series resistors
12. Fuse, max. 2 A
flat face
Resistors for coloured LEDs:
6,0V
Blue 120 Ohm
Green 120 Ohm
Red 220 Ohm
Withe 120 Ohm
Yellow 220 Ohm
Resistors for lamps 7 33 Ohm
The seven switches (10) can be replaced by electronic switching modules. This requires no changes to the model's
wiring arrangement.
We wish you many hours of pleasure building the model, and "working the boat on the water" - by day and by night.
The aero-naut Modellbau team
7,4V
220 Ohm
220 Ohm
270 Ohm
220 Ohm
270 Ohm
Masthead
Stern
Instrument
