Building Instructions

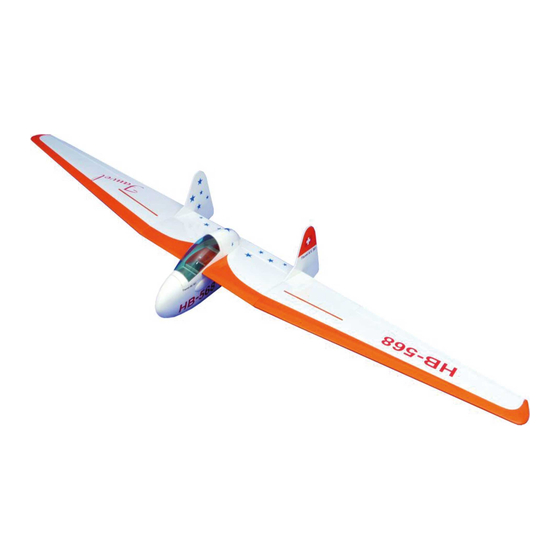

Fauvel AV-361 RC glider
Order No. 1363/00
Specification:
Wingspan:
Length:
Wing area:
Weight, glider:
Wing loading:
Weight, electric glider:
Wing loading:
RC functions:
Recommended power system:
Recommended RC components:
The full-size "Fauvel AV 36" was developed in France in 1951 as a single-seat sailplane, and gained
an excellent reputation even then for its outstanding flying qualities and unprecedented level of in-
herent stability. Distance flights of 500 kilometres were not uncommon. The "AV-361" presented here
in model form was introduced in 1960 as a further development of the "AV-36"; the main differences
were its greater wingspan and improved airfoil.
Fauvel AV-361 building instructions
approx. 3195 mm
approx. 800 mm
approx. 98 sq dm
2700 - 3500 g
27.5 - 36 g / sq dm
3250 - 3800 g
34 - 39 g / sq dm
Aileron
Elevator
Rudder
Airbrake
Aero-tow release (optional)
Throttle (electric version)
"Actro 24-3", 5 - 6S LiPo, 12 x 6.5" propeller
"Actro 24-4", 6S LiPo, 14 x 8" propeller
Four high-quality standard servos
Four wing-mounting servos, max. thickness 13 mm
Receiver, min. six channels
Receiver battery, min. 1200 mAh
Fauvel AV-361
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Fauvel AV-361 RC glider and is the answer not in the manual?

Questions and answers

Related Manuals for Aeronaut Fauvel AV-361 RC glider

Summary of Contents for Aeronaut Fauvel AV-361 RC glider

  • Page 1: Building Instructions

    Fauvel AV-361 Building Instructions Fauvel AV-361 RC glider Order No. 1363/00 Specification: Wingspan: approx. 3195 mm Length: approx. 800 mm Wing area: approx. 98 sq dm Weight, glider: 2700 - 3500 g Wing loading: 27.5 - 36 g / sq dm...
  • Page 2 Fauvel AV-361 Parts List Main fuselage, with plywood formers bonded in Ready made, GRP Fuselage top section, with plywood formers bonded in Ready made, GRP Wing centre section with elevators Ready made wooden structure Canopy Ready made, plastic Outboard wing panels with ailerons and airbrakes Ready made wooden structure Wing centre section with elevators Ready made wooden structure...
  • Page 3 Fauvel AV-361  The aileron servos are side-mounted, and fixed to the servo well covers using screws and / or glue. You may need a few small pieces of scrap wood from your scrap box to retain them. Each well cover is then fixed to the wing using four wood-screws. ...

  • Page 4: Final Work

    Fauvel AV-361 be located 90 mm aft of the main former, directly below the wing leading edge. The centre- line of the rear cross-piece should be installed in the fuselage at a point 340 mm aft of the main former. You will need to round off the edges of the cross-pieces to maximise the joint surfaces.
  • Page 5 Fauvel AV-361 tems. The equipment must be registered with the German Federal Telecommunications Office (BABT).  Your model should only be flown at sites where you will not annoy or endanger anyone; it is always best to use approved model flying sites. ...
